3/4"-10 Dome Head Plow Bolt - Plain Grade 8 Steel
Diameter - Thread Pitch: 3/4"-10
- Square section grips into the part being fixed
- Preventing the bolt from turning when the nut is tightened
- Commonly used in heavy duty equipment to provide a smooth head surface
- Known for attaching the cutting edge of a plow to the plow blade, such as on a snowplow, grader, or bulldozer

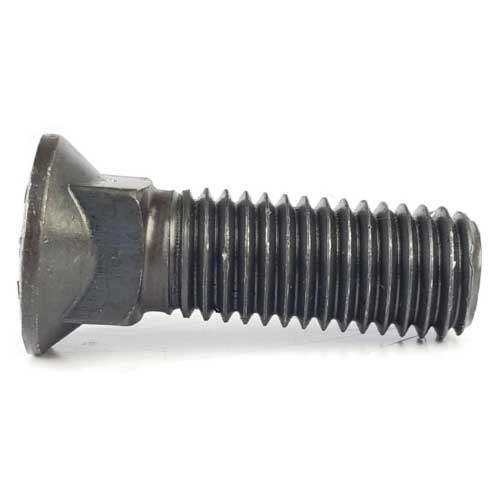

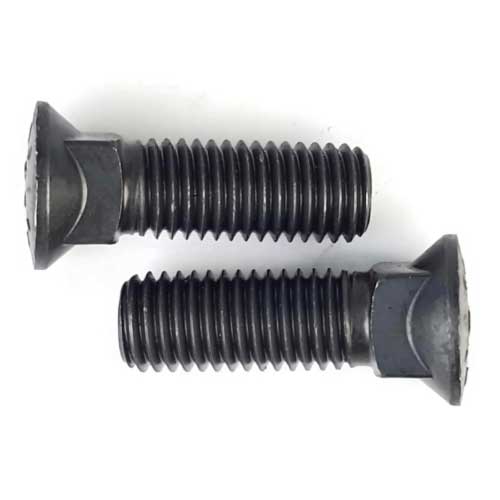

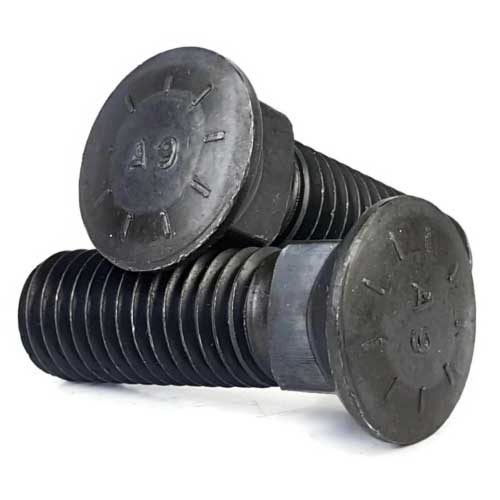

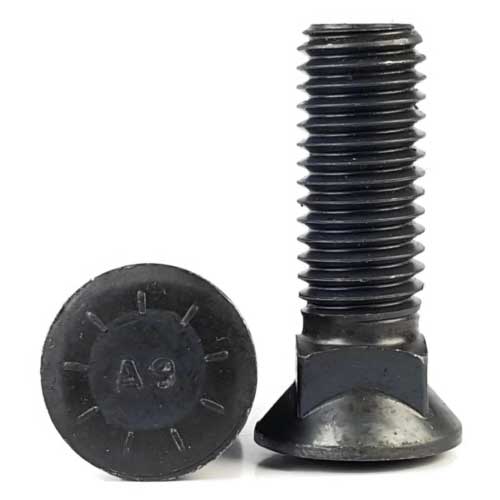

3/4"-10 Plain steel plow bolts have a slight #3 dome head for a finished look, and the shank is topped by a short countersunk square section under the head.
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Black
Finish
Plain
Grade
8
Head Diameter
Max 1.303 - Min 1.250
Head Height
Max 0.541 - Min 0.491
Head Style
Dome
Material
Steel
Product Type
Plow Bolt
Square Neck Width
Max 0.765 - Min 0.750
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
10 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
