Click on a size/sku in the table to view product-specific details and specifications.

Specifications

  • asme: B 1.1
  • Class: 2A
  • Color: Blue/Silver
  • Diameter: #2
  • Drive Style: Phillips
  • Elongation: 30%
  • Head Type: Pan Head
  • Thread Direction: Right Hand
  • Thread Type: Coarse
  • Finish: Zinc Plated
  • Fit: 2A
  • Grade: AISI 1022
  • Hardness: Rockwell B70 - B100
  • Head Height: Max 0.062 - Min 0.053
  • Head Diameter: Max 0.167 - Min 0.155
  • Head Style: Pan
  • Length: 1/2"
  • Material: Steel
  • Phillips Drive: #1

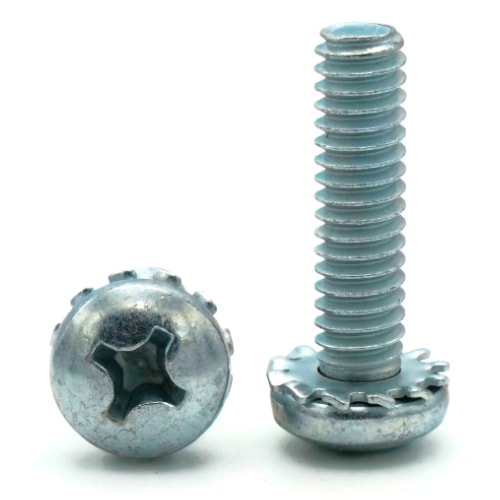

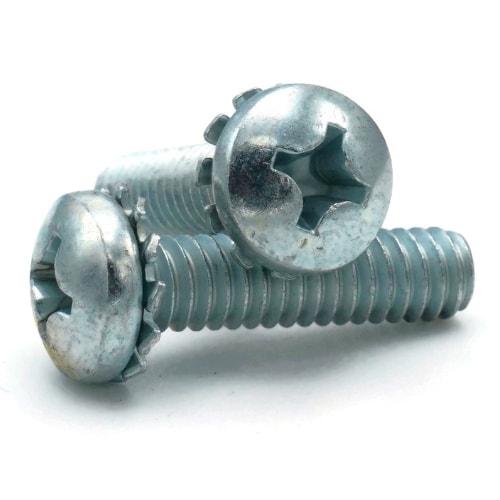

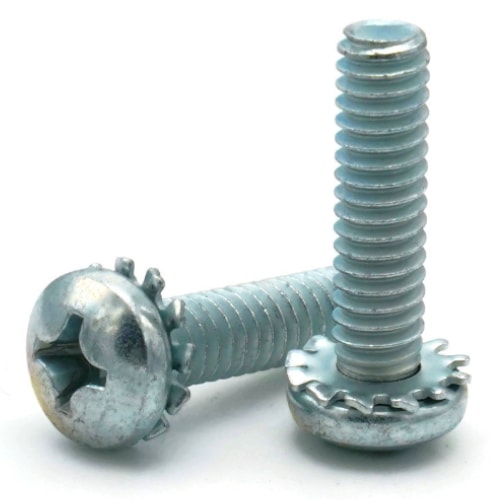

  • Product Type: SEMS Machine Screw
  • Standards Met: ASME B1.1, ASME B18.13, ASME B18.6.3
  • System of Measurement: Inch
  • Thread Diameter Major: #2 (Max 0.0854 - Min 0.0813)
  • Thread Diameter Minor: #2 (Max 0.0738 - Min 0.0717)
  • Thread Direction: Right Hand
  • Thread Pitch: 56 Per Inch
  • Thread Size: #2-56
  • Thread Standard: UNC
  • Thread Type: Coarse
  • Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
  • Washer OD: (Max 0.180 - Min 0.170)
  • Washer Thickness: (Max 0.016 - Min 0.010)
  • Yield PSI: 55,000 - 75,000 PSI
Select Size/SKU & Quantity
3 Available Sizes
SIZE/SKU Review Volume Pricing* Enter Any Qty
8420-018-002
1
$0.16 ($0.16/ea)
100
$14.00 ($0.14/ea)
1000
$120.00 ($0.12/ea)
$0.00
8420-018-022
1
$0.16 ($0.16/ea)
100
$13.00 ($0.13/ea)
1000
$110.00 ($0.11/ea)
$0.00
8420-018-032
1
$0.07 ($0.07/ea)
100
$4.00 ($0.04/ea)
1000
$30.00 ($0.03/ea)
$0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.

Page Total: $0.00
