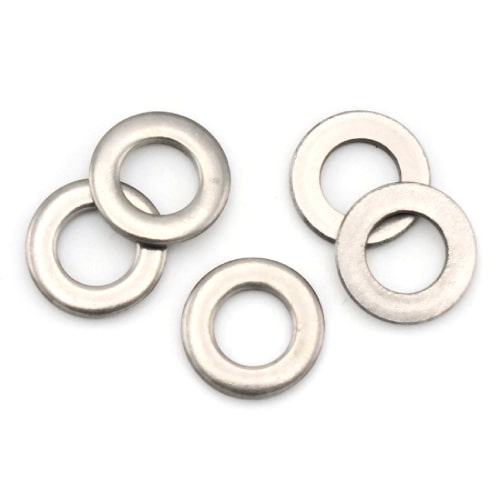

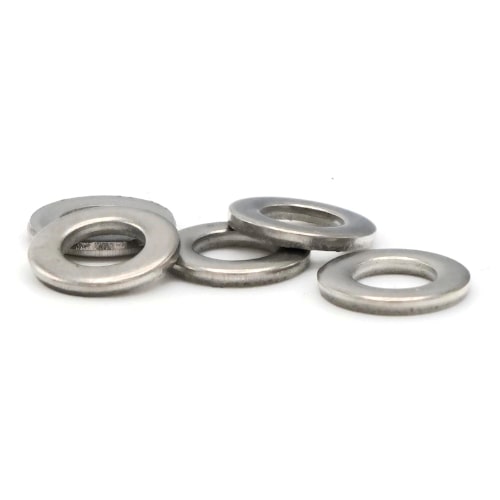

Flat Washers NAS, Stainless Steel 18-8, #8, ID .169, OD .304, TK .032
18-8 Stainless Steel National Aerospace Standards Flat Washers
| Quantity | Unit price |
|---|---|
| To 99 |
$0.07*
|
| To 999 |
$0.03*
|
| From 1000 |
$0.02*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #8
- Rivet Diameter Facet: #REF!
- Grade: 18-8
- Material (Duplicate): 18-8 Stainless Steel
- Material: Stainless Steel
- Outside Diameter (OD): 0.304
- Part Number: 046737878321
- Pattern: NAS Flat Washer
- Product Type: Flat Washers NAS
- Rivet Diameter: #REF!
- Size: #8
- Size System: US
- Size Type: Regular
- Sizing: NAS
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
NAS Flat Washers in this selection feature a smaller Outside Diameter (OD) and Inside Diameter (ID) as per the National Aerospace Standards. NAS Flat washers are used on military applications and ID and OD are tighter in size than a Standard Flat Washer.
NAS Flat washers are used on military applications. 18-8 Stainless steel washers are corrosion resistant in fresh or rain water. NAS flat washers are standardized for use with aircrafts and military applications requiring National Aerospace Standards.

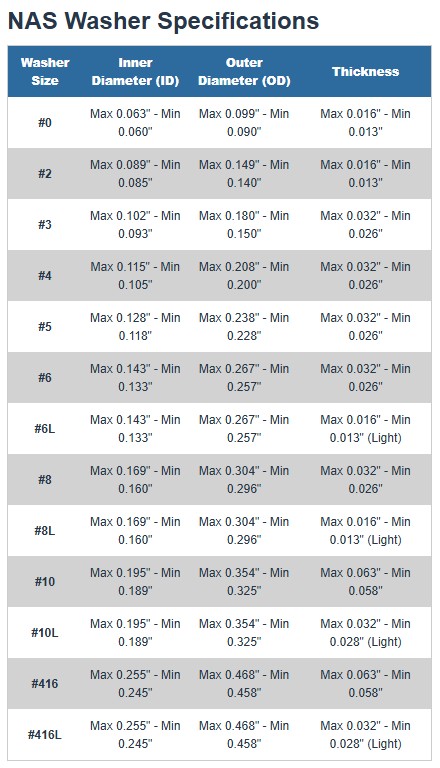

NAS Washer Specifications
| Washer Size | Inner Diameter (ID) | Outer Diameter (OD) | Thickness |
| #0 | Max 0.063" - Min 0.060" | Max 0.099" - Min 0.090" | Max 0.016" - Min 0.013" |
| #2 | Max 0.089" - Min 0.085" | Max 0.149" - Min 0.140" | Max 0.016" - Min 0.013" |
| #3 | Max 0.102" - Min 0.093" | Max 0.180" - Min 0.150" | Max 0.032" - Min 0.026" |
| #4 | Max 0.115" - Min 0.105" | Max 0.208" - Min 0.200" | Max 0.032" - Min 0.026" |
| #5 | Max 0.128" - Min 0.118" | Max 0.238" - Min 0.228" | Max 0.032" - Min 0.026" |
| #6 | Max 0.143" - Min 0.133" | Max 0.267" - Min 0.257" | Max 0.032" - Min 0.026" |
| #6L | Max 0.143" - Min 0.133" | Max 0.267" - Min 0.257" | Max 0.016" - Min 0.013" (Light) |
| #8 | Max 0.169" - Min 0.160" | Max 0.304" - Min 0.296" | Max 0.032" - Min 0.026" |
| #8L | Max 0.169" - Min 0.160" | Max 0.304" - Min 0.296" | Max 0.016" - Min 0.013" (Light) |
| #10 | Max 0.195" - Min 0.189" | Max 0.354" - Min 0.325" | Max 0.063" - Min 0.058" |
| #10L | Max 0.195" - Min 0.189" | Max 0.354" - Min 0.325" | Max 0.032" - Min 0.028" (Light) |
| #416 | Max 0.255" - Min 0.245" | Max 0.468" - Min 0.458" | Max 0.063" - Min 0.058" |
| #416L | Max 0.255" - Min 0.245" | Max 0.468" - Min 0.458" | Max 0.032" - Min 0.028" (Light) |
Product number:
1000-100007-0001
