Extra Thick Flat Washers
18-8 Stainless Steel Heavy Duty Flat Washers
- Extra thick flat washers are made to handle extra pressure from fasteners
- Less likely to damage the material
- Used to distribute loads of threaded fasteners
- Can act as spacers on a fastener
- Corrosion and rust resistant 18-8 stainless steel
- Commonly used on:
- Decks
- Docks
- Large Timber Projects

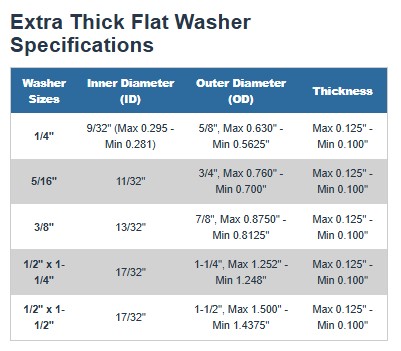

Extra Thick Flat Washer Specifications
| Washer Sizes | Inner Diameter (ID) | Outer Diameter (OD) | Thickness |
| 1/4" | 9/32" (Max 0.295 - Min 0.281) | 5/8", Max 0.630" - Min 0.5625" | Max 0.125" - Min 0.100" |
| 5/16" | 11/32" | 3/4", Max 0.760" - Min 0.700" | Max 0.125" - Min 0.100" |
| 3/8" | 13/32" | 7/8", Max 0.8750" - Min 0.8125" | Max 0.125" - Min 0.100" |
| 1/2" x 1-1/4" | 17/32" | 1-1/4", Max 1.252" - Min 1.248" | Max 0.125" - Min 0.100" |
| 1/2" x 1-1/2" | 17/32" | 1-1/2", Max 1.500" - Min 1.4375" | Max 0.125" - Min 0.100" |
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Corrosion Resistant
Yes
Grade
18-8
Material
Stainless Steel
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
