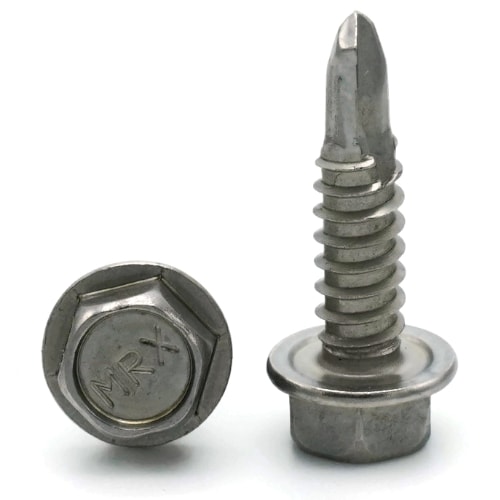

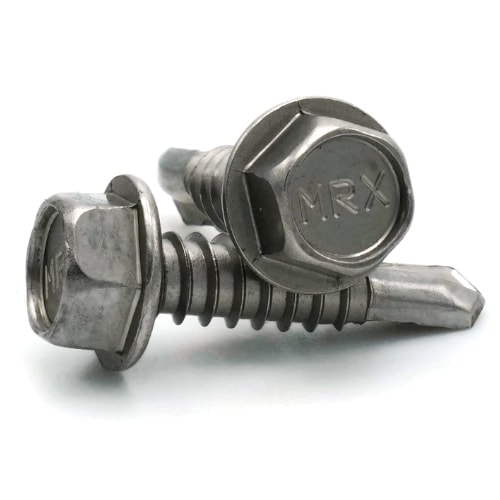

Sheet Metal Screws, Hex Washer Head, Self Driller TEK 3, Ultra Stainless Steel, #14 x 3/4"
Made of Ultra Stainless® Steel with a Self Drilling Point
| Quantity | Unit price |
|---|---|
| To 99 |
$1.65*
|
| To 999 |
$1.51*
|
| From 1000 |
$1.24*
|
- Across Flats (Width): 3/8" (Max 0.375 - Min 0.368)
- ANSI: B18.6.4
- Color: Gray
- Corrosion Resistant: Yes
- Diameter: #14
- Drive Style: External Hex
- Elongation: 30%
- Head Type: Hex Washer Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: Ultra Stainless®
- Hardness: 40 Rockwell C
- Head Size: 3/8"
- Head Style: Hex Washer
- Length: 3/4"
- Material: Stainless Steel
- Point Type: TEK
- Product Type: Self Drilling Screws
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Thread Direction: Right Hand
- Thread Pitch: 14 Per Inch
- Thread Size: #14-14
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Wrench Size: 5/16"
#14 Hex Washer Head Self Driller Screws are made of Ultra Stainless® for superior corrosion resistance and high hardness for drilling.
- #14 Diameter
- Hexagon drive for use with a wrench or socket
- Fully Threaded from tip to head
- Integral washer at the top of the head to minimize chance of pull-through
- Washer portion of screw distributes pressure over a larger surface area
- Ultra Stainless®
- A new kind of stainless steel alloy that combines 410 & 316 Stainless Steels
- Unprecedented corrosion resistance
- Salt sprat test - 500 hours
- Superior hardness for drilling
Product number:
7100-010-0002
