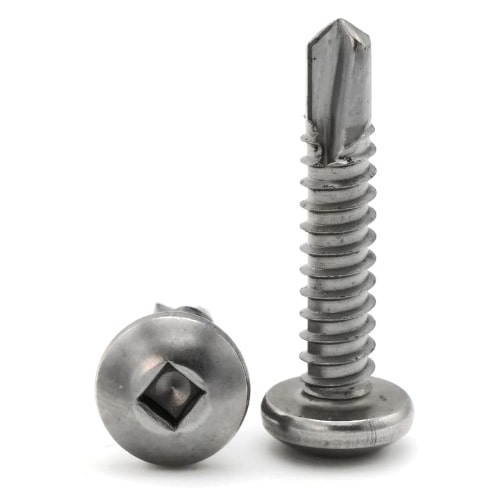

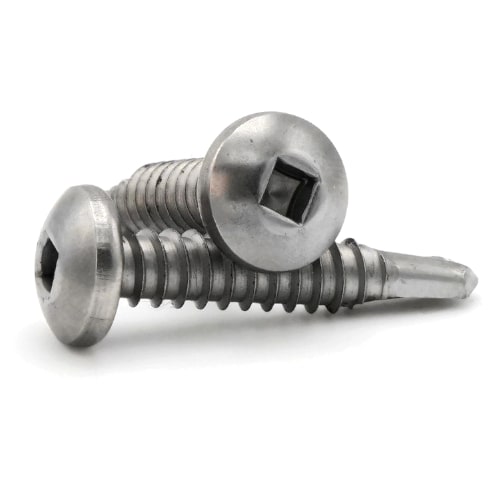

#14 Square Drive Pan Head Self Driller 410 Stainless Steel Screws

#14-14 Stainless Steel Square Drive Pan Head Self Drilling Screws

Diameter - Thread Pitch: #14-14


  • #14-14
  • Self drilling point to pierce 20 through 14 gauge metals
  • The square drive style provide better hold making them less likely to strip
  • Commonly used in exterior elements
  • 410 Stainless steel square drive pan head self drilling screws are hardened and corrosion resistant
  • Sizes listed below as: Diameter - Thread Pitch
Select Products Below
See Product Specifications
Size:
Qty
Size
Select Package Quantity
SubTotal
Loading ...
Product Specifications
Corrosion Resistant
Yes
Drive Style
Square
Grade
410
Hardness
40 Rockwell C
Head Diameter
Max 0.492 - Min 0.473
Head Style
Pan
Material
Stainless Steel
Overall Head Height
Max 0.144 - Min 0.130 (From Botton to Top of Head)
Point Type
TEK-3 (0.353)
Product Type
Square Drive Pan Head Self Drilling Screws
Square Drive
#3
System of Measurement (Unit)
Inch
Tensile PSI
180,000 PSI Heat Treated
Thread Diameter Major
(#14) 0.246
Thread Diameter Minor
(#14) 0.192
Thread Direction
Right Hand
Thread Pitch (Count)
14 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
