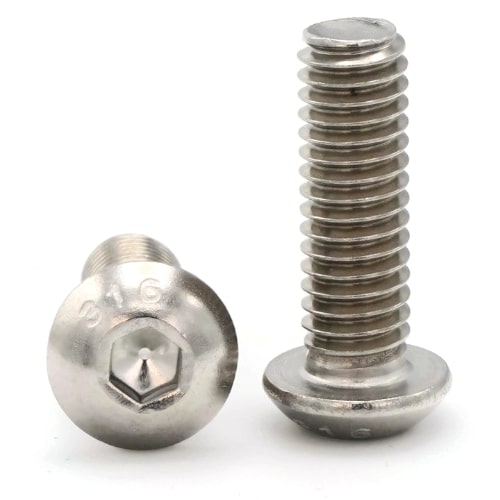

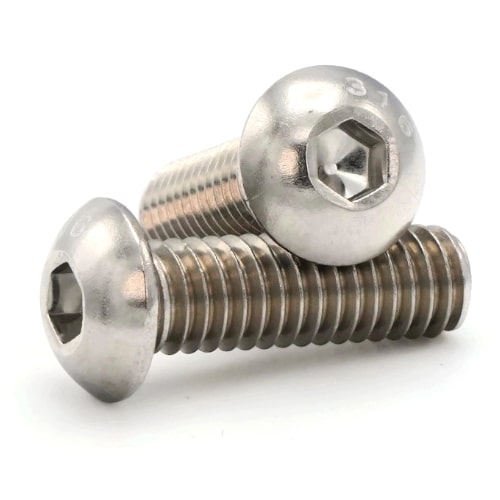

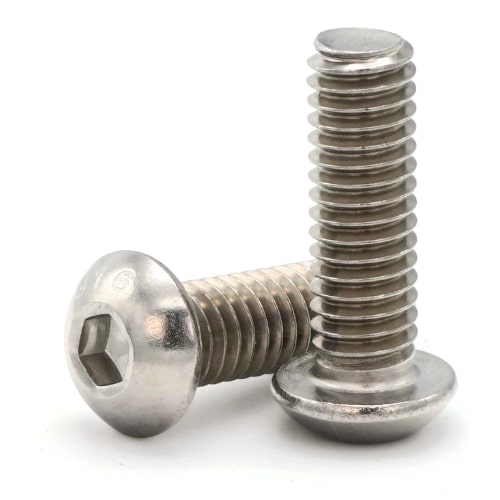

Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 3/8"

Screw Diameter - Thread Pitch: 1/4"-20

1/4"-20 Button Head Socket Cap Screws are bolts or machine screws with a Hex or Allen drive style.

Commonly referred to as allen bolts, button heads, or socket head screws
Domed head with a flat bottom that protrudes above the installation surface
Nice finished look
cylindrical head and hexagonal drive style
Head diameter is nominally 1.5 times or more that of the screw shank (major) diameter
316 Stainless steel offers superior corrosion and rust resistance
Perfect for applications exposed to fresh or salt water, and maintain their finish in harsh environments

Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head

Product number: 2010-060-004

Print this page

Specifications

ANSI: B1.1
Color: Silver
Corrosion Resistant: Yes
Diameter: 1/4"
Drive Style: Internal Hex (Allen)
Head Type: Button Head
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 3A
FT = Full Thread: Yes
Grade: 316
Head Height: Max 0.132 - Min 0.122
Head Height Max: 0.132
Head Diameter: Max 0.437 - Min 0.419
Head Style: Button
Hex Drive: 5/32"
Length: 3/8"
Marine Grade: Yes
Material: Stainless Steel
Overall Head Height: Max 0.132 - Min 0.122
Product Type: Socket Cap Screws
Standards Met: ANSI B1.1
System of Measurement: Inch
Thread Direction: Right Hand
Thread Pitch: 20 Per Inch
Thread Size: 1/4"-20
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Flat Washers, Stainless Steel 316, 1/4" (0.281 ID x 5/8 OD x .050 THK)

Volume Pricing*

$0.08

($0.08/ea)

100

$6.00

($0.06/ea)

1000

$50.00

($0.05/ea)

$0.00

Lock Washers, Split Ring, Stainless Steel 316, 1/4" (0.252 ID x 0.487 OD x .062 THK)

Volume Pricing*

$0.09

($0.09/ea)

100

$5.00

($0.05/ea)

1000

$40.00

($0.04/ea)

$0.00

Hex Finish Nuts, Stainless Steel 316, 1/4"-20 (7/16" Flats x 7/32" Thick)

Volume Pricing*

$0.10

($0.10/ea)

100

$8.00

($0.08/ea)

1000

$70.00

($0.07/ea)

$0.00

Nylon Lock Nuts, Stainless Steel 316, 1/4"-20 (439" Flats x .328" Thick)

Volume Pricing*

$0.21

($0.21/ea)

100

$18.00

($0.18/ea)

1000

$160.00

($0.16/ea)

$0.00

Long Arm Ball Point Premium Hex Allen Key Set , SAE Inch Sizes, 13 Pieces

Volume Pricing*

$18.10 ea.

$0.00

Select Size/SKU & Quantity

16 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
1/4"-20 x 1/4" 2010-060-002	1 $0.81 ($0.81/ea) 100 $68.00 ($0.68/ea) 1000 $670.00 ($0.67/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 1/4" $0.00
1/4"-20 x 3/8" 2010-060-004	1 $0.49 ($0.49/ea) 100 $32.00 ($0.32/ea) 1000 $280.00 ($0.28/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 3/8" $0.00
1/4"-20 x 1/2" 2010-060-006	1 $0.56 ($0.56/ea) 100 $37.00 ($0.37/ea) 1000 $320.00 ($0.32/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 1/2" $0.00
1/4"-20 x 5/8" 2010-060-008	1 $0.56 ($0.56/ea) 100 $38.00 ($0.38/ea) 1000 $330.00 ($0.33/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 5/8" $0.00
1/4"-20 x 3/4" 2010-060-010	1 $0.59 ($0.59/ea) 100 $39.00 ($0.39/ea) 1000 $340.00 ($0.34/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 3/4" $0.00
1/4"-20 x 7/8" 2010-060-012	1 $0.68 ($0.68/ea) 100 $58.00 ($0.58/ea) 1000 $560.00 ($0.56/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 7/8" $0.00
1/4"-20 x 1" 2010-060-014	1 $0.61 ($0.61/ea) 100 $40.00 ($0.40/ea) 1000 $350.00 ($0.35/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 1" $0.00
1/4"-20 x 1-1/4" 2010-060-016	1 $1.00 ($1.00/ea) 100 $67.00 ($0.67/ea) 1000 $580.00 ($0.58/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 1-1/4" $0.00
1/4"-20 x 1-3/8" 2010-060-018	1 $1.45 ($1.45/ea) 100 $134.00 ($1.34/ea) 1000 $1,320.00 ($1.32/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 1-3/8" $0.00
1/4"-20 x 1-1/2" 2010-060-020	1 $1.02 ($1.02/ea) 100 $68.00 ($0.68/ea) 1000 $590.00 ($0.59/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 1-1/2" $0.00
1/4"-20 x 1-3/4" 2010-060-022	1 $1.03 ($1.03/ea) 100 $69.00 ($0.69/ea) 1000 $600.00 ($0.60/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 1-3/4" $0.00
1/4"-20 x 2" 2010-060-024	1 $1.05 ($1.05/ea) 100 $70.00 ($0.70/ea) 1000 $610.00 ($0.61/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 2" $0.00
1/4"-20 x 2-1/2" 2010-060-026	1 $1.44 ($1.44/ea) 100 $96.00 ($0.96/ea) 1000 $840.00 ($0.84/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 2-1/2" $0.00
1/4"-20 x 3" 2010-060-028	1 $1.46 ($1.46/ea) 100 $98.00 ($0.98/ea) 1000 $850.00 ($0.85/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 3" $0.00
1/4"-20 x 3-1/2" 2010-060-030	1 $1.50 ($1.50/ea) 100 $137.00 ($1.37/ea) 1000 $1,250.00 ($1.25/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 3-1/2" $0.00
1/4"-20 x 4" 2010-060-032	1 $2.78 ($2.78/ea) 100 $268.00 ($2.68/ea) 1000 $2,650.00 ($2.65/ea)	Quantity for Socket Cap Screws, Button Head, Stainless Steel 316, 1/4"-20 x 4" $0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.

Page Total: $0.00
