#14-14 Star Drive Pan Head Self Driller 410 Stainless Steel

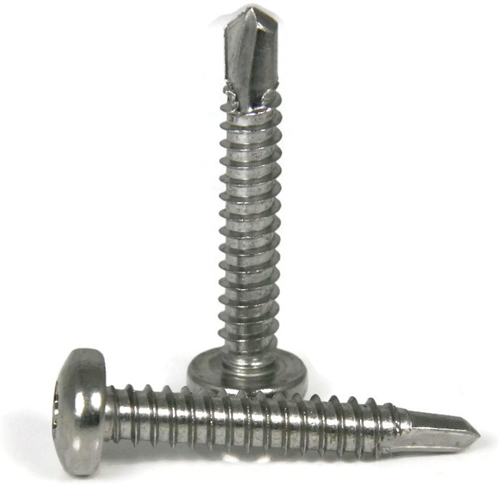

#14-14 Stainless Steel Star Drive Pan Head Self Drilling Screws

Diameter - Thread Pitch: #14-14

  • #14-14
  • Self drilling point (TEK) with cutting threads

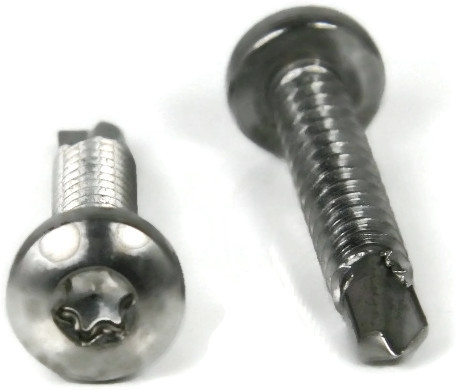

  • Star Drive
  • While not universal, these screws are commonly used in license plates
  • Lessens the chance of stripping during installation which means more torque can be applied safely
  • 410 Stainless steel square drive pan head self drilling screws are hardened and corrosion resistant
  • A benefit/disadvantage of an unusual drive is that it can be more difficult for users of a device to disassemble than more common head types
  • Sizes listed below as: Diameter - Thread Pitch
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 3/4")
SKU #1010-008-0002
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 3/4")
SKU #1010-008-0002
1
 $0.74 (0.74/ea)
100
 $51.00 (0.51/ea)
1000
 $460.00 (0.46/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 1")
SKU #1010-008-0012
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 1")
SKU #1010-008-0012
1
 $0.85 (0.85/ea)
100
 $61.00 (0.61/ea)
1000
 $550.00 (0.55/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 1-1/4")
SKU #1010-008-0022
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 1-1/4")
SKU #1010-008-0022
1
 $0.96 (0.96/ea)
100
 $71.00 (0.71/ea)
1000
 $640.00 (0.64/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 1-1/2")
SKU #1010-008-0032
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 1-1/2")
SKU #1010-008-0032
1
 $1.07 (1.07/ea)
100
 $76.00 (0.76/ea)
1000
 $680.00 (0.68/ea)
Subtotal: $0.00 /
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 2")
SKU #1010-008-0042
Star Drive Pan Head Self Driller 410 Stainless (#14-14 x 2")
SKU #1010-008-0042
1
 $1.29 (1.29/ea)
100
 $89.00 (0.89/ea)
1000
 $800.00 (0.8/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Star Drive Power Bits - T27 - Length 2"
Star Drive Power Bits - T27 - Length 2" 1050-700-0040-A
Star Drive Power Bits - T27 - Length 2
1
 $2.04 (2.04/ea)
10
 $19.00 (1.9/ea)
50
 $85.00 (1.7/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Drive Style
Star
Grade
410
Hardness
40 Rockwell C
Head Diameter
Max 0.492 - Min 0.473
Head Style
Pan
Material
Stainless Steel
Overall Head Height
Max 0.144 - Min 0.130
Point Type
TEK
Product Type
Torx 6 Lobe Pan Head Self Drilling Screw
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK-3 (0.353)
Tensile PSI
180,000 PSI Heat Treated
Thread Diameter Major
#14 (0.246)
Thread Diameter Minor
#14 (0.192)
Thread Direction
Right Hand
Thread Pitch (Count)
14 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx Drive
T-27
