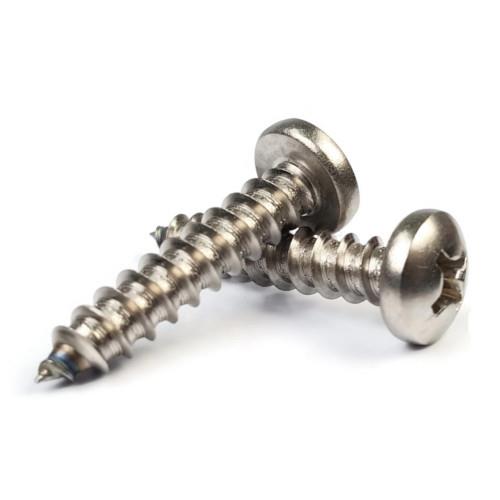

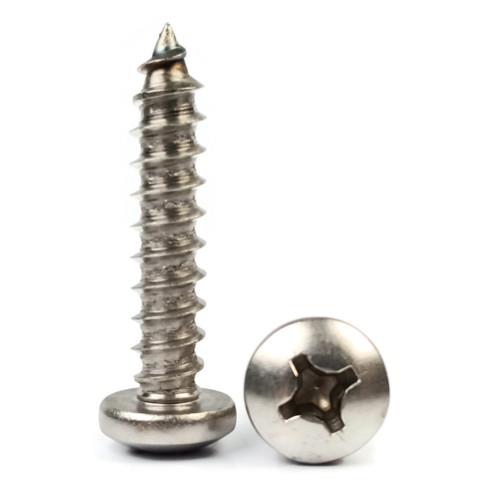

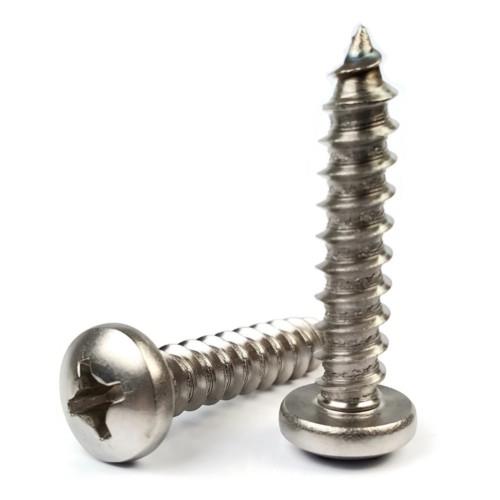

Sheet Metal Screws, Phillips Pan Head, Stainless Steel 316, #12

Sheet Metal Screws, Phillips Pan Head, Stainless Steel 316, #12

Diameter - Thread Pitch: #12-11


  • #12-11
  • Cut into sheet metal, plastic or wood
  • Fully threaded
  • Great for attaching metal to wood
  • Strong retention in wood
  • Also known as Self Piercing Screws or Self Tapping Screws
  • Pan head - rounded top with an undercut (flat bottom) head
  • Sizes listed below as: Diameter - Thread Pitch
  • A 316 stainless steel Phillips pan head sheet metal screw is highly corrosion and rust resistant
  • Ideal for saltwater and applications exposed to harsh environments
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
#12-11 x 1/2"
#12-11 x 1/2"
1 $0.30 (0.3/ea)
100 $22.00 (0.22/ea)
1000 $190.00 (0.19/ea)
Subtotal: $0.00 /
#12-11 x 5/8"
#12-11 x 5/8"
1 $0.34 (0.34/ea)
100 $26.00 (0.26/ea)
1000 $220.00 (0.22/ea)
Subtotal: $0.00 /
#12-11 x 3/4"
#12-11 x 3/4"
1 $0.37 (0.37/ea)
100 $27.00 (0.27/ea)
1000 $230.00 (0.23/ea)
Subtotal: $0.00 /
#12-11 x 1"
#12-11 x 1"
1 $0.42 (0.42/ea)
100 $30.00 (0.3/ea)
1000 $260.00 (0.26/ea)
Subtotal: $0.00 /
#12-11 x 1-1/4"
#12-11 x 1-1/4"
1 $0.49 (0.49/ea)
100 $36.00 (0.36/ea)
1000 $310.00 (0.31/ea)
Subtotal: $0.00 /
#12-11 x 1-1/2"
#12-11 x 1-1/2"
1 $0.55 (0.55/ea)
100 $39.00 (0.39/ea)
1000 $340.00 (0.34/ea)
Subtotal: $0.00 /
#12-11 x 1-3/4"
#12-11 x 1-3/4"
1 $0.61 (0.61/ea)
100 $41.00 (0.41/ea)
1000 $360.00 (0.36/ea)
Subtotal: $0.00 /
#12-11 x 2"
#12-11 x 2"
1 $0.71 (0.71/ea)
100 $51.00 (0.51/ea)
1000 $440.00 (0.44/ea)
Subtotal: $0.00 /
#12-11 x 2-1/2"
#12-11 x 2-1/2"
1 $0.77 (0.77/ea)
100 $55.00 (0.55/ea)
1000 $480.00 (0.48/ea)
Subtotal: $0.00 /
#12-11 x 3"
#12-11 x 3"
1 $0.82 (0.82/ea)
100 $59.00 (0.59/ea)
1000 $510.00 (0.51/ea)
Subtotal: $0.00 /
#12-11 x 4"
#12-11 x 4"
1 $1.16 (1.16/ea)
100 $99.00 (0.99/ea)
1000 $870.00 (0.87/ea)
Subtotal: $0.00 /

Frequently Used With

1 $0.14 (0.14/ea)
100 $8.00 (0.08/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00
1 $0.09 (0.09/ea)
100 $5.00 (0.05/ea)
1000 $40.00 (0.04/ea)
Subtotal: $0.00
1 $1.04 (1.04/ea)
10 $8.10 (0.81/ea)
50 $38.00 (0.76/ea)
Subtotal: $0.00
1 $3.27 (3.27/ea)
10 $28.30 (2.83/ea)
50 $135.00 (2.7/ea)
Subtotal: $0.00
1 $2.55 (2.55/ea)
10 $21.20 (2.12/ea)
Subtotal: $0.00

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#12
Drive Style
Phillips
Grade
316
Head Diameter
Max 0.425 - Min 0.407
Head Height Max
0.125
Head Style
Pan
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.125 - Min 0.112
Phillips Drive
#3
Point Type
A
Product Type
Sheet Metal Screws
System of Measurement (Unit)
Inch
Thread Diameter Major
(#12) 0.221" - 0.215"
Thread Diameter Minor
(#12) 0.162" - 0.155"
Thread Direction
Right Hand
Thread Pitch (Count)
11 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
