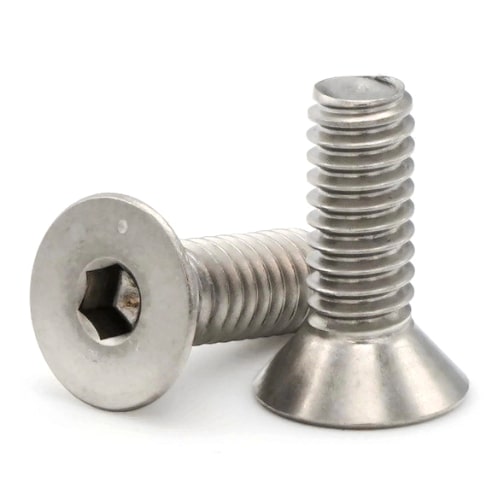

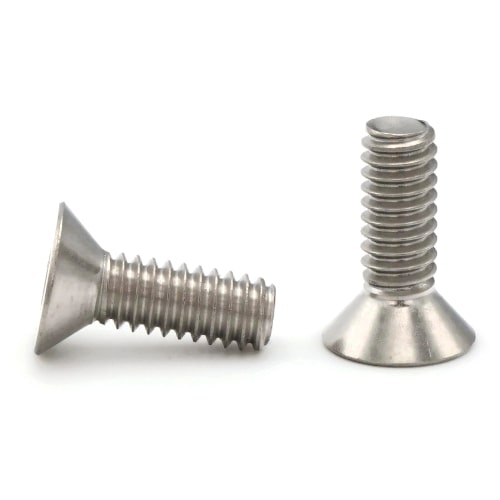

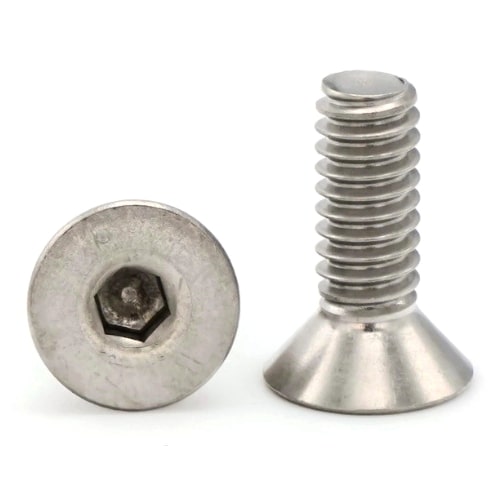

Socket Cap Screws, Flat Head, Stainless Steel 316, #12-24 x 3/4"
Screw Diameter - Thread Pitch: #12-24
| Quantity | Unit price |
|---|---|
| To 99 |
$3.92*
|
| To 999 |
$3.83*
|
| From 1000 |
$3.79*
|
- Color: Silver
- Corrosion Resistant: Yes
- Countersink: 82 Degrees
- Diameter: #12
- Drive Style: Internal Hex (Allen)
- Head Type: Flat Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 3A
- Grade: 316
- Head Height: Max 0.150 - Min 0.146
- Head Diameter: Max 0.489 - Min 0.401
- Head Style: Flat
- Hex Drive: 1/8"
- Length: 3/4"
- Marine Grade: Yes
- Material: Stainless Steel
- Overall Head Height: Max 0.127 - Min 0.112
- Product Type: Socket Cap Screws
- Standards Met: ASTM F 835
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: #12-24
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
#12-24 Flat Head Socket Cap Screws are machine screws with a Hex drive style.
- Countersunk bottom that runs flush with the installation surface
- Cylindrical head
- Hexagonal drive style
- Fully threaded up to the countersink
- Corrosion and rust resistant
- Ideal for exterior or long lasting applications exposed to fresh water moisture
Sizes Listed As:
Diameter - Thread Pitch x Length from Top of Head
Product number:
2010-102-002
