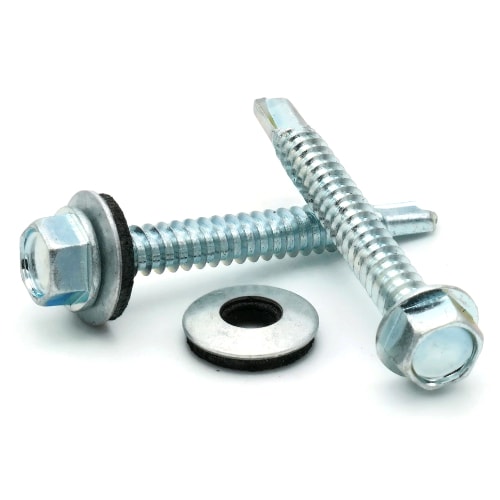

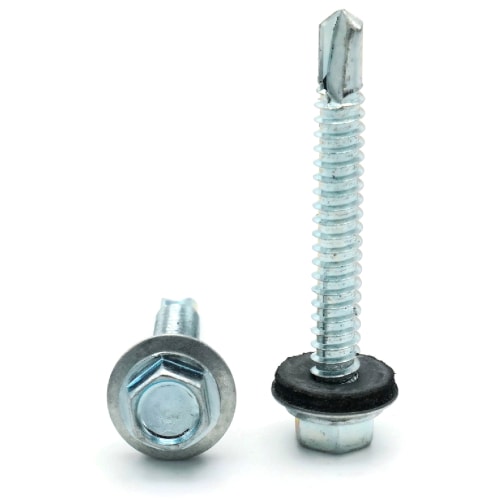

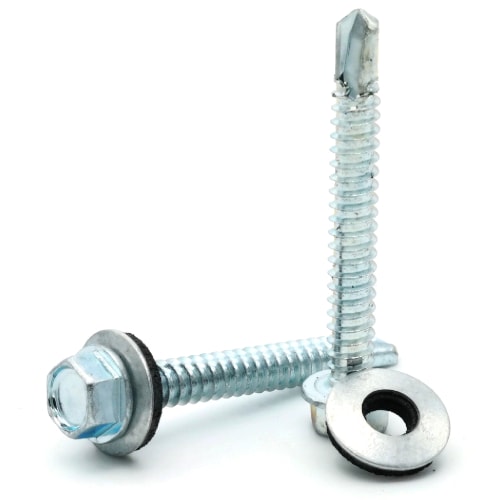

Roofing Siding Screws, Hex Washer EPDM Head, Self Drilling TEK 3, Zinc Plated Steel, #12 x 3/4"
Diameter - Thread Pitch: #12-14
| Quantity | Unit price |
|---|---|
| To 99 |
$0.17*
|
| To 999 |
$0.13*
|
| From 1000 |
$0.11*
|
- Across Flats (Width): 5/16" (Max 0.312 - Min 0.309)
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #12
- Drive Style: External Hex
- Head Type: Hex Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Head Diameter: 5/16"
- Head Size: 5/16"
- Head Style: Hex Washer
- Length: 3/4"
- Material: Stainless Steel
- Other: Includes Stainless Steel Backed Neoprene EPDM Washers
- Point Type: TEK
- Product Type: Roofing Screws
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Thread Direction: Right Hand
- Thread Pitch: 12 Per Inch
- Thread Size: #12
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Washer OD: 0.545"
- Washer Thickness: 0.140"
- Wrench Size: 5/16"
- CR+3 Zinc Plating
- Comes with a TEK drill point
- Used for attaching metal roofing and siding panels to metal stud framing
- Also called self drillers
- Fully threaded minus the drill point
- TEK tips are rated based on the thickness of the metal you are penetrating
#12-14 Zinc plated hex washer head self driller with EPDM rubber metal beaked washer for metal roofing and siding. The EPDM (Ethylene Propylene Diene Monomer) rubber which has a wide range of application. This is the best rubber for metal building and siding applications to stop water from entering the building with long life spans.
A self drilling screw drill point depends on the metal thickness. The typical 25 to 16 gauge will use a TEK 3 and 14 gauge and below will require TEK 4-5.
Product number:
1070-110-0002
