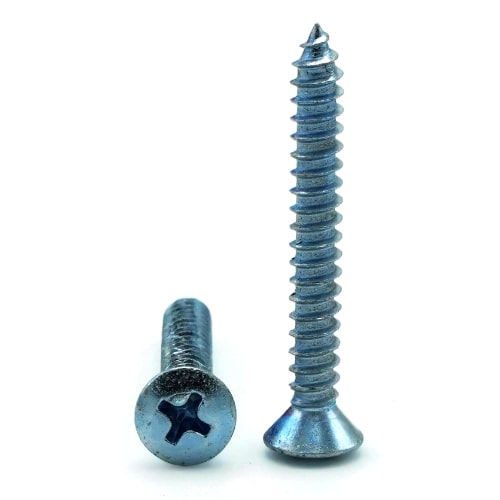

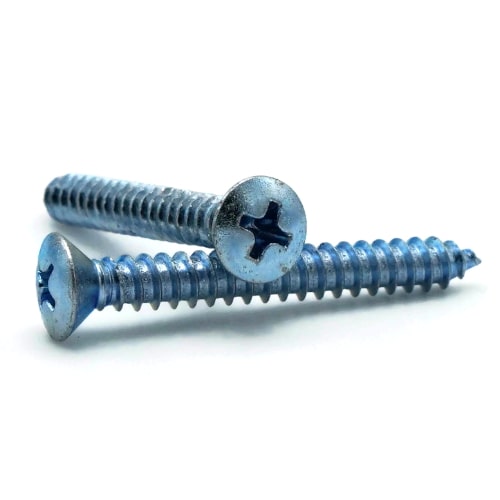

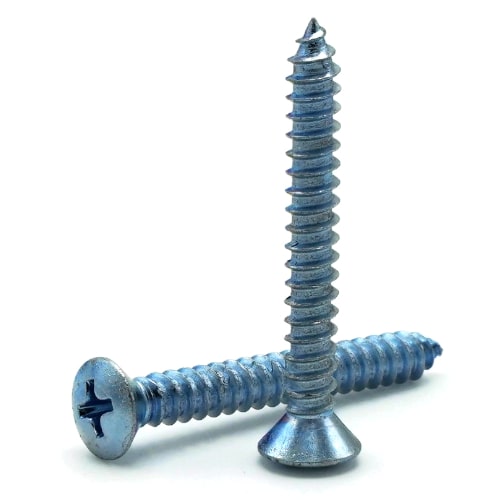

#12-14 Phillips Oval Head Sheet Metal Screws Zinc Plated Steel
Diameter - Thread Pitch: #12-14 | Type AB
- #12-14
- Type AB
- Raised decorative head
- Threads cut into material for a stronger hold
- Zinc Plated Steel
- Sizes listed below as: Diameter - Thread Pitch
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Diameter
#12
Drive Style
Phillips
Finish
Zinc Plated
Head Height Max
0.2
Head Style
Oval
Material
Steel
Overall Head Height
Max 0.200 - Min 0.155
Phillips Drive
#3
Point Type
AB
Product Type
Sheet Metal Screws
System of Measurement (Unit)
Inch
Thread Diameter Major
(#12) 0.221 - 0.215
Thread Diameter Minor
(#12) 0.162 - 0.155
Thread Direction
Right Hand
Thread Pitch (Count)
14 Per Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
