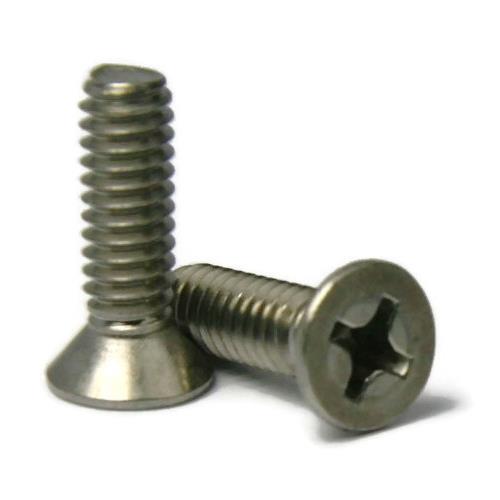

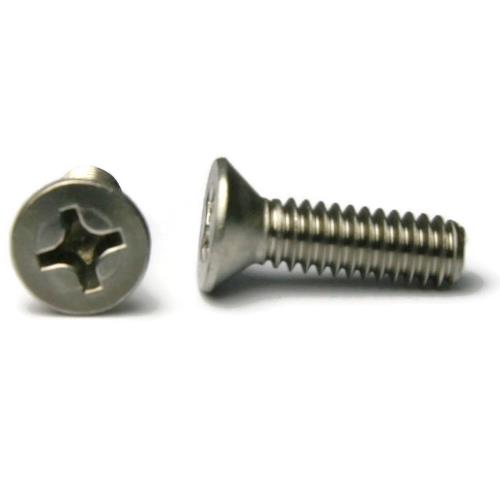

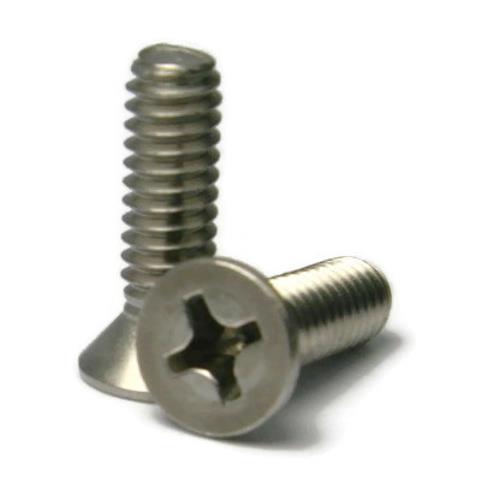

Machine Screws, Phillips Flat Head, Stainless Steel 316, #10-32 x 3/8"
Diameter - Thread Pitch: #10-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.12*
|
| To 999 |
$0.08*
|
| From 1000 |
$0.07*
|
- ANSI: ANSI B18.6.3
- Class: 2A
- Color: Silver
- Corrosion Resistant: Yes
- Countersink: 82 Degree
- Diameter: #10
- Drive Style: Phillips
- Head Type: Flat Head
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 2A
- Grade: 316
- Head Height Max: 0.116
- Head Diameter: Max 0.385 - Min 0.340
- Head Style: Flat
- Length: 3/8"
- Marine Grade: Yes
- Material: Stainless Steel
- Overall Head Height: Max 0.116 - Min 0.098
- Phillips Drive: #2
- Product Type: Machine Screws
- Standards Met: ANSI B18.6.3
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Fully threaded
- 82-degree taper
- A machine screw is commonly identified by its small size
- Screw head lays flush with the installation surface
- Superior corrosion resistance when compared to standard grade (18-8 / 304) stainless steel
- Suitable for harsh environmental conditions such as:
- Boats
- Marinas
- Docks
#10-32 Stainless steel Phillips flat head machine screws are available in 316 stainless steel.
