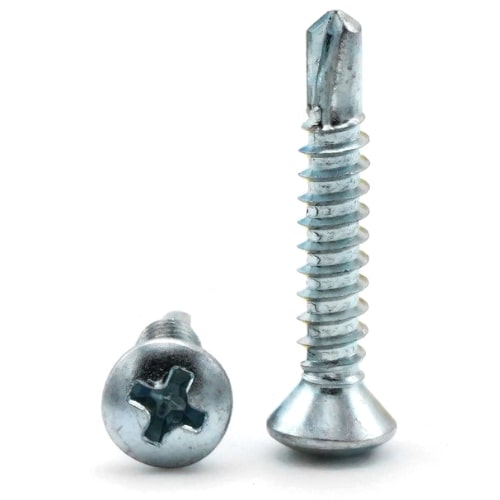

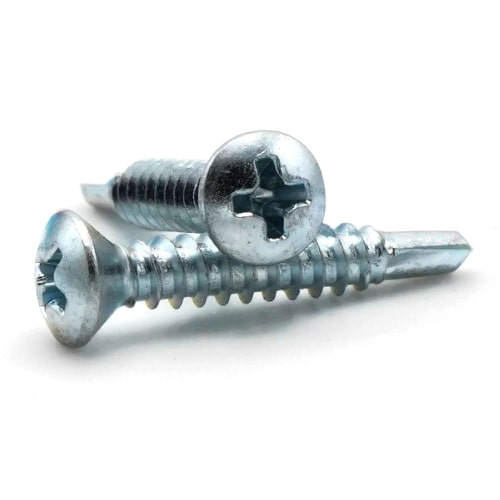

#10-16 Zinc Plated Phillips Oval Head Self Drilling Screws

#10-16 | Zinc Plated Steel Phillips Oval Head Self Drilling Screws

Diameter - Thread Pitch: #10-16


  • #10-16
  • CR+3 Zinc to easily drill into materials
  • Raised decorative head, with a countersunk bottom and a round top
  • #3 Self drilling (TEK) point
  • Zinc plated phillips oval head self drilling screws are hardened to make drilling easy
  • NOTE: Sheet metal screws provide excellent retention in wood but can be difficult to remove
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 3/4"
SKU #1523-008-0032
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 3/4"
SKU #1523-008-0032
1
NA
25
$4.00 (0.16/ea)
100
$9.00 (0.09/ea)
1000
$70.00 (0.07/ea)
Subtotal: $0.00 /
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1"
SKU #1523-008-0042
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1"
SKU #1523-008-0042
1
NA
25
$4.00 (0.16/ea)
100
$9.00 (0.09/ea)
1000
$70.00 (0.07/ea)
Subtotal: $0.00 /
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1-1/4"
SKU #1523-008-0052
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1-1/4"
SKU #1523-008-0052
1
NA
25
$4.50 (0.18/ea)
100
$10.00 (0.1/ea)
1000
$80.00 (0.08/ea)
Subtotal: $0.00 /
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1-3/8"
SKU #1523-008-0062
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1-3/8"
SKU #1523-008-0062
1
NA
25
$4.50 (0.18/ea)
100
$10.00 (0.1/ea)
1000
$80.00 (0.08/ea)
Subtotal: $0.00 /
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1-1/2"
SKU #1523-008-0072
Phillips Oval Head Self Driller TEK 3 Zinc - #10 x 1-1/2"
SKU #1523-008-0072
1
NA
25
$5.00 (0.2/ea)
100
$12.00 (0.12/ea)
1000
$90.00 (0.09/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Countersink
Yes
Diameter
#10
Drive Style
Phillips
Finish
Zinc Plated
Head Diameter
Max 0.385 - Min 0.340
Head Height Max
0.176
Head Style
Oval
Material
Steel
Phillips Drive
#2
Point Type
TEK
Product Type
Self Drilling Screws
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK 3 (0.353)
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
