#10-16 Torx Pan Head Self Driller 410 Stainless Steel

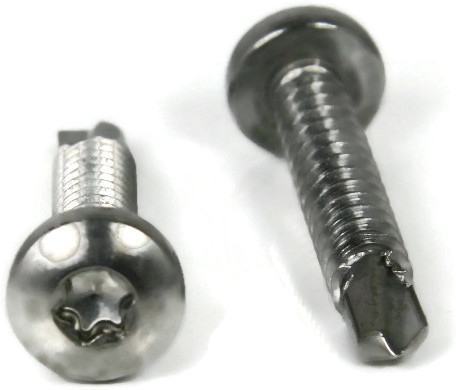

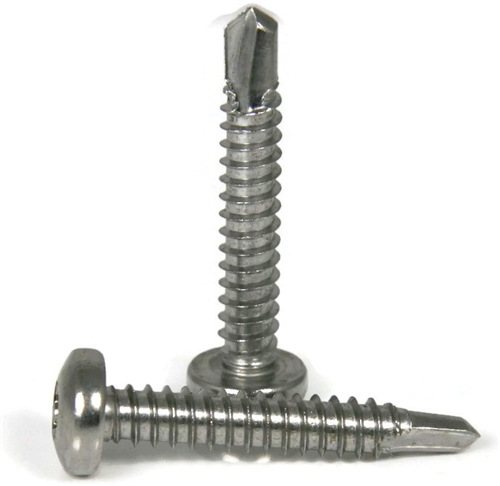

Stainless Steel Torx Pan Head Self Drilling Screws



Alternative Views:

Stainless Steel Torx Pan Head Self Drilling Screws

Diameter - Thread Pitch: #10-16

Torx Pan head self drilling screws are made of 410 stainless steel and have a sheet metal thread with a self driller cutting (TEK) point to pierce through 20 to 14 gauge metals.

Torx 6-Lobe Pan Head Self Drilling Sheet Metal Screws are used because of the unconventional and efficient drive style. The Torx 6 Lobe drive style is designed so that the driver will not slip out of the fastener recess during installation, since the driver is not inherently centered on the fastener. This creates a lesser chance of screw stripping as well as allowing for a higher torque installation. Torx Drive Screws are also known as 6 Lobe, Star Drive and Hexalobular.

Harder than 18-8 stainless but with less corrosion resistance, 410 stainless is commonly used to make roofing screws, siding screws and self tapping (or self drilling) screws, because it is a harder material than the metal being fastened in these types of applications.

Product Specifications:
Torx 6 Lobe Pan Head Self Drilling Screws
Thread Diameter Major: (#10) 0.189
Thread Diameter Minor: (#10) 0.141
Thread Pitch: 16 Per Inch (Coarse)
Head Diameter: Max 0.373 - Min 0.357
Overall Head Height: Max 0.110 - Min 0.099
(From Bottom to Top of Head)
Point Type: TEK-3 (0.353)
Thread Direction: Right Hand
Material: 410 Stainless Steel
Torx Bit Size: T-25
Tensile: 180,000 PSI Heat Treated
Hardness: 40 Rockwell C
Diameter - Thread Pitch x Length from Underside of Head
Product Specifications may vary slightly +/- depending upon production run
within IFI Tolerances
Matching Products:
Torx 6 Lobe Power Bits
Torx 6 Lobe Power Bits


Item# Item Name Our Price Qty Add
1010-004-0002 Torx Pan Head Self Driller 410 SS (#10-16 x 1/2") - Qty-1
$0.26
1010-004-0004 Torx Pan Head Self Driller 410 SS (#10-16 x 1/2") - Qty-25
$6.08
1010-004-0006 Torx Pan Head Self Driller 410 SS (#10-16 x 1/2") - Qty-100
$22.09
1010-004-0008 Torx Pan Head Self Driller 410 SS (#10-16 x 1/2") - Qty-250
$52.46
1010-004-0010 Torx Pan Head Self Driller 410 SS (#10-16 x 1/2") - Qty-1000
$198.81
1010-004-0012 Torx Pan Head Self Driller 410 SS (#10-16 x 5/8") - Qty-1
$0.27
1010-004-0014 Torx Pan Head Self Driller 410 SS (#10-16 x 5/8") - Qty-25
$6.31
1010-004-0016 Torx Pan Head Self Driller 410 SS (#10-16 x 5/8") - Qty-100
$22.95
1010-004-0018 Torx Pan Head Self Driller 410 SS (#10-16 x 5/8") - Qty-250
$54.52
1010-004-0020 Torx Pan Head Self Driller 410 SS (#10-16 x 5/8") - Qty-1000
$206.60
1010-004-0022 Torx Pan Head Self Driller 410 SS (#10-16 x 3/4") - Qty-1
$0.29
1010-004-0024 Torx Pan Head Self Driller 410 SS (#10-16 x 3/4") - Qty-25
$6.67
1010-004-0026 Torx Pan Head Self Driller 410 SS (#10-16 x 3/4") - Qty-100
$24.26
1010-004-0028 Torx Pan Head Self Driller 410 SS (#10-16 x 3/4") - Qty-250
$57.60
1010-004-0030 Torx Pan Head Self Driller 410 SS (#10-16 x 3/4") - Qty-1000
$218.30
1010-004-0032 Torx Pan Head Self Driller 410 SS (#10-16 x 1") - Qty-1
$0.32
1010-004-0034 Torx Pan Head Self Driller 410 SS (#10-16 x 1") - Qty-25
$7.15
1010-004-0036 Torx Pan Head Self Driller 410 SS (#10-16 x 1") - Qty-100
$25.99
1010-004-0038 Torx Pan Head Self Driller 410 SS (#10-16 x 1") - Qty-250
$61.72
1010-004-0040 Torx Pan Head Self Driller 410 SS (#10-16 x 1") - Qty-1000
$233.89
1010-004-0042 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/4") - Qty-1
$0.37
1010-004-0044 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/4") - Qty-25
$8.34
1010-004-0046 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/4") - Qty-100
$30.32
1010-004-0048 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/4") - Qty-250
$72.01
1010-004-0050 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/4") - Qty-1000
$272.87
1010-004-0052 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/2") - Qty-1
$0.40
1010-004-0054 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/2") - Qty-25
$9.14
1010-004-0056 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/2") - Qty-100
$33.21
1010-004-0058 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/2") - Qty-250
$78.87
1010-004-0060 Torx Pan Head Self Driller 410 SS (#10-16 x 1-1/2") - Qty-1000
$298.86
