#10-13 Slotted Oval Head Wood Screws Brass

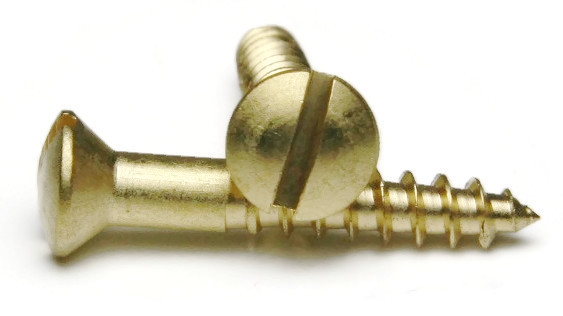

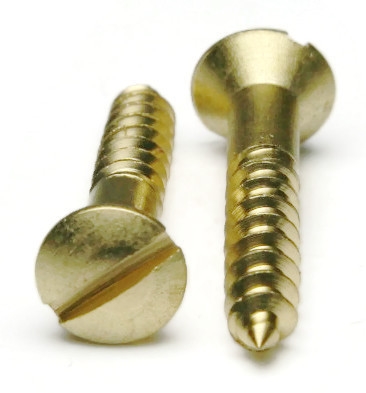

#10-13 Brass Slotted Oval Head Wood Screws

Diameter - Thread Pitch: #10-13


#10 Brass slotted drive oval head wood screws are designed to hold two pieces of wood together tightly and efficiently.

  • Partially threaded with a shoulder
  • Designed to slide through top piece of wood and provide a strong hold
  • Features a countersunk and undercut head
  • Slotted Drive Style
  • Very corrosion resistant but also very soft material
  • Not suitable for all applications
  • Used in marine, saltwater, high heat, and other harsh environments
NOTE: Color and sheen may vary for brass and silicon bronze fasteners.


Wood Screws are usually threaded about 2/3 of length; short lengths may be full thread.

Sizes Listed As:
Diameter x Length from Top of Head

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Slotted Oval Head Wood Screws Brass - #10 x 1"
SKU #4300-004-0002
Slotted Oval Head Wood Screws Brass - #10 x 1"
SKU #4300-004-0002
1
NA
25
$11.75 (0.47/ea)
100
$38.00 (0.38/ea)
1000
$350.00 (0.35/ea)
Subtotal: $0.00 /
Slotted Oval Head Wood Screws Brass - #10 x 1-1/4"
SKU #4300-004-0012
Slotted Oval Head Wood Screws Brass - #10 x 1-1/4"
SKU #4300-004-0012
1
NA
25
$12.50 (0.5/ea)
100
$44.00 (0.44/ea)
1000
$420.00 (0.42/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$1.84 (1.84/ea)
10
$15.60 (1.56/ea)
25
$35.25 (1.41/ea)
50
$64.50 (1.29/ea)
Subtotal: $0.00 /
1
$1.84 (1.84/ea)
10
$15.60 (1.56/ea)
25
$35.25 (1.41/ea)
50
$64.50 (1.29/ea)
Subtotal: $0.00 /
1
NA
25
$5.00 (0.2/ea)
100
$13.00 (0.13/ea)
1000
$110.00 (0.11/ea)
Subtotal: $0.00 /

Product Specifications
Color
Yellow
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Diameter
#10
Drive Style
Slotted
Head Diameter
Max 0.385
Head Style
Oval
Material
Brass
Product Type
Wood Screws
System of Measurement (Unit)
Inch
Thread Diameter
(#10) Max 0.194 - Min 0.164
Thread Direction
Right Hand
Thread Pitch (Count)
13 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
