1/4"-20 Zinc Plated Toggle Wing Anchors

1/4"-20 Zinc Plated Toggle Wing Anchors

Diameter - Pitch: 1/4"-20


Allowable Load Tolerances

  • Wallboard 3/8": 55lbs Tension and Shear
  • Wallboard 1/2": 60lbs Tension and Shear
  • Wallboard 5/8": 65lbs Tension and Shear
  • Wallboard 3/4": 80lbs Tension, 75lbs Shear
  • Hollow Concrete Masonry: 70lbs Tension, 120lbs Shear

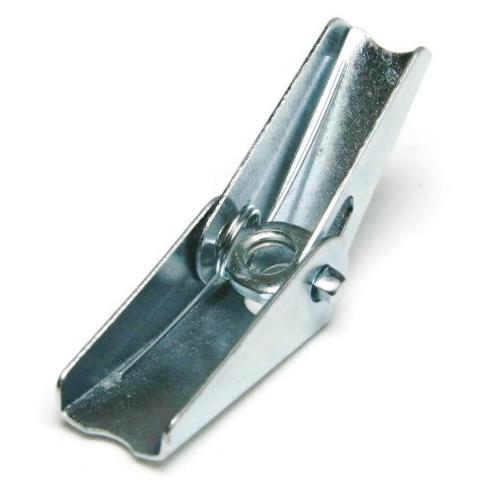

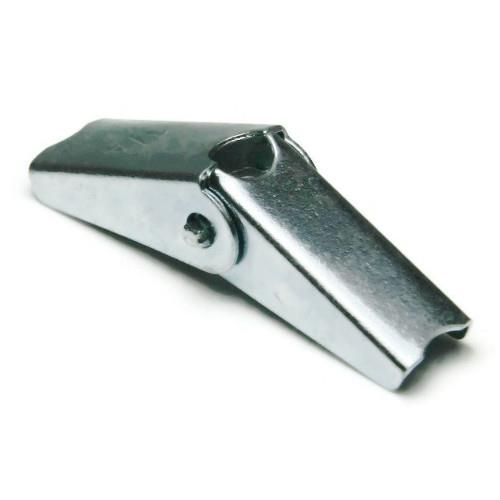

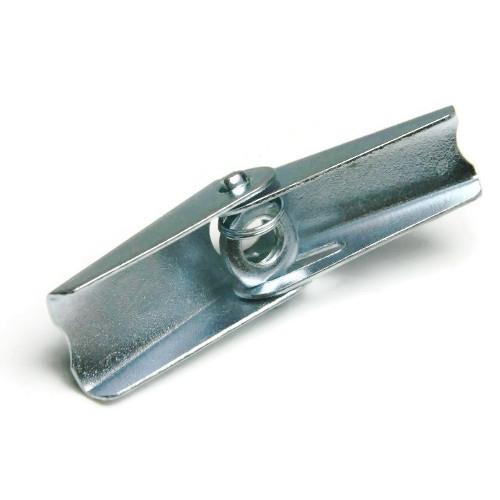

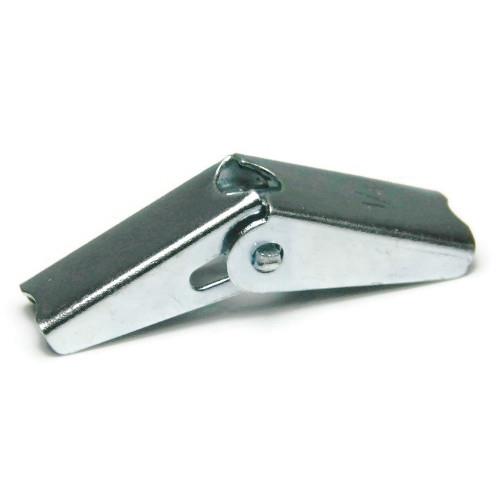

A Toggle spring wing anchor, also called a toggle nut, in zinc plated steel is an anchor used in hollow wall applications (walls with space on the other side) such as drywall and concrete blocks (also called cinder blocks) or any hollow concrete masonry unit. Toggle wings are often used to replace spring wings used in the installations of toggle bolts. Toggle nuts are used with machine screws through pre-drilled holes.

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Toggle Wings Zinc - 1/4"-20
SKU #1084-004-0002
Toggle Wings Zinc - 1/4"-20
SKU #1084-004-0002
1
NA
25
$9.50 (0.38/ea)
100
$35.00 (0.35/ea)
1000
$330.00 (0.33/ea)
Subtotal: $0.00 /

Product Specifications
Additional Sizing Info
Compatible with 1/4"-20 Machine Screws / Bolts (Not Included)
Color
Silver
Finish
Zinc Plated
Head Style
Wing
Material
Steel
Other
Body Span (Open): Max 2.185 - Min 2.067
Wing Clearance: 1-1/2"
Product Type
Toggle Spring Wing Anchors
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
