1/4"-20 Zinc Plated Plain Pattern Eye Bolts

1/4"-20 Zinc Plated Plain Pattern Eye Bolts

Forged Lifting Hardware

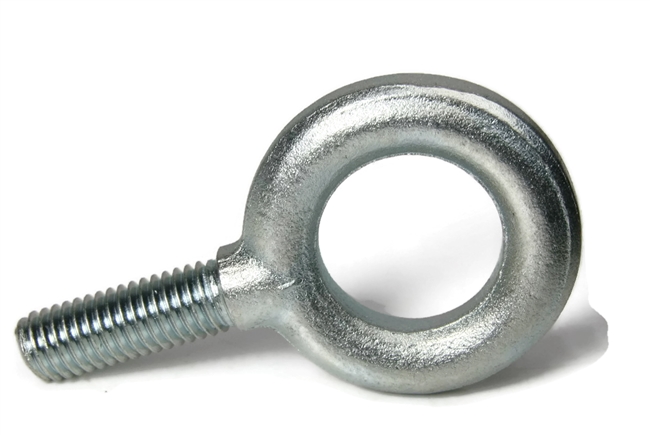

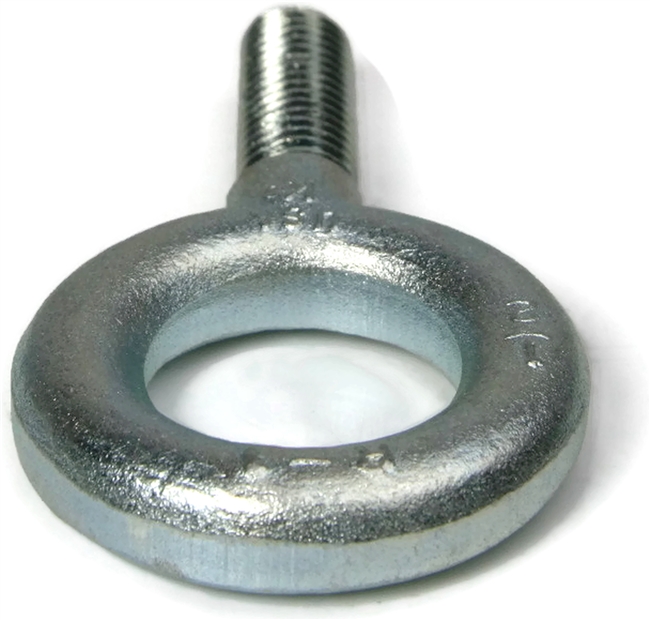

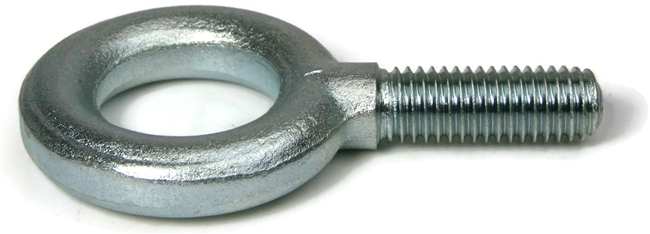

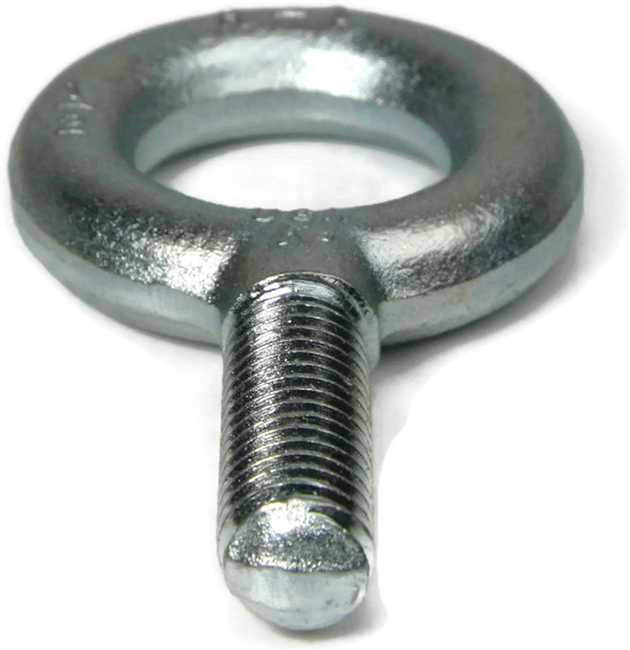

1/4"-20 Zinc Plated Plain Pattern Eye Bolts are a threaded rod with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial applications.

  • Feature a ring directly above the threaded rod portion of the fastener
  • Drop Forged for a durable corrosion resistant finish
  • Domestic Forged USA Made Product
  • ASTM A489 and UNC-2A
  • Zinc plated to add an extra layer of corrosion resistance
Please Note: Eye Bolts are not eligible for free shipping.

If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.

Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.

Sizes listed as Shank Diameter - Thread Pitch x Shank Length.
Proudly Made in The USA

Please Note: This item is not eligible for free shipping

Select Products Below
Product Specifications
ASTM
A-193-B8
Brand
Ken Forging
Color
Silver
Corrosion Resistant
Yes
Drive Style
External Hex
Eye Bolt Pattern
Plain
Eye Inside Diameter
3/4"
Eye Outside Diameter
1-3/16"
Finish
Zinc Plated
Head Style
Eye
Material
Steel
Product Type
Eye Bolts
Shank Diameter
1/4"
Standards Met
ASTM A-193-B8
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
