1/4"-20 Stainless Steel Wedge Anchors

1/4"-20 Stainless Steel Wedge Anchors

Diameter - Pitch: 1/4"-20


1/4"-20 Stainless Steel Concrete Masonry Wedge Anchors are used to anchor and secure material and equipment to concrete masonry surfaces.

  • Non-corrosive in fresh or rain water applications

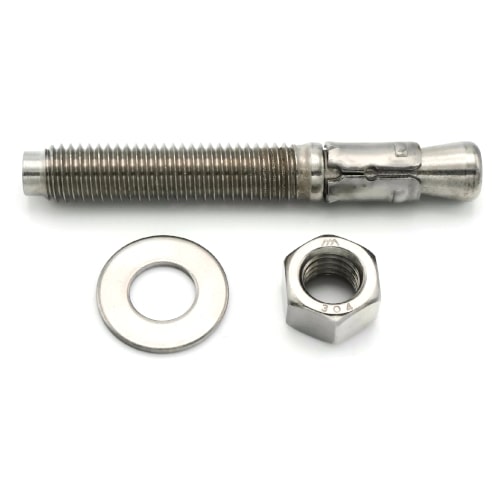

  • Comprised of an anchor, a nut and a washer
  • Commonly used for:
    • Generators
    • Motors
    • Pumps
    • Pipes

Select Products Below
Product Specifications
Across Flats (Width)
7/16"
Application
Anchoring to Masonry Materials
Body Diameter
1/4", Max 0.250 - Min 0.245
Color
Silver
Corrosion Resistant
Yes
Drive Style
Internal Hex (Allen)
Grade
304
Head Style
Socket Cap
Includes Nuts & Washers
Yes
Intended Work Material
Concrete & Masonry Materials
Masonry Drill Bit Size
1/4"
Material
Stainless Steel
Other
Listed As: Diameter - Thread Pitch x Length from Tip to Tip
Product Type
Wedge Anchors
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Wrench Size
7/16"
