1-3/4"-5 Hot Dip Galvanized Plain Pattern Eye Bolts

1-3/4"-5 Hot Dip Galvanized Plain Pattern Eye Bolts

Forged Lifting Hardware | Hot Dip Galvanized


  • Feature a ring directly above the threaded rod portion of the fastener
  • Drop Forged for a durable corrosion resistant finish
  • Domestic Forged USA Made Product
  • ASTM A489 and UNC-2A
  • Hot Dipped Galvanized steel provides superior corrosion resistance
  • Due to the finishing process for Hot Dip Galvanized fasteners, it is recommended to only use Hot Dip Galvanized fasteners with Hot Dip Galvanized fasteners and not mix metals. This can create threading and durability issues.

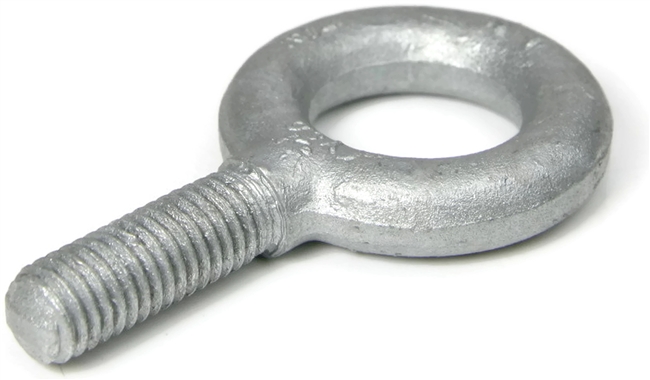

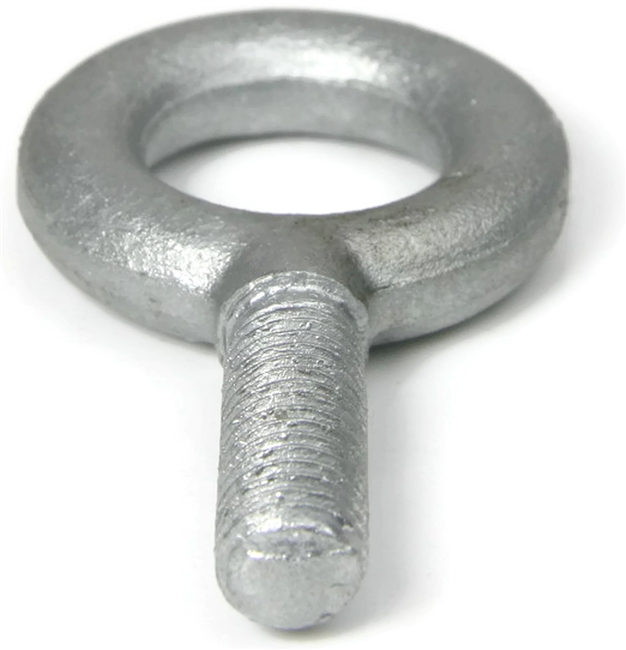

A 1-3/4"-5 Hot Dip Galvanized Plain Pattern Eye Bolt is a threaded rod with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial applications.

If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.

Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.

Sizes listed as Shank Diameter - Thread Pitch x Shank Length.
Proudly Made in The USA

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Eye Bolt Plain Pattern HD Galvanized - 1-3/4"-5 x 3-3/4"
SKU #1508-004-0002
Eye Bolt Plain Pattern HD Galvanized - 1-3/4"-5 x 3-3/4"
SKU #1508-004-0002
1
$158.34 (158.34/ea)
10
$1,545.80 (154.58/ea)
100
$14,704.00 (147.04/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$8.58 (8.58/ea)
100
$799.00 (7.99/ea)
1000
$7,860.00 (7.86/ea)
Subtotal: $0.00 /
1
$4.81 (4.81/ea)
100
$357.00 (3.57/ea)
1000
$3,250.00 (3.25/ea)
Subtotal: $0.00 /
1
$132.10 (132.1/ea)
10
$1,289.50 (128.95/ea)
Subtotal: $0.00 /

Product Specifications
ASTM
A-193-B8
Color
Gray
Corrosion Resistant
Yes
Drive Style
External Hex
Eye Bolt Pattern
Plain
Eye Inside Diameter
2-7/8"
Eye Outside Diameter
6-1/16"
Finish
Hot Dip Galvanized
Head Style
Eye
Material
Steel
Product Type
Eye Bolts
Shank Diameter
1-3/4"
Standards Met
ASTM A-193-B8
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
5 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
