Plow Bolts, Flat Head, Zinc Plated Steel, Grade 5, 1/2"-13

Plow Bolts, Flat Head, Zinc Plated Steel, Grade 5, 1/2"-13

Diameter - Thread Pitch: 1/2"-13

  • Square section grips into the part being fixed
  • Grade 5 Steel
  • Preventing the bolt from turning when the nut is tightened
  • Commonly used in heavy duty equipment to provide a smooth head surface
  • Known for attaching the cutting edge of a plow to the plow blade, such as on a snowplow, grader, or bulldozer

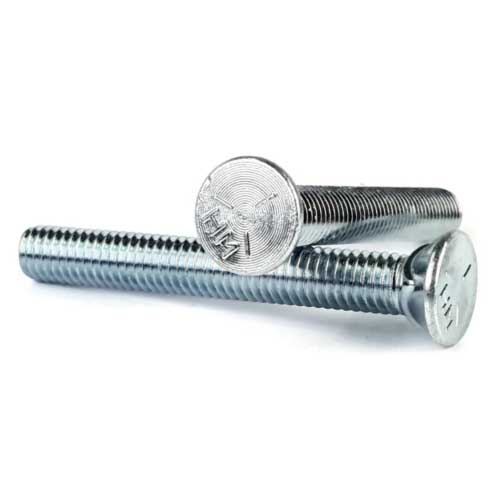

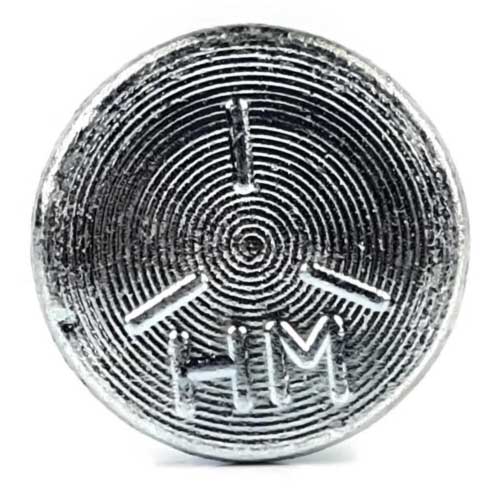

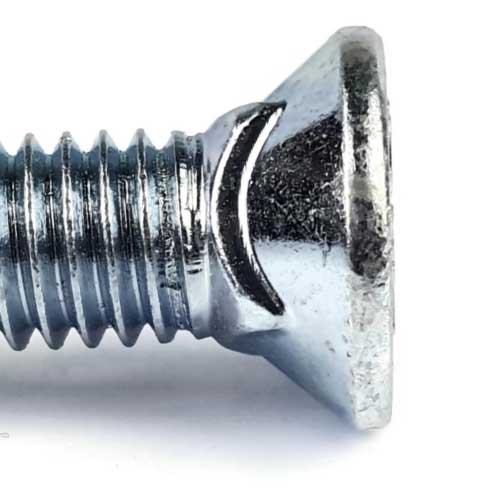

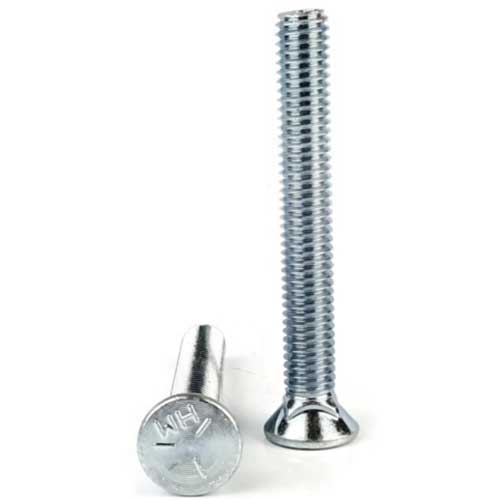

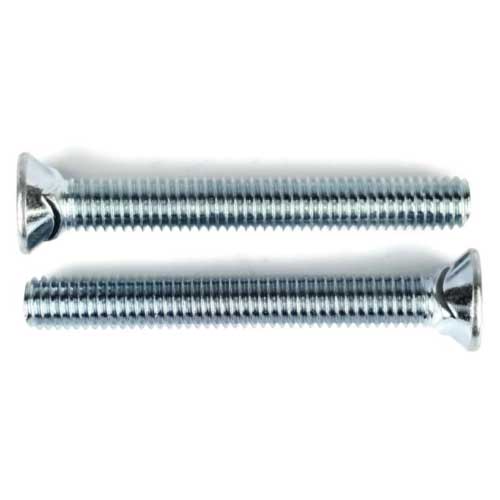

1/2"-13 Zinc plated steel plow bolts have a non-protruding #3 flat head and the shank is topped by a short countersunk square section under the head.

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
1/2"-13 x 2" FT
SKU #2080-004-0002
1/2"-13 x 2" FT
SKU #2080-004-0002
1 $0.79 (0.79/ea)
100 $66.00 (0.66/ea)
1000 $600.00 (0.6/ea)
Subtotal: $0.00 /
1/2"-13 x 3" FT
SKU #2080-004-0012
1/2"-13 x 3" FT
SKU #2080-004-0012
1 $1.07 (1.07/ea)
100 $89.00 (0.89/ea)
1000 $820.00 (0.82/ea)
Subtotal: $0.00 /

Frequently Used With

Flat Washers Zinc - USS - 1/2" (ID 0.562 x OD 1.375 x THK 0.112)
Flat Washers Zinc - USS - 1/2" (ID 0.562 x OD 1.375 x THK 0.112) 1102-004-0052
Flat Washers Zinc - USS - 1/2
1 $0.18 (0.18/ea)
100 $12.00 (0.12/ea)
1000 $100.00 (0.1/ea)
Subtotal: $0.00
Hex Finished Nuts Grade 5 Zinc - 1/2"-13 UNC
Hex Finished Nuts Grade 5 Zinc - 1/2"-13 UNC 1100-002-0082
Hex Finished Nuts Grade 5 Zinc - 1/2
1 $0.30 (0.3/ea)
100 $20.00 (0.2/ea)
1000 $160.00 (0.16/ea)
Subtotal: $0.00
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz.
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz. 1050-106
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz.
Anti Seize MRO Solution 2400 - 8oz Prevent Fastener Galling & Locking Up with Anti-Seize Lubricants
Our Price: $18.11
Subtotal: $0.00
Product Specifications
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Finish
Zinc Plated
Grade
5
Head Diameter
Max 0.945 - Min 0.890
Head Height
Max 0.417 - Min 0.375
Head Style
Flat
Material
Steel
Product Type
Plow Bolt
Square Neck Width
Max 0.515 - Min 0.500
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
13 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
