Ken Forging Eye Bolts, Plain Pattern, Zinc Plated Steel, 1-1/4"-7 x 3", USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| To 9 |
$59.08*
|
| To 99 |
$57.66*
|
| From 100 |
$54.85*
|
- Brand: Ken Forging
- ASTM: A-193-B8
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1-1/4"
- Drive Style: External Hex
- Eye Bolt Pattern: Plain
- Eye Inside Diameter: 2-3/16"
- Eye Outside Diameter: 4-7/16"
- Head Type: Eye
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Zinc Plated
- Fit: 2A
- Head Style: Eye
- Length: 3"
- Material: Steel
- Part Number: 720572107142
- Product Type: Eye Bolts
- Shank Diameter: 1-1/4"
- Size System: US
- Size Type: Regular
- Standards Met: ASTM A-193-B8
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 7 Per Inch
- Thread Size: 1-1/4"-7
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Feature a ring directly above the threaded rod portion of the fastener
- Drop Forged for a durable corrosion resistant finish
- Domestic Forged USA Made Product
- ASTM A489 and UNC-2A
- Zinc Plating adds an extra layer of corrosion resistance

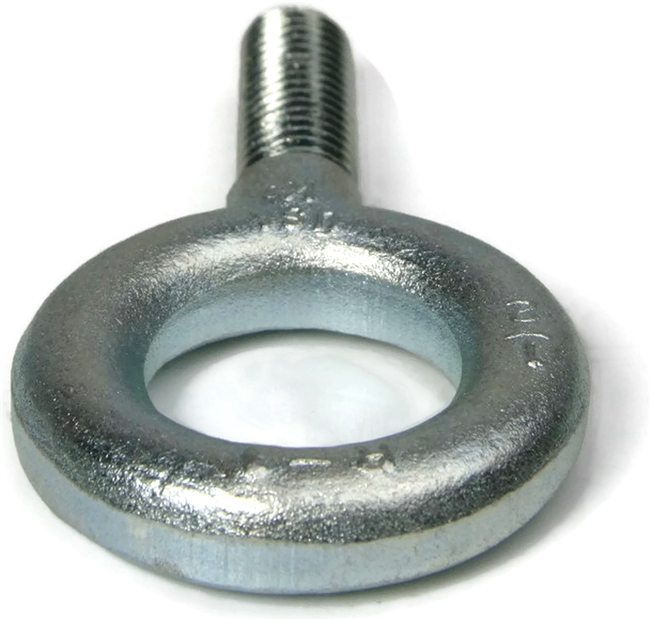

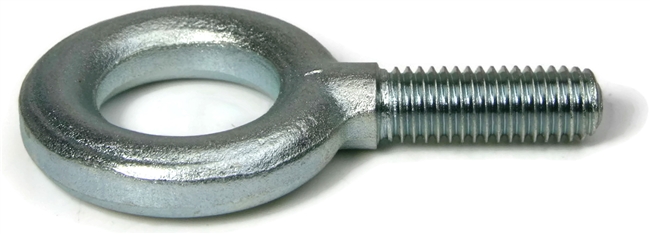

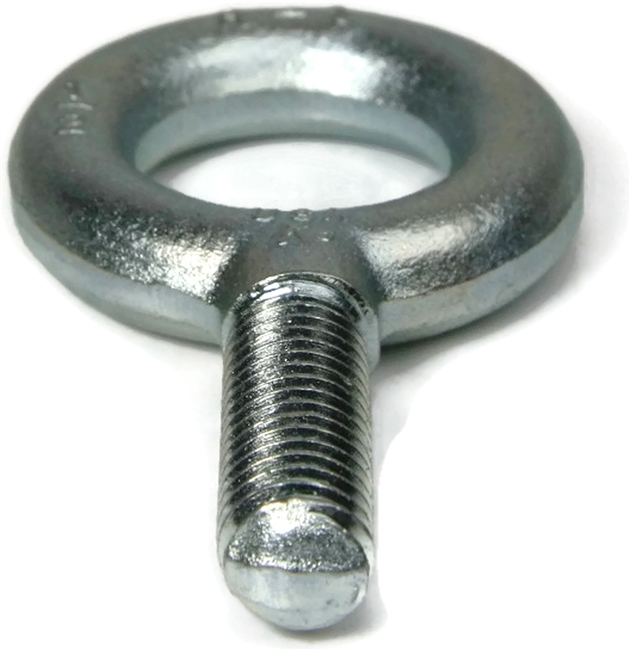

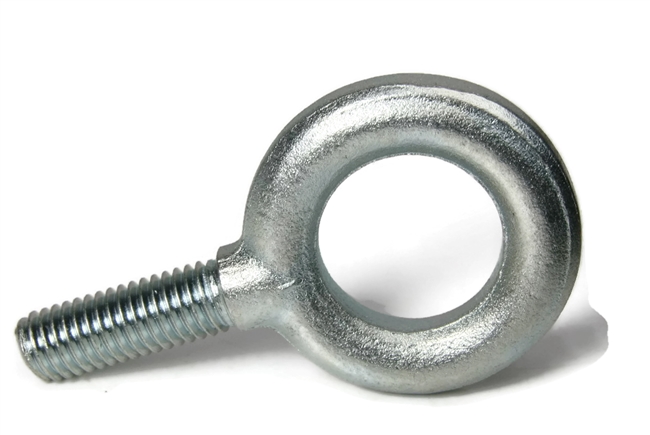

A 1-1/4"-7 Zinc Plated Plain Pattern Eye Bolt is a threaded rod with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial applications.
If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.
Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.
Sizes listed as Shank Diameter - Thread Pitch x Shank Length. Proudly Made in The USA
Product number:
1510-024-0002
