Ken Forging Eye Bolts, Shoulder Pattern, 8620 Alloy Steel, 1-1/4"-7 x 3", USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| To 9 |
$162.73*
|
| To 99 |
$146.46*
|
| From 100 |
$134.76*
|
- Brand: Ken Forging
- ASTM: A-193-B8
- Color: Black
- Condition: New
- Diameter: 1-1/4"
- Drive Style: External Hex
- Eye Bolt Pattern: Shoulder
- Eye Inside Diameter: 2-3/16"
- Eye Outside Diameter: 4-7/16"
- Head Type: Eye
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: Alloy 8620
- Head Style: Eye
- Length: 3"
- Material: Steel
- Part Number: 720572108422
- Product Type: Eye Bolts
- Shank Diameter: 1-1/4"
- Size System: US
- Size Type: Regular
- Standards Met: ASTM A-193-B8
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 7 Per Inch
- Thread Size: 1-1/4"-7
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- USA Made
- ASTM F 541 and UNC-2A
- 8620 Alloy steel is favored for its hardness and high tensile strength

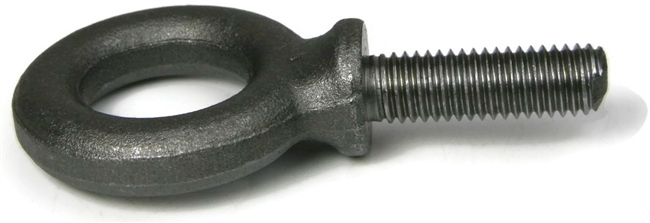

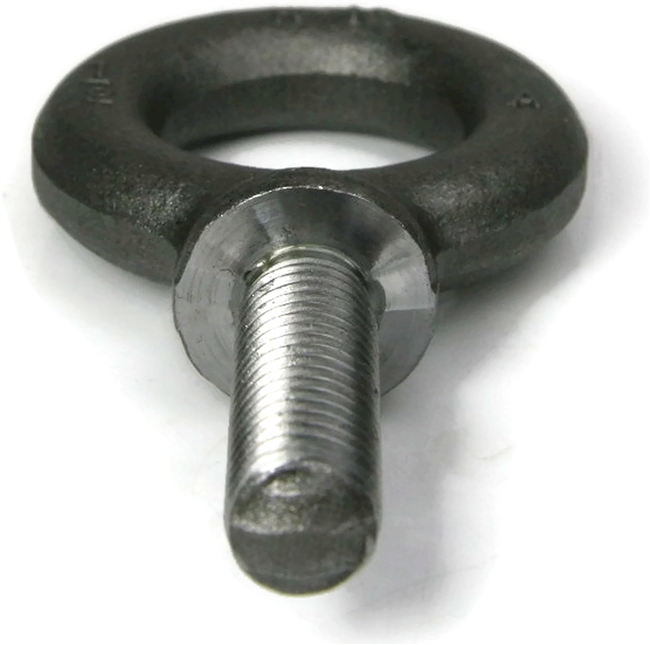

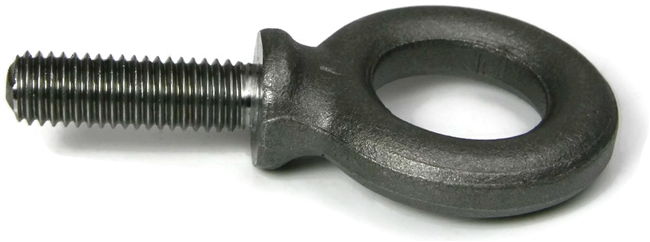

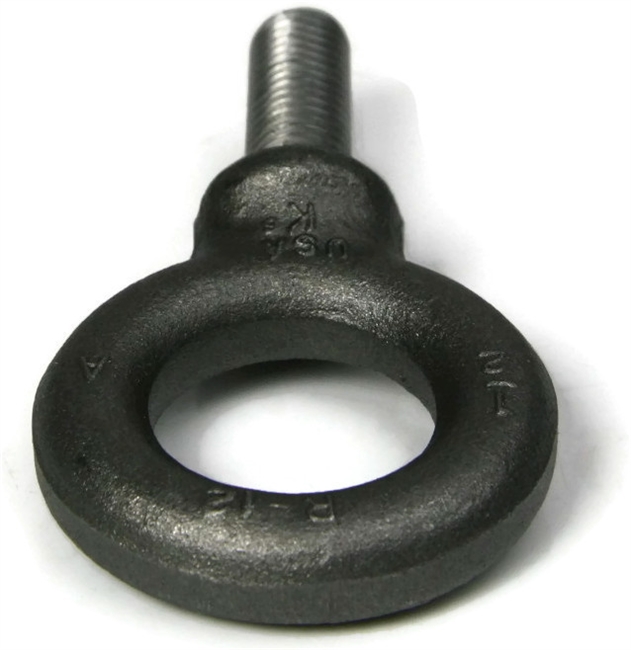

1-1/4"-7 | 8620 Steel Shoulder Pattern Eye Bolts have a threaded shank with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial rigging applications. In a shoulder pattern Eye Bolt, there is a shoulder between the shank and the eye. Shoulder pattern variety features a shoulder between the ring and the shank.
If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.
Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.
Sizes listed as Shank Diameter - Thread Pitch x Shank Length
