#0-80 Socket Head Screws 316 Stainless Steel

#0-80 | 316 Stainless Steel Socket Cap Screws

Screw Diameter - Thread Pitch: #0-80

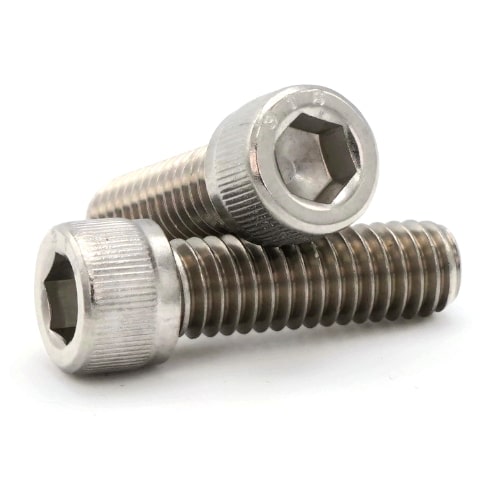

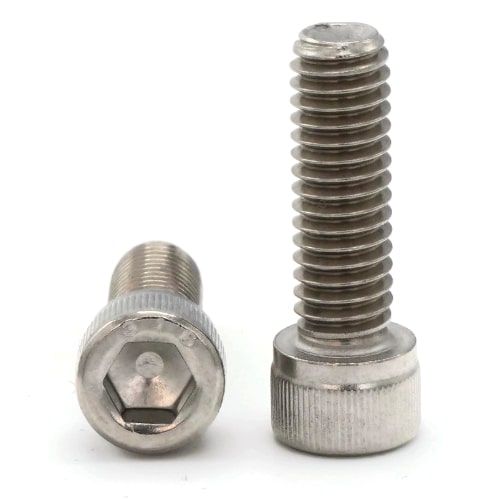

#0-80 Stainless steel knurled head socket cap screws are driven by an allen or hex wrench.

  • Commonly referred to as allen bolts, socket head cap screws, or socket head screws
  • externally grooved cap head
  • can be driven by hand
  • cylindrical head
  • head diameter is nominally 1.5 times or more that of the screw shank (major) diameter
  • 316 Stainless steel offers superior corrosion and rust resistance
  • Ideal for marine and salt water environments
Stainless steel (grade 316) knurled head socket cap screws corrosion resistance is greater than 18-8 stainless, which is why we recommend using 316 stainless steel fasteners for salt water application.


Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head
FT = Full Thread
PT = Partial Thread

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
#0-80 x 1/8" Socket Head Screws 316 Stainless Steel
SKU #2010-078-002
#0-80 x 1/8" Socket Head Screws 316 Stainless Steel
SKU #2010-078-002
1
NA
25
$7.75 (0.31/ea)
100
$27.00 (0.27/ea)
1000
$240.00 (0.24/ea)
Subtotal: $0.00 /
#0-80 x 3/16" Socket Head Screws 316 Stainless Steel
SKU #2010-078-004
#0-80 x 3/16" Socket Head Screws 316 Stainless Steel
SKU #2010-078-004
1
NA
25
$7.50 (0.3/ea)
100
$28.00 (0.28/ea)
1000
$250.00 (0.25/ea)
Subtotal: $0.00 /
#0-80 x 1/4" Socket Head Screws 316 Stainless Steel
SKU #2010-078-006
#0-80 x 1/4" Socket Head Screws 316 Stainless Steel
SKU #2010-078-006
1
NA
25
$7.00 (0.28/ea)
100
$25.00 (0.25/ea)
1000
$230.00 (0.23/ea)
Subtotal: $0.00 /
#0-80 x 3/8" Socket Head Screws 316 Stainless Steel
SKU #2010-078-008
#0-80 x 3/8" Socket Head Screws 316 Stainless Steel
SKU #2010-078-008
1
NA
25
$7.00 (0.28/ea)
100
$25.00 (0.25/ea)
1000
$230.00 (0.23/ea)
Subtotal: $0.00 /
#0-80 x 1/2" Socket Head Screws 316 Stainless Steel
SKU #2010-078-010
#0-80 x 1/2" Socket Head Screws 316 Stainless Steel
SKU #2010-078-010
1
NA
25
$8.25 (0.33/ea)
100
$31.00 (0.31/ea)
1000
$300.00 (0.3/ea)
Subtotal: $0.00 /




Product Specifications
Chamfer on Radius
Max 0.003
Color
Silver
Corrosion Resistant
Yes
Diameter
#0
Drive Style
Internal Hex (Allen)
Grade
316
Head Diameter
Max 0.096 - Min 0.091
Head Height
0.06
Head Side Height
Min 0.054
Head Style
Socket Cap
Hex Drive
0.050"
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.060 - Min 0.057
Product Type
Socket Cap Screws
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Length Max
7/8" (Lengths over 7/8" will have a Shoulder / Partial Thread)
Thread Pitch (Count)
80 Per Inch
Thread Standard
UNF
Thread Type
Fine
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
