Why Choose Plain Pattern Eye Bolts?
Plain pattern eye bolts are useful when an application needs a forged eye bolt for a straight, in-line pull. The looped eye provides an attachment point for compatible hooks, links, cable, rope, chain, or lifting hardware, while the threaded shank installs into a tapped hole or through a compatible mounting point when used with matching hardware.
This category includes Ken Forging plain pattern eye bolts in 8620 steel, zinc plated steel, hot dipped galvanized steel, 304 stainless steel, and 316 stainless steel options. These eye bolts are commonly selected for lifting, rigging, tie-down, positioning, and secure attachment applications where the load direction is straight and the correct working load limit is confirmed before use.
Common Uses for Plain Pattern Eye Bolts
Plain pattern eye bolts are commonly used for straight-line lifting points, equipment attachment points, fixtures, tie-downs, shop applications, industrial hardware, maintenance work, and general rigging setups where a threaded eye attachment is needed.
They should be selected carefully based on the load, thread size, material, finish, installation depth, base material, and pull direction. Plain pattern eye bolts should not be used for angular lifting or side loading. If the application pulls at an angle, compare shoulder pattern eye bolts or swivel hoist rings.
How Plain Pattern Eye Bolts Work
Plain pattern eye bolts use a threaded shank that installs into a compatible tapped hole, nut, or threaded mounting point. The eye creates an attachment point for compatible rigging or fastening hardware.
The eye bolt should be installed so the load pulls straight in line with the shank. Proper installation matters because thread engagement, seating, load direction, working load limit, and inspection all affect safe use.
Plain Pattern Eye Bolts for Straight-Line Pulls
Plain pattern eye bolts are intended for straight-line loading. This means the load should pull in the same direction as the threaded shank, without side loading or angular force.
If the load angle changes or the application requires an angled pull, do not treat a plain pattern eye bolt as interchangeable with a shoulder eye bolt. Choose lifting hardware that is rated for the load direction and follow the manufacturer’s rated capacity guidance.
Plain Pattern Eye Bolts vs Shoulder Pattern Eye Bolts
Plain pattern eye bolts do not have a shoulder under the eye. They are used for straight, in-line pulls where the load is aligned with the shank.
Shoulder pattern eye bolts include a shoulder that helps support certain angular loading applications when used within the manufacturer’s rating and installation guidance. Choose shoulder pattern eye bolts when the application requires limited angular loading, and choose plain pattern eye bolts only when the pull is straight in line with the shank.
Plain Pattern Eye Bolts vs Plain Pattern Eye Bolts with Nut
Plain pattern eye bolts are threaded eye bolts that may be used with compatible tapped holes or separate matching hardware depending on the installation. Plain pattern eye bolts with nut include a matching nut for through-hole fastening applications.
Choose the version based on the installation method. If the eye bolt threads into a tapped hole, confirm the thread engagement and base material. If the eye bolt passes through a hole, use the correct nut and washer arrangement required for the application.

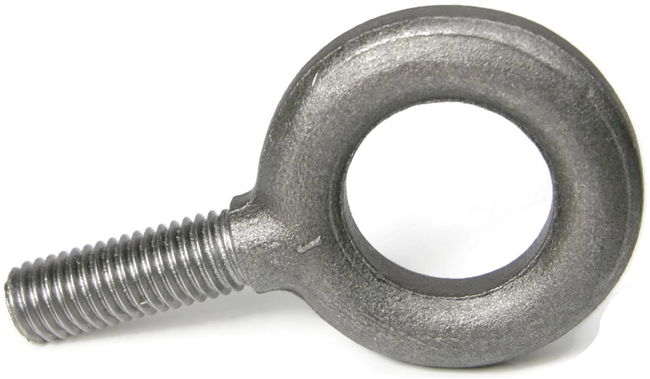

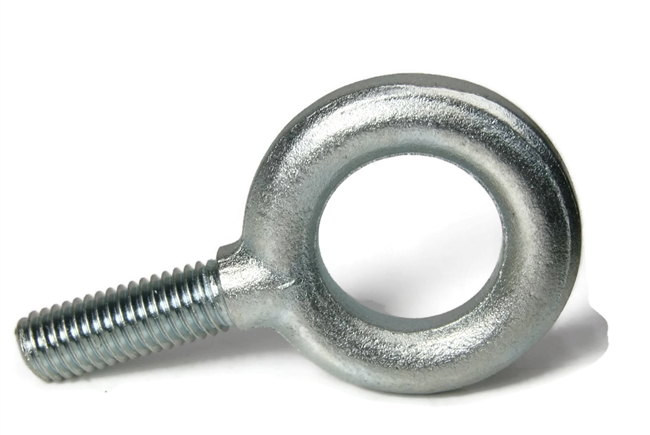

Steel, Zinc Plated and Hot Dipped Galvanized Plain Pattern Eye Bolts
Steel plain pattern eye bolts are commonly selected for general lifting and attachment applications where the material and rated capacity match the job. Zinc plated steel provides a clean plated finish for dry indoor or less corrosive environments.
Hot dipped galvanized plain pattern eye bolts provide a heavier zinc coating for better corrosion resistance than standard zinc plating in many outdoor or exposed applications. Choose the finish based on the environment, mating hardware, and project requirements.

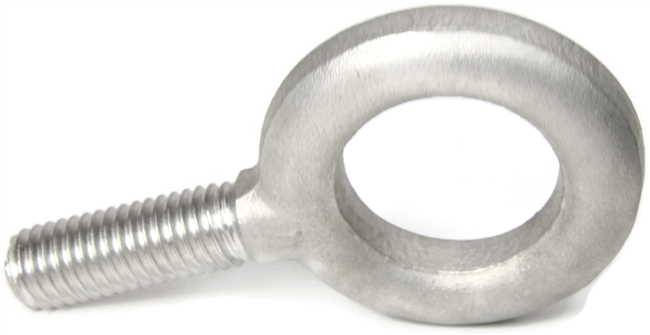

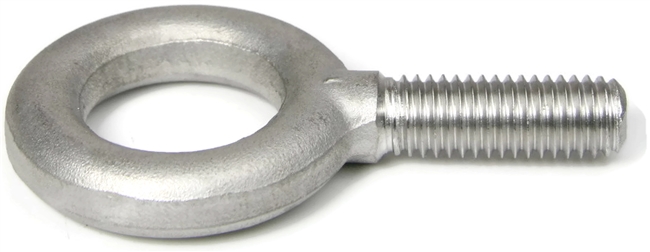

304 and 316 Stainless Steel Plain Pattern Eye Bolts
304 stainless steel plain pattern eye bolts are commonly selected when stainless material and corrosion resistance are useful for the application. They are practical for many indoor, outdoor, damp, and general stainless hardware applications.
316 stainless steel plain pattern eye bolts may be preferred for more corrosive environments, including marine, coastal, chemical, or salt-exposed applications. Choose the stainless grade based on the exposure level, mating hardware, and project requirements.
Thread Sizes and Diameters for Plain Pattern Eye Bolts
Plain pattern eye bolts are available in multiple inch thread sizes and diameters, including options such as 1/4"-20, 3/8"-16, 1/2"-13, 5/8"-11, 3/4"-10, 1"-8, and larger sizes depending on the material and product.
Choose the eye bolt size based on the required working load limit, thread size, shank length, installation method, base material, and compatible rigging hardware. Always confirm the exact product dimensions and rated capacity before installation.
Important Safety Considerations for Plain Pattern Eye Bolts
Plain pattern eye bolts should be used only in applications where the load pulls straight in line with the shank. Do not side load a plain pattern eye bolt or use it for angular lifting.
Before use, inspect the eye bolt for bent shanks, stretched eyes, cracked material, damaged threads, corrosion, wear, or missing markings. Do not use damaged or questionable lifting hardware. Always follow the manufacturer’s rated capacity, installation instructions, and applicable safety requirements.
How to Choose the Right Plain Pattern Eye Bolt
Choose the plain pattern eye bolt based on the load direction, working load limit, thread size, shank length, material, finish, corrosion requirements, installation method, base material, and compatible lifting or securing hardware.
If the load is a straight in-line pull, choose the plain pattern eye bolt that matches the required capacity and environment. If the load is angled, side loaded, rotating, or changes direction during use, compare shoulder pattern eye bolts or swivel hoist rings instead.
Related Lifting Hardware Categories
Browse related lifting hardware categories to compare plain pattern eye bolts, plain pattern eye bolts with nut, shoulder pattern eye bolts, shoulder pattern eye bolts with nut, eye nuts, pad eyes, D-rings, clips, clamps, and other lifting hardware.
- Lifting Hardware
- Eye Bolts
- Plain Pattern Eye Bolts
- Plain Pattern Eye Bolts with Nut
- Shoulder Pattern Eye Bolts
- Shoulder Pattern Eye Bolts with Nut
- Eye Nuts
- Pad Eyes
- D-Rings & Clips
- Clamps
Plain Pattern Eye Bolt FAQs
What are plain pattern eye bolts?
Plain pattern eye bolts are forged eye bolts with a looped eye and threaded shank used for straight-line lifting, securing, and attachment applications.
When should I use plain pattern eye bolts?
Use plain pattern eye bolts when the load pulls straight in line with the threaded shank and the eye bolt size, material, installation method, and working load limit match the application.
Can plain pattern eye bolts be used for angular lifts?
No. Plain pattern eye bolts are not recommended for angular load applications. For angled pulls, compare shoulder pattern eye bolts or swivel hoist rings.
What is the difference between plain pattern and shoulder pattern eye bolts?
Plain pattern eye bolts do not have a shoulder and are used for straight in-line pulls. Shoulder pattern eye bolts include a shoulder and may be used for certain angular loading applications when properly rated and installed.
What materials are available for plain pattern eye bolts?
Plain pattern eye bolt options may include 8620 steel, zinc plated steel, hot dipped galvanized steel, 304 stainless steel, and 316 stainless steel depending on the size and product.
Are stainless steel plain pattern eye bolts better for outdoor use?
Stainless steel plain pattern eye bolts are commonly selected when corrosion resistance is important. 316 stainless steel may be preferred for more corrosive marine, coastal, chemical, or salt-exposed environments.
How do I inspect plain pattern eye bolts before use?
Inspect plain pattern eye bolts for bending, stretching, cracks, damaged threads, corrosion, wear, deformation, or missing markings. Do not use damaged or questionable lifting hardware.
How do I choose the right plain pattern eye bolt?
Choose the eye bolt based on the load direction, working load limit, thread size, shank length, material, finish, corrosion requirements, installation method, base material, and compatible lifting or securing hardware.
