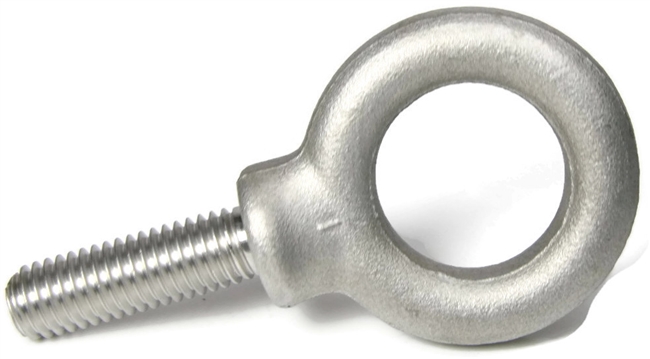

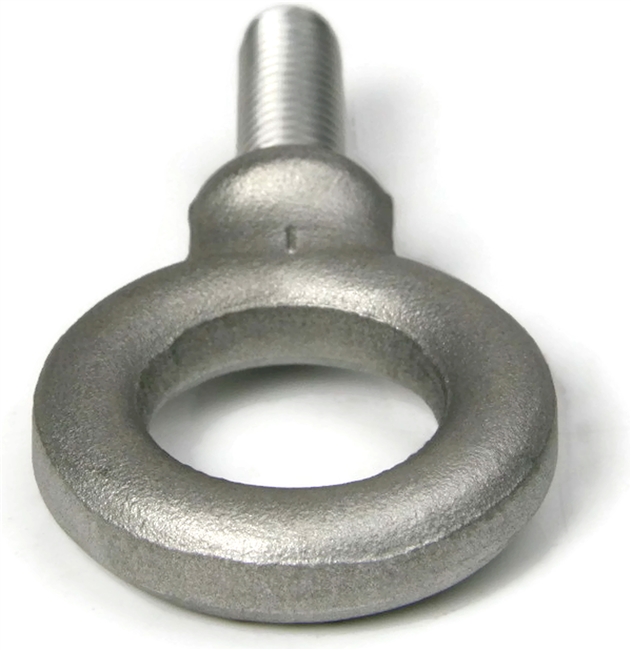

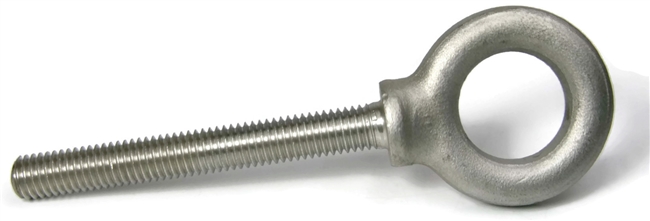

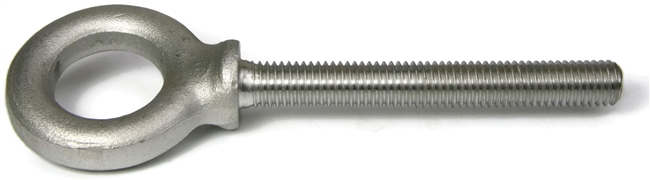

Ken Forging Eye Bolts, Shoulder Pattern, Stainless Steel 316, 1-1/4"-7 x 3", USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| 1 – 9 |
$212.26*
|
| 10 – 99 |
$195.30*
|
| 100+ |
$179.68*
|
- Brand: Ken Forging
- ASTM: A-193-B8
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1-1/4"
- Drive Style: External Hex
- Eye Bolt Pattern: Shoulder
- Eye Inside Diameter: 2-3/16"
- Eye Outside Diameter: 4-7/16"
- Head Type: Eye
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 316
- Head Style: Eye
- Length: 3"
- Marine Grade: Yes
- Material: Stainless Steel
- Part Number: 720572103038
- Product Type: Eye Bolts
- Shank Diameter: 1-1/4"
- Size System: US
- Size Type: Regular
- Standards Met: ASTM A-193-B8
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 7 Per Inch
- Thread Size: 1-1/4"-7
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- USA Made
- ASTM A489 and UNC-2A
- 316 Stainless steel offers superior corrosion and rust resistance
- Ideal for exterior environments or when exposed to salt water and marine moisture
1-1/4"-7 | 316 Stainless Steel Shoulder Pattern Eye Bolts have a threaded shank with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial rigging applications. In a shoulder pattern Eye Bolt, there is a shoulder between the shank and the eye. Shoulder pattern variety features a shoulder between the ring and the shank.
If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.
Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.
Sizes listed as Shank Diameter - Thread Pitch x Shank Length
