#10 Phillips Oval Head Sheet Metal Screws 316 Stainless Steel

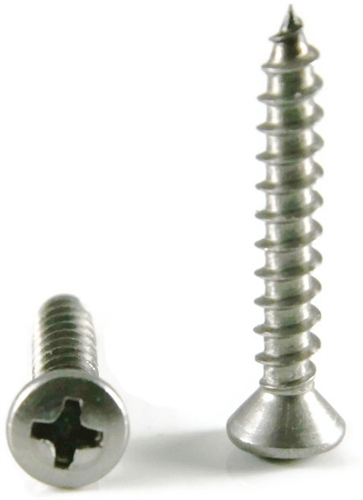

316 Stainless Steel Phillips Oval Head Sheet Metal Screws




316 Stainless Steel Phillips Oval Head Sheet Metal Screws

Diameter - Thread Pitch: #10-12

Sheet metal screws have sharp cutting threads that cut into sheet metal, plastic or wood. The shanks are threaded up to the head or to the undercut. These screws come in many types of heads, pan, flat, truss, oval, etc. Sheet metal screws make excellent fasteners for attaching metal hardware to wood because the fully threaded shank provides good retention in wood.

Phillips Oval Head Sheet Metal Screws in 316 Stainless Steel offer above fastener industry standard of corrosion resistance, making the screw more durable, rust-resistant, and suitable for harsh environments including salt water.

Product Specifications:
Phillips Oval Head Sheet Metal Screws
Thread Diameter Major: (#10) 0.194 - 0.188
Thread Diameter Minor: (#10) 0.133 - 0.126
Thread Pitch: 12 Per Inch (Coarse)
Head Diameter: Max 0.385 - Min 0.340
Countersink: 82 Degrees
Overall Head Height: Max 0.176 - Min 0.148
(From Bottom of Countersink to Top of Head)
Point Type: A
Thread Direction: Right Hand
Material: 316 Stainless Steel
Phillips Drive: #2
ANSI B18.6.3
Tensile: 100,000 - 125,000 PSI
Yield: 55,000 - 75,000 PSI
Hardness: 100 Rockwell B
Elongation: 30%
Reduction: 40%
Diameter x Length from Top of Head


Item# Item Name Our Price Qty Add
34500-0010-0052 Phillips Oval Head SMS 316 Stainless Steel - #10 x 1-1/4" - Qty-1
$0.15
34500-0010-0054 Phillips Oval Head SMS 316 Stainless Steel - #10 x 1-1/4" - Qty-25
$3.26
34500-0010-0056 Phillips Oval Head SMS 316 Stainless Steel - #10 x 1-1/4" - Qty-100
$11.84
34500-0010-0058 Phillips Oval Head SMS 316 Stainless Steel - #10 x 1-1/4" - Qty-250
$28.12
34500-0010-0060 Phillips Oval Head SMS 316 Stainless Steel - #10 x 1-1/4" - Qty-1000
$106.55
