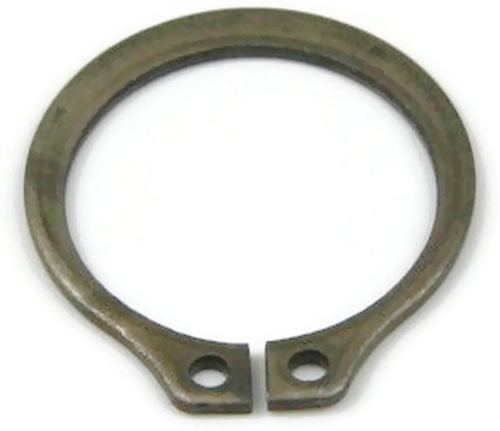

SH-75SS Stainless Steel Snap Rings
Fits Shaft Diameter: 3/4"
- Commonly referred to as a retaining ring, snap ring, or c-clip
- Axially Installed
- A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
- Made of corrosion resistant stainless steel
- Passivated Finish
USA MADE
Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.023"
Diameter
0.704"
Finish
Passivated
Fits Shaft Diameter
(0.750", 3/4", 19.0mm)
Free Diameter
0.693"
Grade
15-7
Manufacturer Part Number
SH-75SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.042"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.046"
