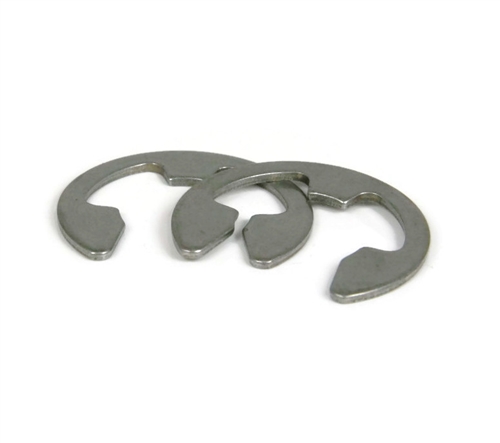

E-14SS 9/64" External Retaining Ring - Stainless Steel

E-14SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 9/64"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • Called "E" rings because of the three prongs on the inside of the ring
  • Make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
9/64" External 'E' Radially Assembled Snap Rings, also called E Clips, E Rings or Retaining Clips are the most popular and widely used style of radial retaining ring.

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

USA Made Retaining Rings

USA MADE FASTENER


Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
E-14SS 9/64" External Retaining Ring - Stainless Steel
SKU #816076-0002
E-14SS 9/64" External Retaining Ring - Stainless Steel
SKU #816076-0002
1
$0.08 (0.08/ea)
100
$7.00 (0.07/ea)
1000
$60.00 (0.06/ea)
Subtotal: $0.00 /




Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.017"
Diameter
0.105"
Finish
Passivated
Fits Shaft Diameter
(0.140", 9/64", 3.6mm)
Free Diameter
0.102"
Grade
15-7
Manufacturer Part Number
E-14SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.025"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.029"
