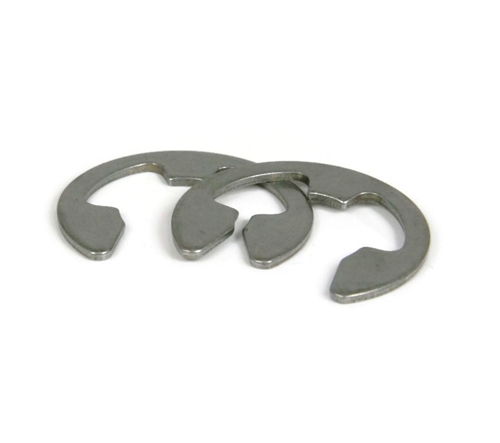

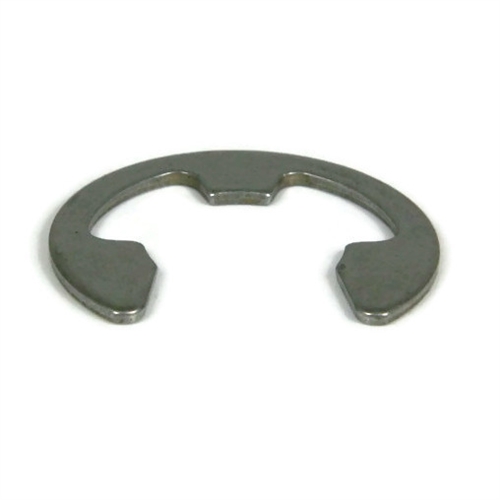

YE-14SS 9/64" External Retaining Ring - Stainless Steel

YE-14SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 9/64"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • Large free diameter
  • The most popular and widely used style of radial snap ring
  • Called "E" rings because of the three prongs on the inside of the ring
  • These rings make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
9/64" External YE models are thicker than standard 'E' Retaining Rings of the same nominal size, thus making them a sturdier product. USA Made Retaining Rings

USA MADE FASTENER

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic


Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
YE-14SS 9/64" External Retaining Ring - Stainless Steel
SKU #816132-0002
YE-14SS 9/64" External Retaining Ring - Stainless Steel
SKU #816132-0002
1
NA
25
$6.25 (0.25/ea)
100
$23.00 (0.23/ea)
1000
$210.00 (0.21/ea)
Subtotal: $0.00 /

Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.015"
Diameter
0.110"
Finish
Passivated
Fits Shaft Diameter
(0.140", 9/64", 3.6mm)
Free Diameter
0.108"
Grade
15-7
Manufacturer Part Number
YE-14SS
Material
Stainless Steel
Product Type
Retaining Rings
Thickness
0.015"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.020"
