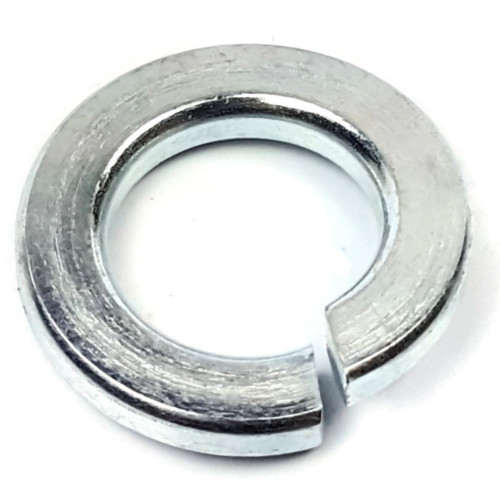

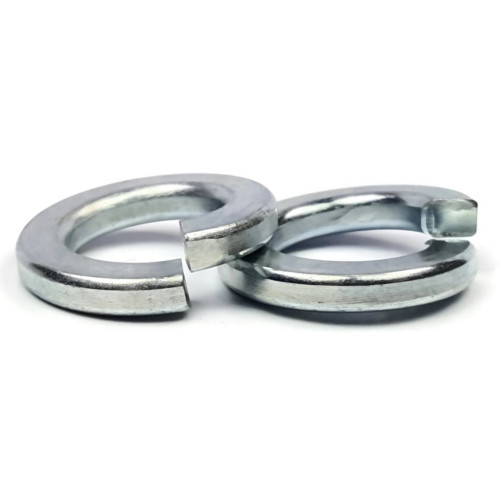

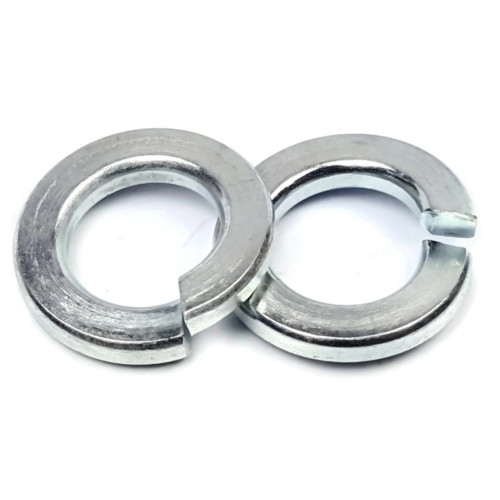

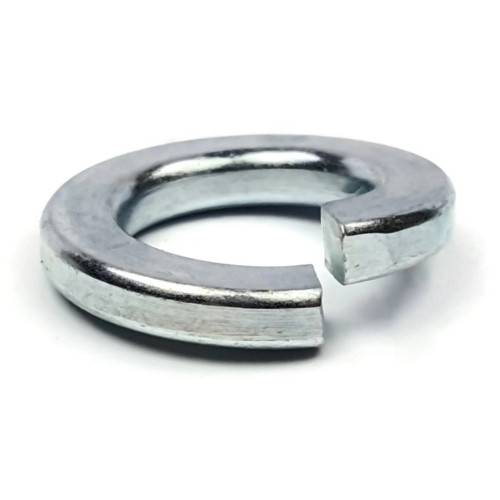

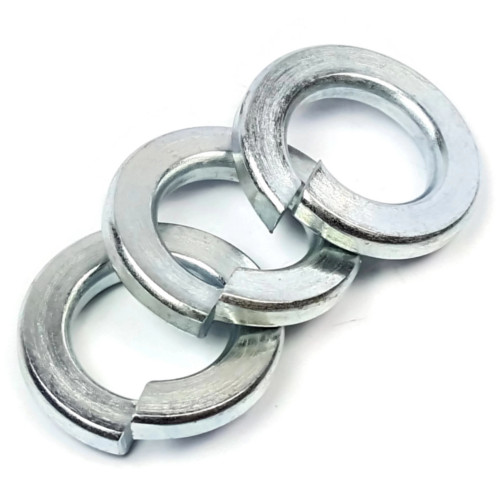

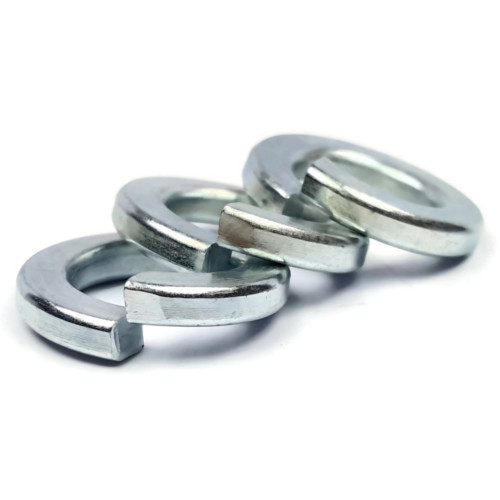

Lock Washers, Split Ring, Zinc Plated Steel, 3/8" (.377 ID x .680 OD x .078 THK)
Medium Profile Split Ring Lock Washers
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.09*
|
| 100 – 999 |
$0.04*
|
| 1000+ |
$0.03*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Diameter: 3/8"
- Finish: Zinc Plated
- Grade: Case Hardened (CR+3)
- Material (Duplicate): Zinc Plated Steel
- Material: Steel
- Outside Diameter (OD): 0.680"
- Part Number: 720572116472
- Pattern: Split Ring Lock Washer
- Product Type: Split Ring Lock Washer
- Size: 3/8"
- Size System: US
- Size Type: Regular
- Standards Met: REACH, RoHS
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Used to prevent fasteners from loosening unintentionally
- Split and bent to create a spring-like effect
- Add extra pressure to fastener assembly resulting in higher resistance to rotation
- Zinc plated steel finish creates corrosion resistant properties
- Actual measurements may vary slightly +/- depending on production run
Zinc Plated Steel Lock Washer Specifications
| Washer Sizes | Inner Diameter (ID) | Outer Diameter (OD) | Washer Thickness |
| #4 | 0.114" | 0.209" | 0.025" |
| #6 | 0.141" | 0.250" | 0.031" |
| #10 | 0.193" | 0.293" | 0.040" |
| #12 | 0.220" | 0.377" | 0.056" |
| 1/4" | 0.252" | 0.487" | 0.062" |
| 5/16" | 0.314" | 0.583" | 0.078" |
| 3/8" | 0.377" | 0.680" | 0.078" |
| 7/16" | 0.440" | 0.776" | 0.109" |
| 1/2" | 0.502" | 0.869" | 0.125" |
| 9/16" | 0.570" | 0.965" | 0.188" |
| 5/8" | 0.628" | 1.072" | 0.156" |
| 3/4" | 0.753" | 1.264" | 0.188" |
| 7/8" | 0.878" | 1.455" | 0.219" |
| 1" | 1.003" | 1.647" | 0.250" |
Product number:
1102-127-0062
