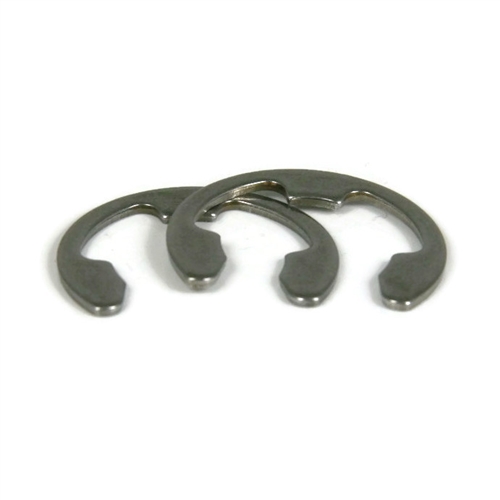

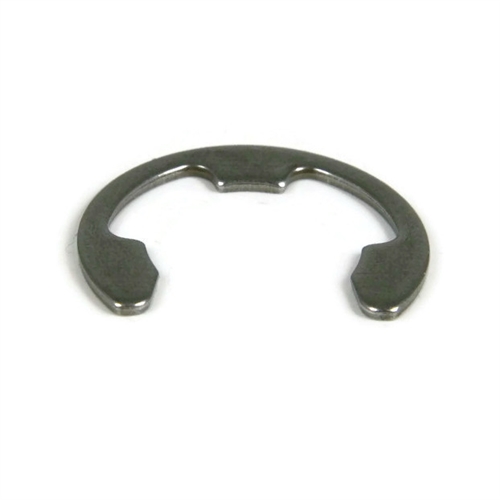

SE-118SS 1-3/16" External Retaining Ring, Stainless Steel
Fits Shaft Diameter: 1-3/16"
| Quantity | Unit price |
|---|---|
| To 99 |
$1.92*
|
| To 999 |
$1.53*
|
| From 1000 |
$1.44*
|
- Brand: Rotor Clip
- Additional Sizing Info: Diameter, Width, Depth, and Free Diameter refer to Groove Size
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Depth: 0.054"
- Diameter: 1.079"
- Finish: Passivated
- Fits Shaft Diameter: (1.188", 1-3/16", 30.2mm)
- Free Diameter: 1.066"
- Grade: 15-7
- Manufacturer Part Number: SE-118SS
- Material: Stainless Steel
- Part Number: 661291582219
- Product Type: Retaining Rings
- Size System: US
- Size Type: Regular
- System of Measurement: Inch/Millimeter
- Thickness: 0.062"
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Width: 0.068"
- Commonly referred to as a retaining ring, snap ring, or c-clip
- The most popular and widely used style of radial snap ring
- Called "E" rings because of the three prongs on the inside of the ring
- These rings make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
USA MADE FASTENER
Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic
Product number:
816126-0002
