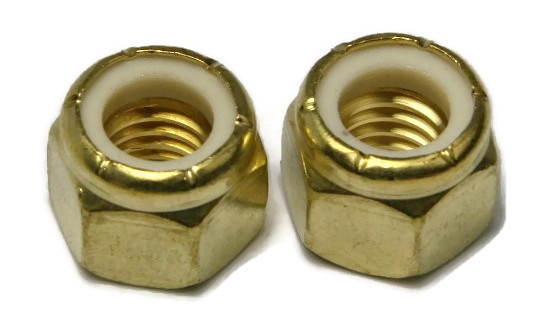

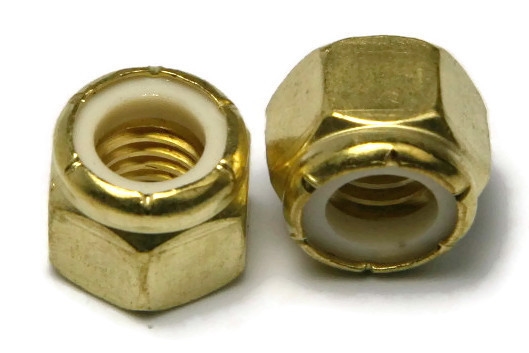

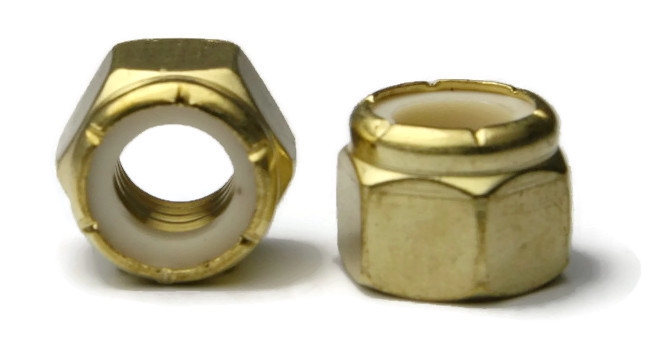

Nylon Lock Nuts, Brass, 3/8-16
Lock Nut with a Nylon Insert in Corrosion Resistant Brass
| Quantity | Unit price |
|---|---|
| To 99 |
$1.03*
|
| To 999 |
$0.68*
|
| From 1000 |
$0.61*
|
- Across Flats (Width): 0.563"
- Color: Yellow
- Color May Vary: Color and sheen may vary
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 3/8"
- Drive Style: External Hex
- Thread Direction: Right Hand
- Fit: 2B
- Internal Thread: 3/8/2016
- Material: Brass
- Part Number: 787392589978
- Product Type: Nylon Insert Lock Nut
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: 3/8"-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
|
|
|
| Nylon Insert Lock Nut Size | Width Across Flats | Height / Thickness |
| #6-32 | 0.313" | 0.188" |
| #8-32 | 0.345" | 0.239" |
| #10-24 | 0.376" | 0.249" |
| #10-32 | 0.376" | 0.249" |
| 1/4"-20 | 0.439" | 0.328" |
| 5/16"-18 | 0.502" | 0.359" |
| 3/8"-16 | 0.563" | 0.468" |
| 1/2"-13 | 0.752" | 0.609" |
| 5/8"-11 | 0.940" | 0.765" |
| 3/4"-10 | 1.064" | 0.890" |
| 1"-8 | 1.44" | 1.078" |
Product number:
1102-092-0022
