To place an order, scroll down and enter quantities in the multi-add grid and click "add selected to cart". For product details, select any SKU or size and click the Description and Specifications tabs. Scroll to the bottom for related items.

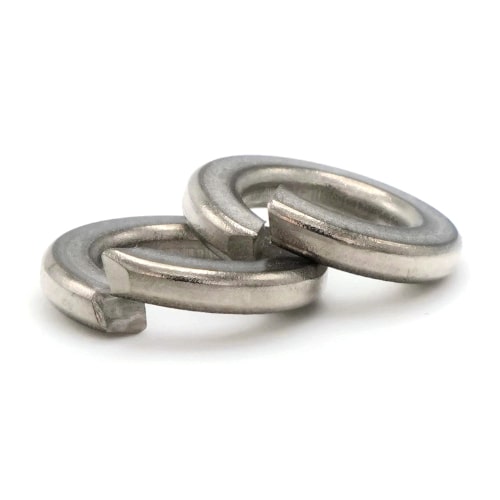

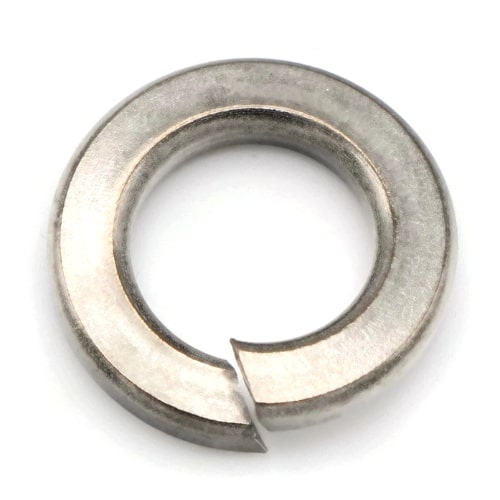

Lock Washers, Split Ring, Stainless Steel 316, #6 (0.141 ID x 0.250 OD x .031 THK)
Medium Profile 316 Stainless Steel Split Ring Lock Washers
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.05*
|
| 100 – 999 |
$0.02*
|
| 1000+ |
$0.01*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #6
- Grade: 316
- Marine Grade: Yes
- Material (Duplicate): 316 Stainless Steel
- Material: Stainless Steel
- Outside Diameter (OD): 0.25
- Part Number: 046737877621
- Pattern: Split Ring Lock Washer
- Product Type: Split Ring Lock Washer
- Size: #6
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Used to prevent fasteners from loosening unintentionally
- Split and bent to create a spring-like effect
- Add extra pressure to fastener assembly resulting in higher resistance to rotation
- 316 Stainless steel offers superior corrosion resistant and durable
- Suitable for marine, salt water and harsh environments
304 Stainless Steel Lock Washer Specifications
| Washer Sizes | ID | OD | Thickness |
| #0 | 0.062" | 0.132" | 0.017" |
| #1 | 0.075" | 0.150" | 0.020" |
| #2 | 0.088" | 0.150" | 0.020" |
| #3 | 0.101" | 0.195" | 0.025" |
| #4 | 0.114" | 0.209" | 0.025" |
| #5 | 0.127" | 0.236" | 0.031" |
| #6 | 0.141" | 0.250" | 0.031" |
| #8 | 0.167" | 0.293" | 0.040" |
| #10 | 0.193" | 0.293" | 0.040" |
| #12 | 0.220" | 0.377" | 0.056" |
| 1/4" | 0.252" | 0.487" | 0.062" |
| 5/16" | 0.314" | 0.583" | 0.078" |
| 3/8" | 0.377" | 0.680" | 0.078" |
| 7/16" | 0.440" | 0.776" | 0.109" |
| 1/2" | 0.502" | 0.869" | 0.125" |
| 5/8" | 0.628" | 1.072" | 0.156" |
| 3/4" | 0.753" | 1.264" | 0.188" |
| 7/8" | 0.878" | 1.455" | 0.219" |
| 1" | 1.003" | 1.647" | 0.250" |
| 1-1/8" | 1.129" | 1.838" | 0.281" |
| 1-1/4" | 1.124" | 2.028" | 0.312" |
| 1-3/8" | 1.379" | 2.210" | 0.344" |
| 1-1/2" | 1.504" | 2.409" | 0.375" |
Product number:
12400014
