Deck Framing Post Base Anchors, Stainless Steel 316, 6" x 6"
316 Stainless Steel Post Base for Decking Applications
| Quantity | Unit price |
|---|---|
| To 9 |
$288.28*
|
| From 10 |
$259.45*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Grade: 316
- Length: 6"
- Marine Grade: Yes
- Material: Stainless Steel
- Part Number: 787392587271
- Product Type: Post Base Anchors
- Size System: US
- Size Type: Regular
- Square Side Length: 6"
- System of Measurement: Inch
- Thread Direction: Right Hand
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Secure the post base in concrete for the installation of a wood column
- Designed for use with 5/8" diameter concrete wedge anchor
- 4x4 and 6x6 sizes come with rising plate and square washer
- Comes with two square washers and rising plate for 8x8 sizes
- Secure the concrete anchor and a stand-off plate to cover the anchor's head
- Provides a high uplift capacity

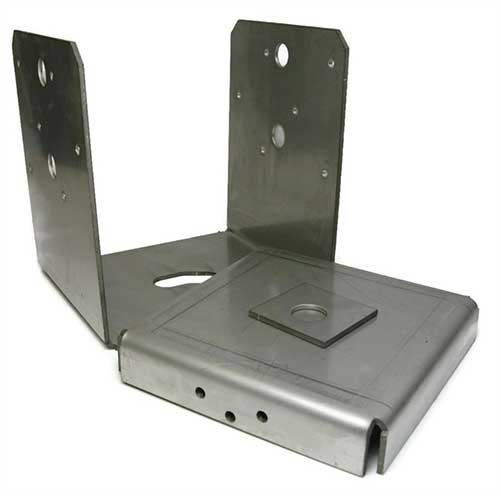

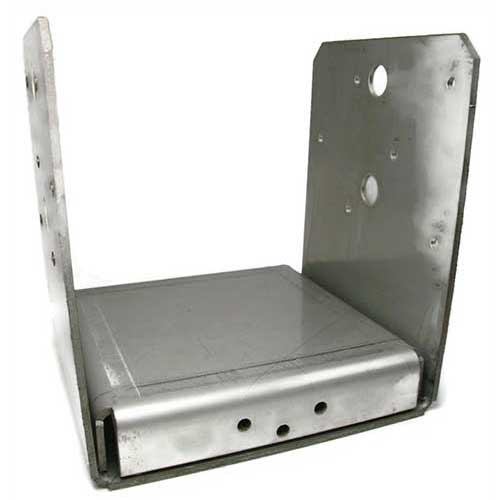

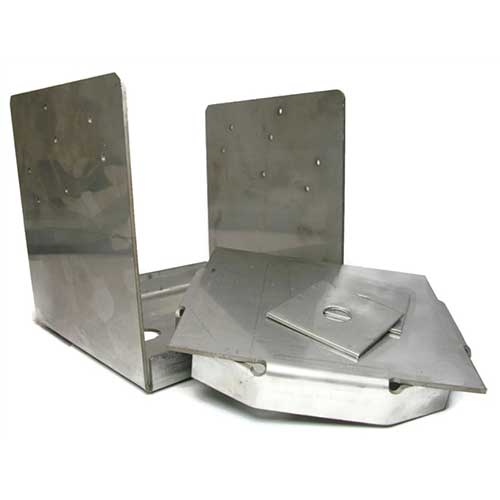

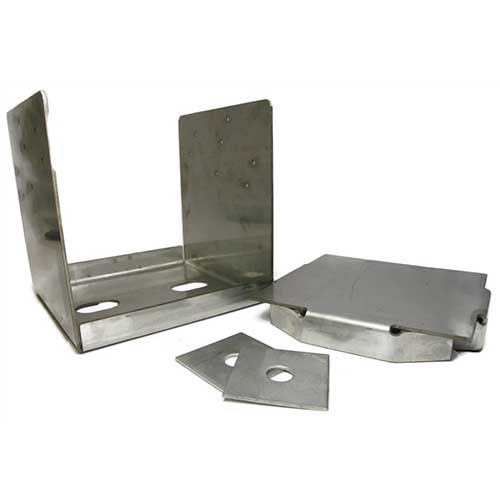

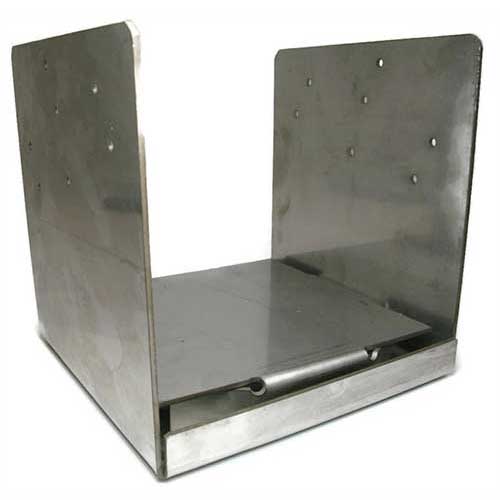

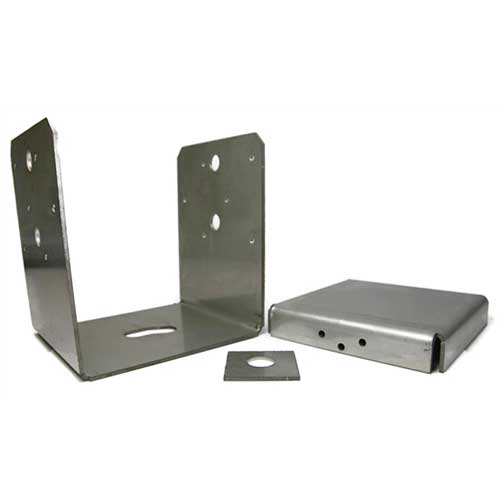

A Post Base Anchor is used to secure wood posts to concrete footings. All Decking Post Base Anchors in this selection are made of 316 Stainless Steel for superior corrosion resistance. 316 Stainless Steel is well suited for applications in severe, harsh, or marine environments.
Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These anchors are not designed to resist overturning (moment) loads.
| Post / Column Size: | 4 x 4 | 6 x 6 | 8 x 8 |
| Manufacturer Part Number: | PAU44 | PAU66 | PAU88 |
| Simpson Part Number: | ABU44 | ABU66 | ABU88 |
| Dimensions (Width): | 3-9/16" | 5-1/2" | 7-1/2" |
| Dimensions (Height): | 5-7/16" | 6" | 7-3/16" |
| Dimensions (Length): | 3" | 5" | 7-1/16" |
| Bearing Load (Lbs.): | 6775 | 16005 | 24900 |
| Uplift Load (Lbs.): | 2535 | 2380 | 3185 |
| Anchor Diameter: | 5/8" | 5/8" | 5/8" (2) |
| Material: | 316 Stainless Steel | ||
