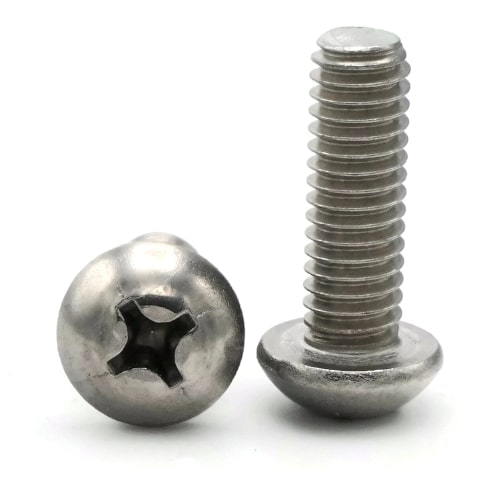

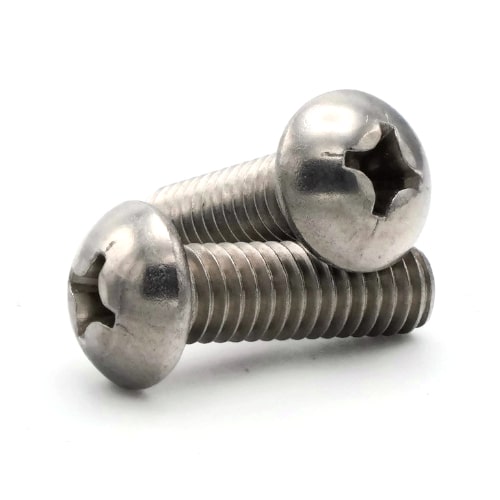

#8-32 Phillips Round Head Machine Screw 18-8 Stainless Steel

#8-32 Stainless Steel Phillips Round Head Machine Screws

Diameter - Thread Pitch: #8-32

  • Driven by Phillips screwdriver or bit
  • A machine screw is commonly identified by its small size
  • ASME standards specific
  • Domed head is similar to a button head but more of a half sphere
  • Rust resistant

#8-32 Phillips round head machine screws are available in grade 18-8 stainless steel.

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
#8-32 x 3/4"
SKU #5800-002-0002
#8-32 x 3/4"
SKU #5800-002-0002
1 $0.13 (0.13/ea)
100 $11.00 (0.11/ea)
1000 $100.00 (0.1/ea)
Subtotal: $0.00 /

Frequently Used With

Hex Machine Nuts 304 Stainless Steel - #8-32 (11/32 Flats x 1/8 Thick)
Hex Machine Nuts 304 Stainless Steel - #8-32 (11/32 Flats x 1/8 Thick) 125072
Hex Machine Nuts 304 Stainless Steel - #8-32 (11/32 Flats x 1/8 Thick)
1 $0.07 (0.07/ea)
100 $4.00 (0.04/ea)
1000 $30.00 (0.03/ea)
Subtotal: $0.00
Flat Washers 304 SS - #8 (.174 ID x .375 OD x .031 Thick)
Flat Washers 304 SS - #8 (.174 ID x .375 OD x .031 Thick) 1000-105112
Flat Washers 304 SS - #8 (.174 ID x .375 OD x .031 Thick)
1 $0.07 (0.07/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00
Lock Washer Split Ring 304 SS - #8 (.167 ID x .293 OD x .040 Thick)
Lock Washer Split Ring 304 SS - #8 (.167 ID x .293 OD x .040 Thick) 108072
Lock Washer Split Ring 304 SS - #8 (.167 ID x .293 OD x .040 Thick)
1 $0.07 (0.07/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00
Nylon Lock Nut 304 SS - #8-32 (.345 Flats x .239 Height)
Nylon Lock Nut 304 SS - #8-32 (.345 Flats x .239 Height) 128042
Nylon Lock Nut 304 SS - #8-32 (.345 Flats x .239 Height)
1 $0.09 (0.09/ea)
100 $7.00 (0.07/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00
Product Specifications
Product Specifications
ANSI
B1.1
Color
Silver
Corrosion Resistant
Yes
Diameter
#8
Drive Style
Phillips
Grade
18-8
Head Diameter
Max 0.309 - Min 0.287
Head Style
Round
Material
Stainless Steel
Overall Head Height
Max 0.120 - Min 0.107�
Product Type
Machine Screws
Standards Met
Class 2A Fit, ANSI B1.1
System of Measurement (Unit)
Inch
Thread Diameter
(#8) Max 0.1631 - Min 0.1571
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
