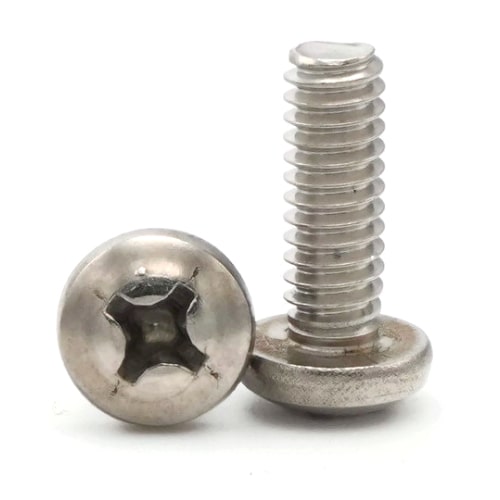

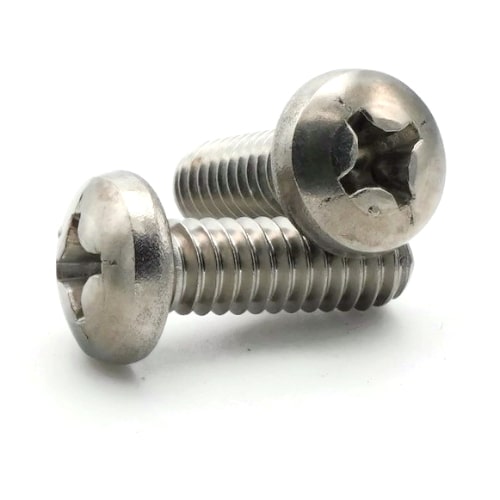

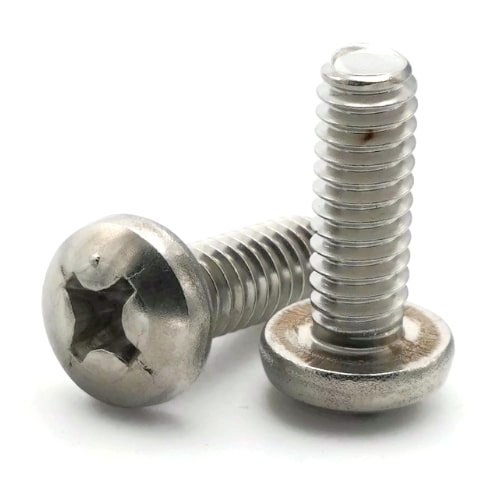

Machine Screws, Phillips Pan Head, Stainless Steel 316, #10-32 x 1-1/2"
Diameter - Thread Pitch: #10-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.53*
|
| To 999 |
$0.40*
|
| From 1000 |
$0.34*
|
- ANSI: B1.1
- Class: 2A
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Pan Head
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 2A
- Grade: 316
- Hardness: 100 Rockwell B
- Head Height Max: 0.11
- Head Diameter: Max 0.373 - Min 0.357
- Head Style: Pan
- Length: 1-1/2"
- Marine Grade: Yes
- Material: Stainless Steel
- Overall Head Height: Max 0.110 - Min 0.099
- Phillips Drive: #2
- Product Type: Machine Screws
- Reduction: 0.4
- Standards Met: ANSI B18.6.3
- System of Measurement: Inch
- Tensile PSI: 100,000 - 125,000 PSI
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Yield PSI: 55,000 - 75,000 PSI
- Used mostly for metal applications
- A machine screw is commonly identified by its small size
- ASME Standards Specific
- 316 Stainless steel Phillips pan head machine screws are corrosion and rust resistant
- 316 stainless steel is suitable for saltwater and other harsh environments
- Commonly used for:
- Drawer Slides
- Machinery
#10-32 Stainless Steel Phillips Pan Head Machine Screws are screws or bolts, typically found in smaller sizes, that hold machinery together.
Product number:
461014-0020
