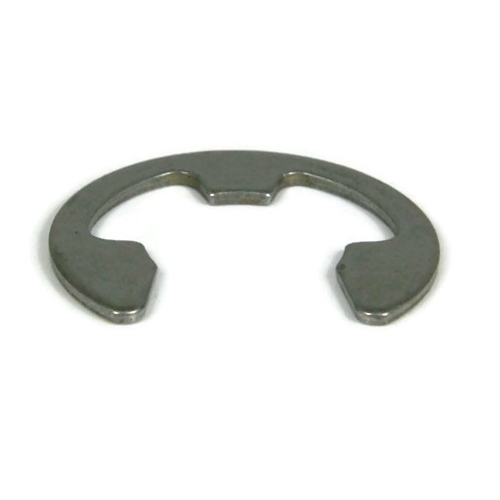

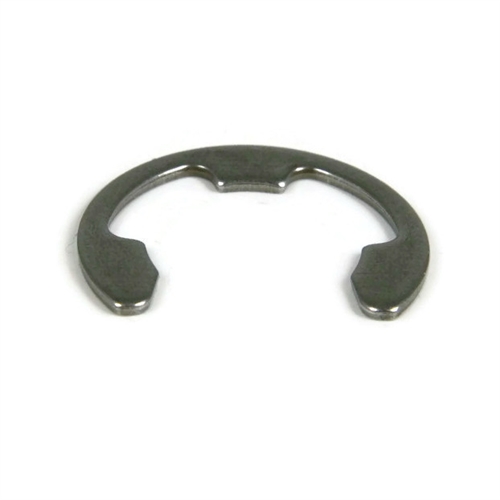

What are E-style retaining rings?
E-style retaining rings, often called E-clips, are stamped rings that push onto a shaft and snap into a machined groove. The three prongs contact the bottom of the groove and the body forms a shoulder that holds bearings, spacers, or pulleys in place.
How do E-clips work?
The ring installs from the side of the shaft, so you do not need end access. Once seated in the groove, the prongs resist axial movement of the retained part. Bowed versions add light spring preload to help take up end play.
What size E-clip for a 1/4 in shaft?
Order the ring by the shaft diameter. For a 1/4 in shaft, choose a 1/4 in E-clip, then confirm the groove width and depth match the ring specification before installation.
E-clip vs snap ring, what is the difference?
- E-clip: radial, installs from the side, fast for limited end access, wide bearing shoulder.
- Snap ring with lug holes: axial, slides on from the end, easy removal with retaining ring pliers.
Bowed vs flat E-clip, which should I use?
- Bowed: adds preload to reduce rattle and compensate for tolerance stack, good where slight axial play remains.
- Flat: use when parts are already tight and you only need a rigid stop.
Which material is best for my environment?
- Carbon spring steel: high strength for general indoor service.
- Stainless 302: broad corrosion resistance with spring properties.
- Stainless 316: added resistance in chloride or marine environments.
How to install an E-clip safely
- Measure the shaft, select the matching ring size, verify groove width and depth.
- Deburr edges, align the ring square to the groove.
- Use a suitable applicator or pliers, spread only as needed, snap fully into the groove.
- Verify full seating around the circumference, replace rings that show distortion after removal.
Typical applications
- Securing bearings, bushings, washers, and spacers on shafts
- Mechanisms with limited end access, small appliances and tools
- Automotive, equipment maintenance, and MRO
Why buy E-style retaining rings from AlbanyCountyFasteners.com
- Stainless steel E-clips in popular shaft sizes, plus bowed options
- Contractor friendly packs and practical assortments
- Fast shipping and USA based support for sizing and installation
FAQs
Quick answers to common sizing, material, and installation questions for E-clips.
How do I size an E-clip?
Order by the shaft’s nominal diameter, then confirm groove width and depth against the ring specification.
Can E-clips be reused?
They can be removed, but repeated spreading can reduce spring force. Replace any ring that shows bending, cracking, or poor fit.
Do I need special tools?
A dedicated applicator or retaining-ring pliers makes installation easier and helps avoid over-spreading the ring.
What if there is slight axial play after installation?
Verify groove and part dimensions first. If play is within tolerance, switch to a bowed E-ring to add light preload.
Stainless or carbon steel, which should I pick?
Use carbon spring steel for many indoor uses. Choose 302 stainless for general corrosion resistance, or 316 stainless in harsher chloride or marine areas.
