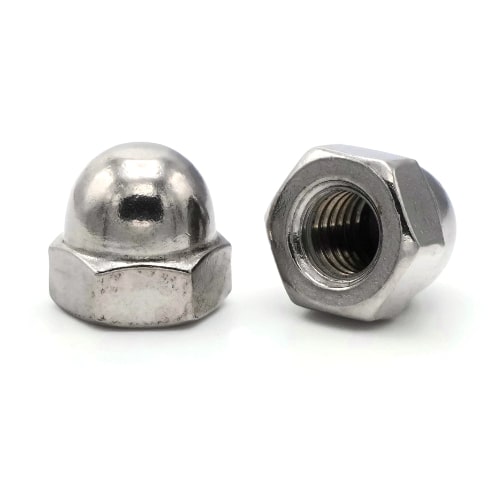

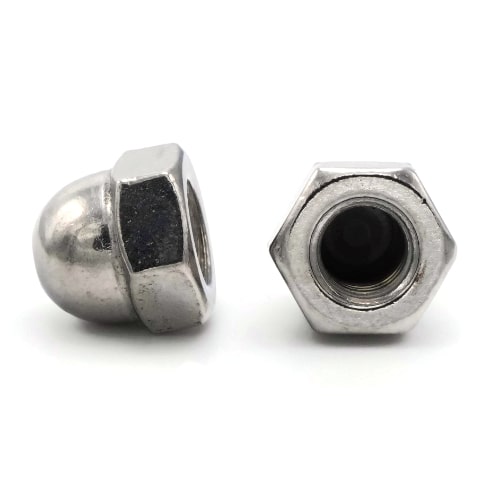

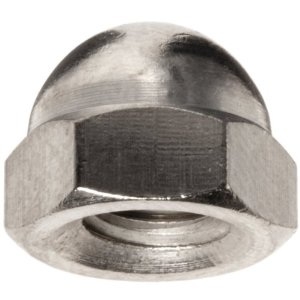

Cap Nuts, Stainless Steel 304, #6-32 (5/16 Flats x 19/64 Height)
Acorn / Cap Nuts in 304 Stainless Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.19*
|
| To 999 |
$0.15*
|
| From 1000 |
$0.14*
|
- Across Flats (Width): 5/16"
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #6
- Drive Style: External Hex
- Thread Direction: Right Hand
- Fit: 2B
- Grade: 304
- Internal Thread: #6-32
- Material: Stainless Steel
- Part Number: 046737843923
- Product Type: Cap Nuts
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #6-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Hex nut with a closed end
- Domed thread to protect external thread
- Low Crown
- Most Popular style
- Easily Removable
- Aesthetic finished look
- Also known as an Acorn Nut, Cap Nut, or Dome Nut
| Nut Sizes | Flats | Height |
| #4-40 | 1/4" | 1/4" |
| #6-32 | 5/16" | 19/64" |
| #8-32 | 5/16" | 5/16" |
| #10-24 | 3/8" | 25/64" |
| #10-32 | 3/8" | 25/64" |
| #12-24 | 3/8" | 27/64" |
| 1/4"-20 | 7/16" | 15/32" |
| 1/4"-28 | 7/16" | 15/32" |
| 5/16"-18 | 9/16" | 17/32" |
| 5/16"-24 | 9/16" | 17/32" |
| 3/8"-16 | 5/8" | 5/8" |
| 3/8"-24 | 5/8" | 5/8" |
| 7/16"-14 | 5/8" | 23/32" |
| 7/16"-20 | 5/8" | 23/32" |
| 1/2"-13 | 3/4" | 13/16" |
| 1/2"-20 | 3/4" | 13/16" |
| 5/8"-11 | 1" | 63/64" |
| 3/4"-10 | 1-1/16" | 1-3/16" |
Product number:
126002
