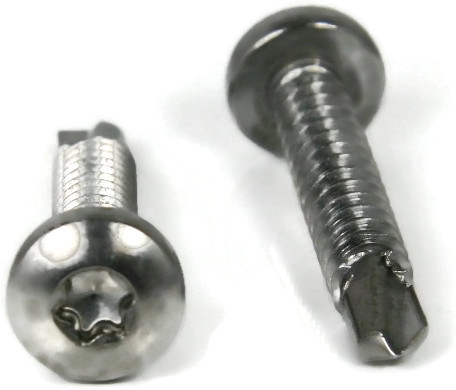

Sheet Metal Screws, Torx Star Drive (T-27) Pan Head, SD TEK 3, Stainless Steel 410, #12 x 3/4"
Diameter - Thread Pitch: #12-14
| Quantity | Unit price |
|---|---|
| To 99 |
$0.58*
|
| To 999 |
$0.40*
|
| From 1000 |
$0.37*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #12
- Drive Style: Star
- Elongation: 30%
- Head Type: Pan Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 410
- Hardness: 40 Rockwell C
- Head Diameter: Max 0.425 - Min 0.407
- Head Style: Pan
- Length: 3/4"
- Material (Duplicate): 410 Stainless Steel
- Material: Stainless Steel
- Overall Head Height: Max 0.125 - Min 0.112 (From Bottom to Top of Head)
- Part Number: 661291580789
- Pattern: Torx Tamper Proof Self Drilling Screw
- Point Type: TEK
- Product Type: Star Drive Pan Head Self Drilling Screw
- Size: #12 x 3/4"
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Tensile PSI: 180,000 PSI Heat Treated
- Thread Diameter Major: (#12) 0.215
- Thread Diameter Minor: (#12) 0.164
- Thread Direction: Right Hand
- Thread Pitch: 14 Per Inch
- Thread Size: #12
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Star Drive: T27
- Weight: 1 lb
- #12-14
- Self drilling point (TEK) with cutting threads
- Star Drive 6 Lobe drive is unconventional and efficient
- Lessens the chance of stripping during installation which means more torque can be applied safely
- 410 Stainless steel square drive pan head self drilling screws are hardened and corrosion resistant
- A benefit/disadvantage of an unusual drive is that it can be more difficult for users of a device to disassemble than more common head types
- Sizes listed below as: Diameter - Thread Pitch
