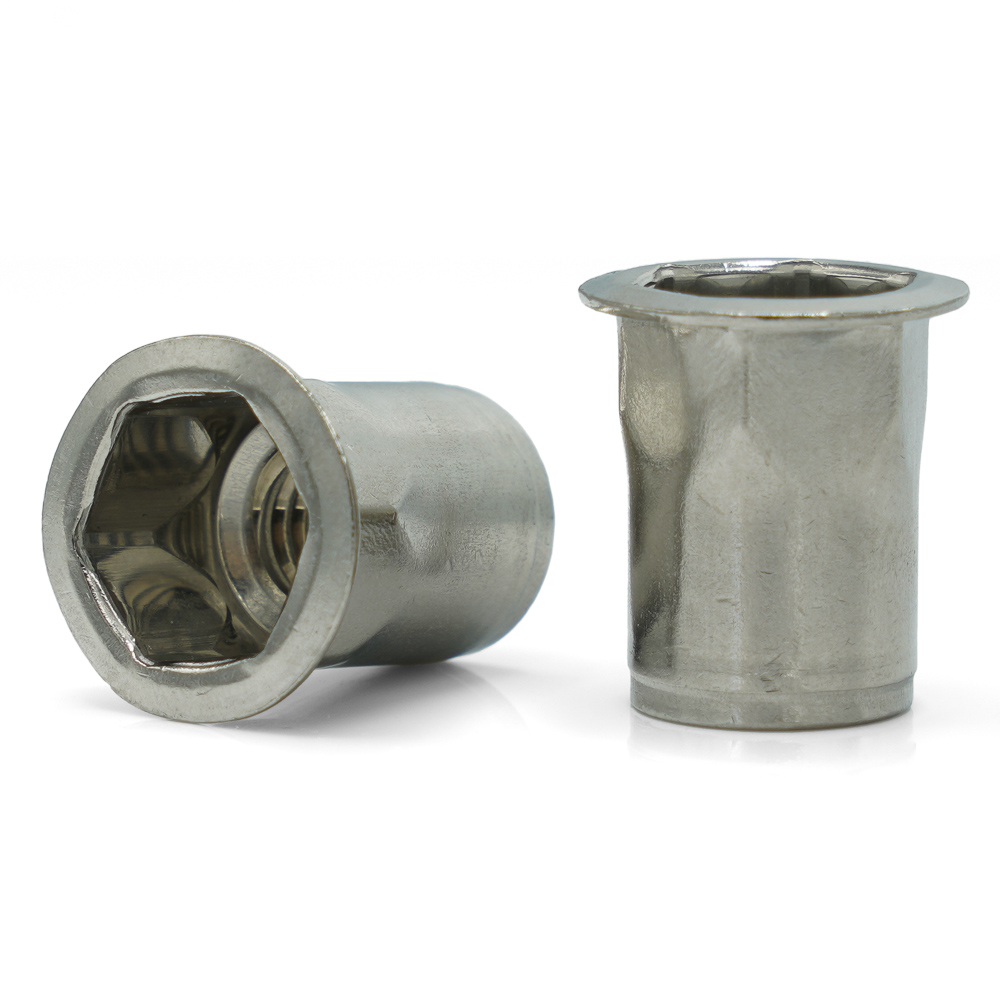

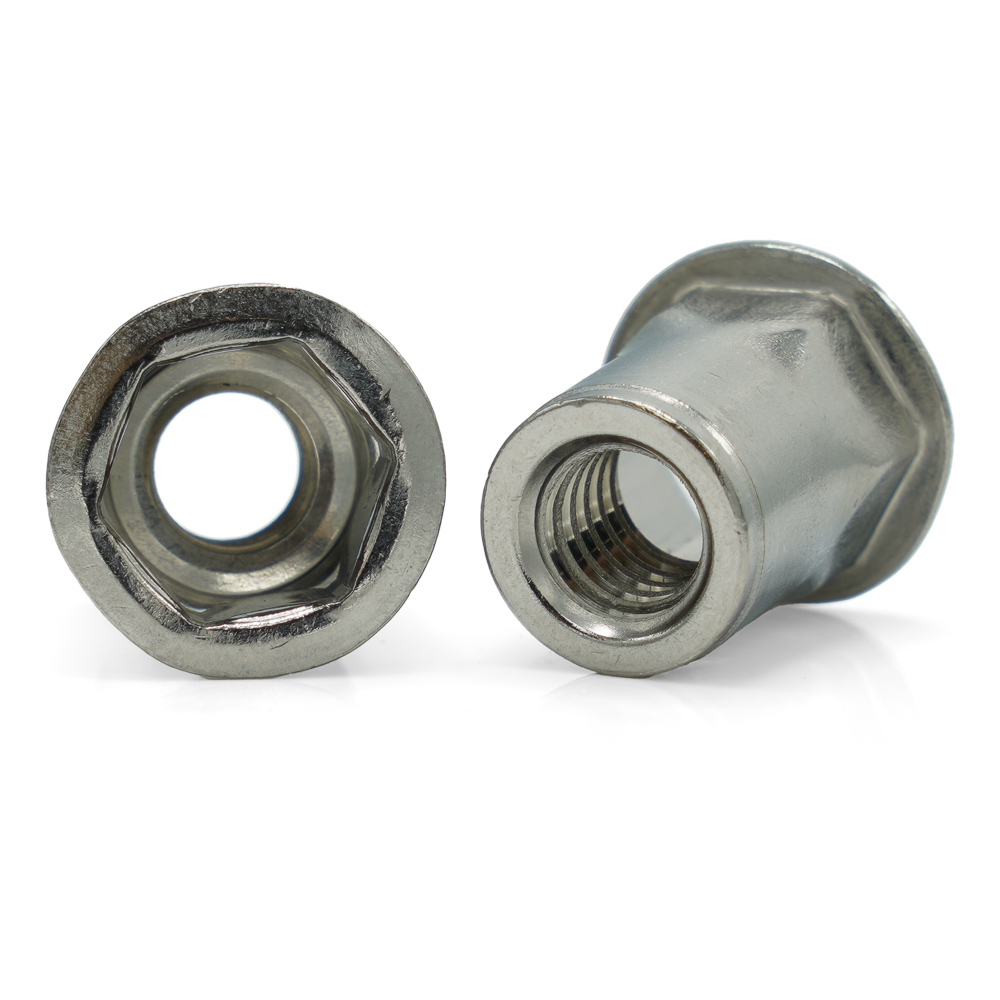

Rivet Nuts, Thinwall Half Hex, Low Profile Head, Stainless Steel 18-8, 1/4-20 x 0.585 (.027 - .165 G
Flanged Insert With a Stainless Steel Internal Threaded Nut
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.96*
|
| 100 – 999 |
$0.83*
|
| 1000+ |
$0.76*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/4"
- Drill (Hole) Size: 0.375
- Head Type: Low Profile
- Thread Direction: Right Hand
- Grade: 18-8
- Head Height: 0.03
- Head Diameter: 0.51
- Head Style: Low Profile
- Insert Length: 0.4
- Internal Thread: 1/4/2020
- Length: 0.585
- Material (Duplicate): Stainless Steel
- Material: Stainless Steel
- Part Number: 1600-002-004
- Pattern: 18-8 SS Thinwall Half Hex Low Profile Head Rivet Nut
- Product Type: Rivet Nut
- Size System: US
- Size Type: Regular
- Standards Met: ROHS Compliant
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Half Hexagon shaped Rivet Nuts
- For use in hexagonal holes
- Low profile head installs near flush
- Compatible with Spin-Spin or Spin-Pull tools
Rivet Nuts are used to install a threaded insert into a material where only one side is accessible. Installed “blindâ€, the Rivet Nut partially collapses upon installation to grip the material between the head and compressed body. Rivet Nuts are useful for securing permanent threads into materials otherwise too thin for tapped holes.
Sizes listed as Diameter - Thread Count x Length
| SKU | Thread Size | Grip# | Grip Range | Length | Installed Length | Head Diameter | Head Height (Nominal) | Body Dia Max | Hole Size Across Flats |
| 1600-002-002 | #10-32 UNF | 1 | .020 - .130 | 0.435 | 0.275 | 0.39 | 0.027 | 0.28 | 0.281 |
| 1600-002-004 | 1/4-20 UNC | 1 | .027 - .165 | 0.585 | 0.4 | 0.51 | 0.03 | 0.374 | 0.375 |
| 1600-002-006 | 5/16-18 UNC | 1 | .027 - .150 | 0.685 | 0.53 | .655* | 0.035 | 0.499 | 0.5 |
Product number:
1600-002-004
