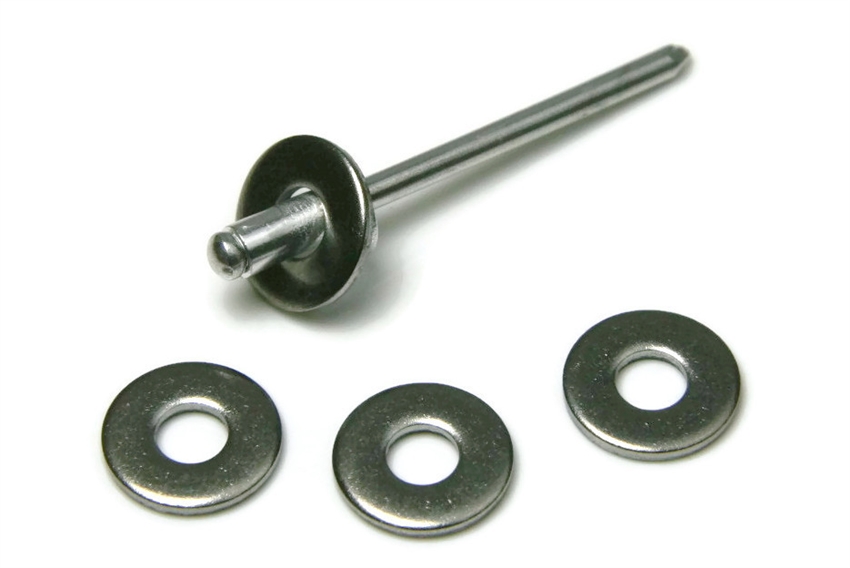

Rivet Backup Washers, Stainless Steel 304, 1/8" (ID.133, OD.375, TK.058)
Stainless Steel
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.08*
|
| 100 – 999 |
$0.07*
|
| 1000+ |
$0.06*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 1/8"
- Rivet Diameter Facet: #4 (1/8")
- Grade: 304
- Material (Duplicate): Stainless Steel
- Material: Stainless Steel
- Outside Diameter (OD): .375MM
- Part Number: 787392584867
- Pattern: Blind Rivet Back Up Washer
- Product Type: Rivet Backup Washer
- Size: 1/8" (#4)
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Typically used in stainless steel and other soft metals
- Create a larger diameter of pressure during fastener installation
- The larger diameter helps to spead our pressure over the material preventing pull through
- 304 Stainless steel rivets are rust and corrosion resistant
- Always use the same material for rivet and backup washer
- Actual measurements may vary slightly +/- depending on production run
304 Stainless Steel Rivet Backup Washer Rivet Sizing
| Washer Size | Rivet Diameter (Callout) | Rivet Diameter (Inch) |
| 1/8" | 4 | 1/8" |
| 5/32" | 5 | 5/32" |
| 3/16" | 6 | 3/16" |
| 1/4" | 8 | 1/4" |
304 Stainless Steel Rivet Backup Washer Specifications
| Washer Sizes | Inner Diameter (ID) | Outer Diameter (OD) | Washer Thickness |
| 1/8" | Max 0.136" - Min 0.132" | 0.375" | 0.058" |
| 5/32" | Max 0.167" - Min 0.163" | 0.437" | 0.058" |
| 3/16" | Max 0.199" - Min 0.195" | 0.500" | 0.058" |
| 1/4" | Max 0.264" - Min 0.260" | 0.562" | 0.058" |
Product number:
1836-004-0002
