Ken Forging Eye Bolts, Shoulder Pattern, Carbon Steel, M42-4.50 x 84MM , USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| To 9 |
$195.32*
|
| To 99 |
$175.79*
|
| From 100 |
$161.72*
|
- Brand: Ken Forging
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: M42
- Drive Style: External Hex
- Eye Bolt Pattern: Shoulder
- Eye Inside Diameter: 73mm
- Eye Outside Diameter: 152.4mm
- Head Type: Eye
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 6g
- Head Style: Eye
- Length: 84
- Material: Carbon Steel
- Product Type: Eye Bolts
- Shank Diameter: M42
- System of Measurement: Metric
- Thread Direction: Right Hand
- Thread Pitch: 4.5 mm
- Thread Size: M42-4.50
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Metric
- USA Made
- Fully Threaded
- ISO Coarse Thread

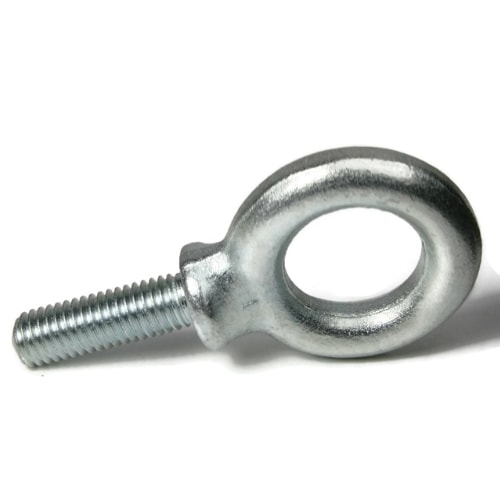

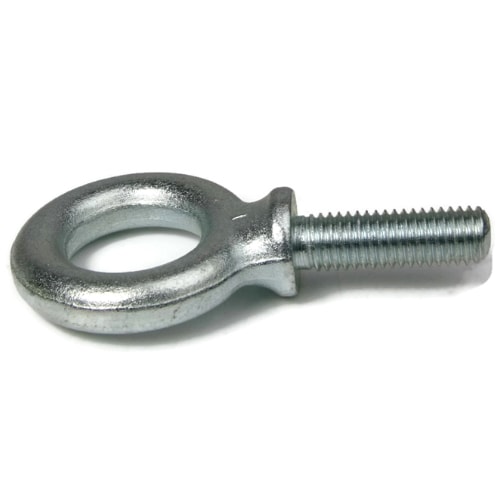

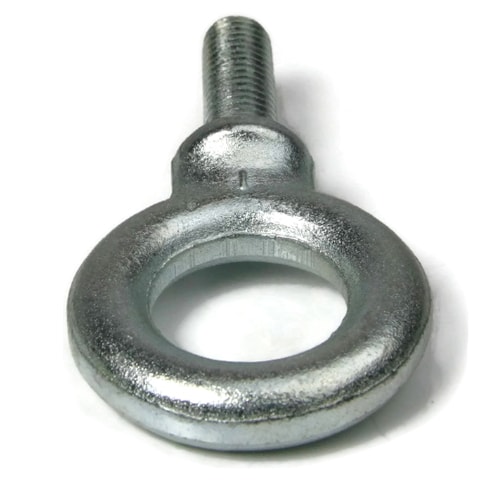

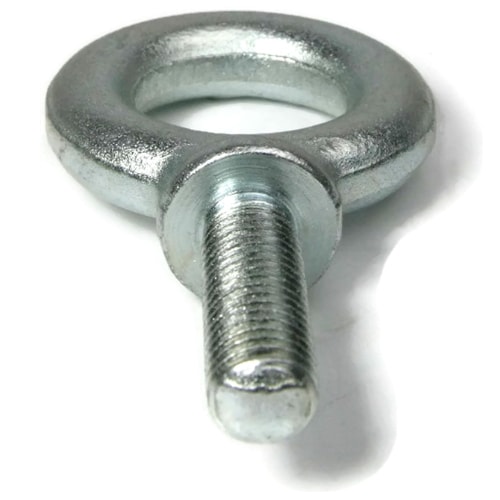

Shoulder Pattern Eye Bolts have a threaded shank with a ring for a head. This ring is used to hold a hanging fitting or a load, commonly seen in industrial rigging applications. In a shoulder pattern Eye Bolt, there is a shoulder between the shank and the eye.
Eye bolts from Albany County Fasteners in Carbon Steel are Drop Forged for a durability.
If you are unsure if an Eye Bolt has the appropriate specifications for your application, or have a question regarding any of the information concerning Eye bolts, please call us at 866-573-0445 for further assistance.
Please follow Ken Forge's recommendations for load capacities of Eye Bolts and their safety information for the installation and usage of Eye bolts on their website.
Sizes listed as Shank Diameter - Thread Pitch x Shank Length
Proudly Made in The USA
