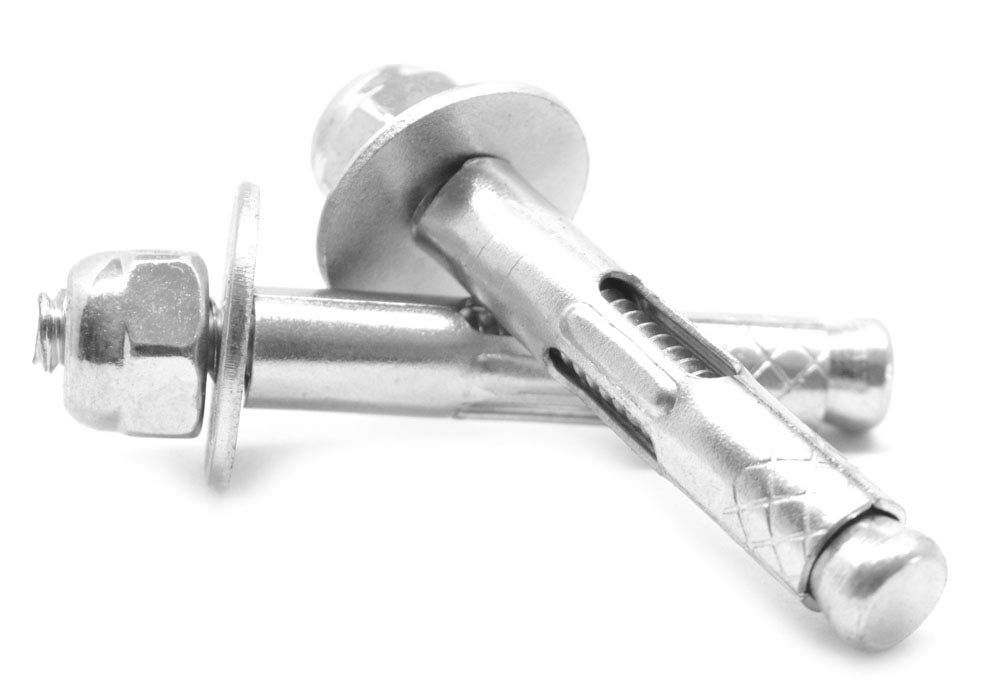

What are Sleeve Anchors?
Sleeve anchors, sometimes called masonry anchors, are expansion fasteners for solid concrete, brick, and hollow block. A metal sleeve expands around a threaded stud as you tighten the nut, locking the anchor in the hole for a secure hold.

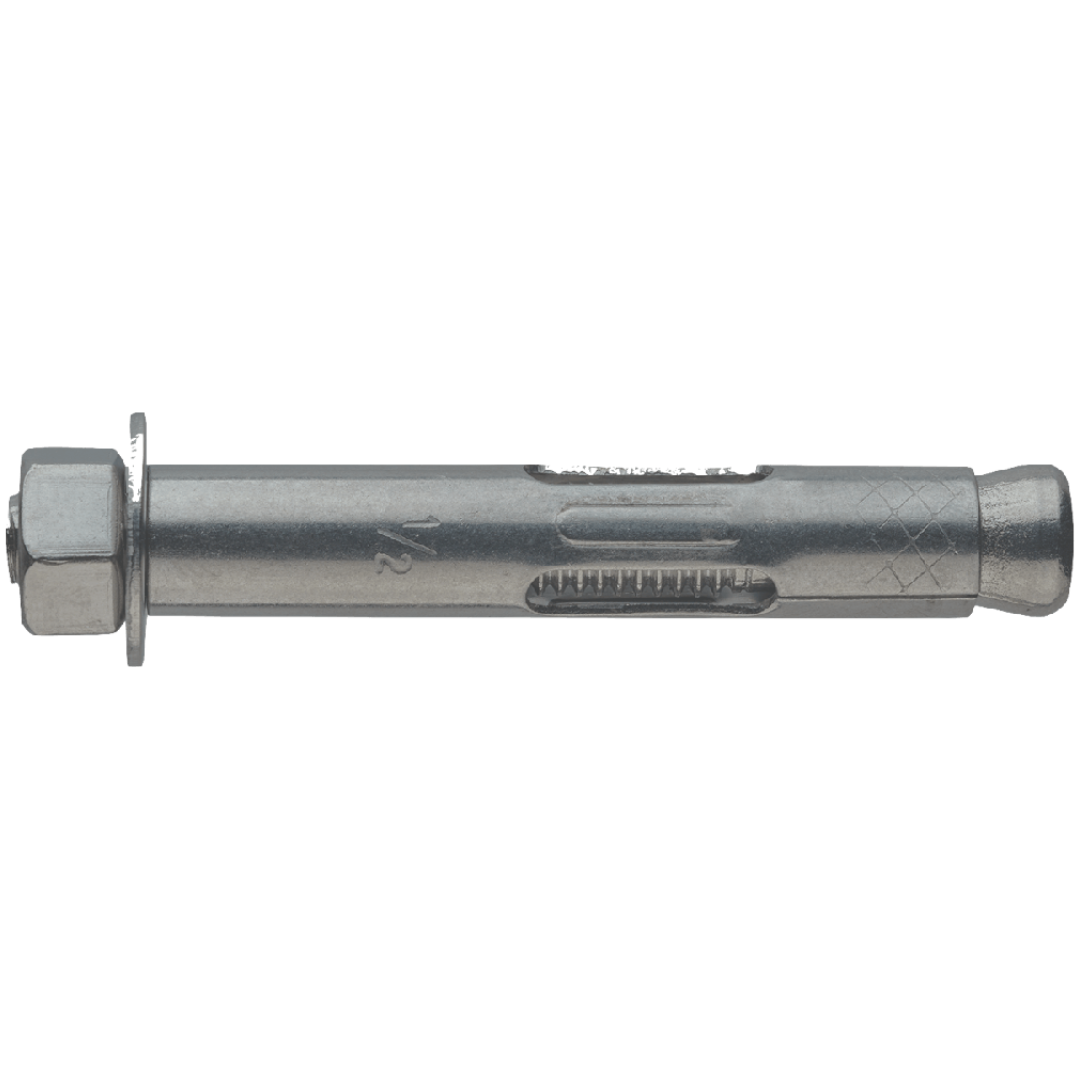

What parts make up a sleeve anchor?
- Threaded stud with a chamfered or plug end
- Expansion sleeve that grips the hole wall
- Cone or expander plug that forces the sleeve outward
- Flat washer sized to the anchor diameter
- Hex nut used to set and clamp the assembly
The washer and nut are included with most sleeve anchors so the assembly is ready to install.
Where are Sleeve Anchors used?
- Brick and block walls where hole quality can vary
- Solid concrete when a versatile anchor is preferred
- Mounting handrails, brackets, electrical and HVAC supports, machinery bases
- Hollow block that has not been filled solid with concrete
How do Sleeve Anchors work?
Drill a hole, insert the anchor through the fixture, and tighten the nut. The cone draws into the sleeve, forcing it to expand against the base material so the threads clamp the fixture securely.
How do you size Sleeve Anchors (inch and metric)?
- Choose diameter by required load and the fixture hole, for example 1/4 in, 5/16 in, 3/8 in, 1/2 in, or M6, M8, M10, M12
- Select length for fixture thickness plus the minimum embedment listed for the diameter
- Use the specified drill bit size and hole depth so the sleeve expands correctly
- Observe edge distance and spacing to protect brick or block from cracking
Minimum embedment depth for Sleeve Anchors
| Diameter | 5/16 in | 3/8 in | 1/2 in | 5/8 in | 3/4 in |
|---|---|---|---|---|---|
| Minimum Embedment | 1-1/16 in | 1-1/2 in | 2-1/4 in | 2-3/4 in | 3-3/8 in |
Materials and finishes
Zinc plated carbon steel
Economical choice for dry interior use.
Hot dip galvanized steel
Thick zinc layer for outdoor and wet areas. Pair with galvanized hardware.
Stainless steel
Corrosion resistant option for coastal, washdown, or chemical exposure.
Installation tips for Sleeve Anchors
- Drill straight with a carbide bit that matches the anchor diameter
- Brush and blow out dust before setting the anchor
- Seat the washer and nut flat, tighten to snug, then to the recommended torque
- In hollow block, drill into a solid web if possible or follow product guidance for thin shells
Sleeve anchor vs wedge anchor what is the difference?
Sleeve anchors are more forgiving in brick and block because the sleeve grips along the hole. Wedge anchors usually provide higher capacities in solid concrete but are not intended for hollow block unless the block has been filled solid with concrete.
Troubleshooting and common issues
- Hole too big reduces sleeve expansion and holding power
- Under tightening leaves the sleeve unset and the fixture loose
- Over tightening can crush brick or block shells
- Poor hole cleaning leaves dust that prevents proper expansion
- Wrong material selection can cause corrosion in wet or coastal areas
FAQs about Sleeve Anchors
Helpful answers for selection, sizing, and installation in concrete, brick, and block.
- How much weight can a sleeve anchor support?
Capacity depends on diameter, embedment, and base material quality. Check the values for your specific product and application.
- How does a sleeve anchor work?
Tightening the nut draws a cone into the sleeve, expanding it against the hole wall so the stud and nut clamp the fixture.
- When should I pick a sleeve anchor instead of a wedge anchor?
Choose sleeve anchors for brick, block, or variable holes. Choose wedge anchors for higher loads in solid, cured concrete.
- Can I use sleeve anchors in hollow block?
Yes. For best results, drill into a solid web when possible. If blocks are filled solid with concrete, wedge anchors may also be used.
- What drill bit size do I need?
Use a carbide bit equal to the anchor diameter unless the product specifies otherwise.
- How long should the anchor be?
Length must cover fixture thickness plus the minimum embedment for that diameter, with a little extra for clearance.
- Are sleeve anchors removable?
They can be removed, but reusing them isn’t recommended because the sleeve may not re-expand reliably.
- Do sleeve anchors need hole cleaning?
Yes. Brush and blow out dust so the sleeve can expand fully and achieve rated strength.
- Which finish should I select for outdoor use?
Hot dip galvanized or stainless steel. Use zinc plated for dry interior spaces.
- Do sleeve anchors work in cracked concrete?
Some are qualified for cracked concrete. Confirm the rating for the specific product you’re using.
