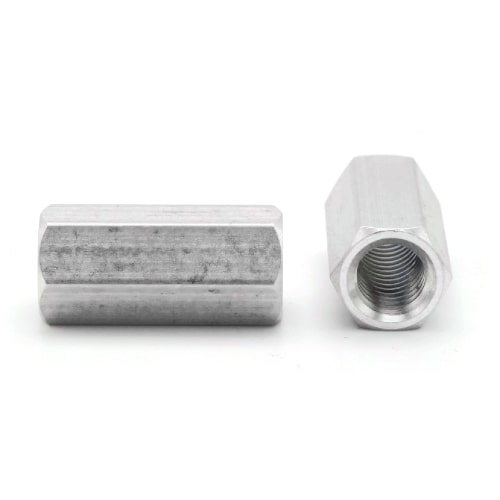

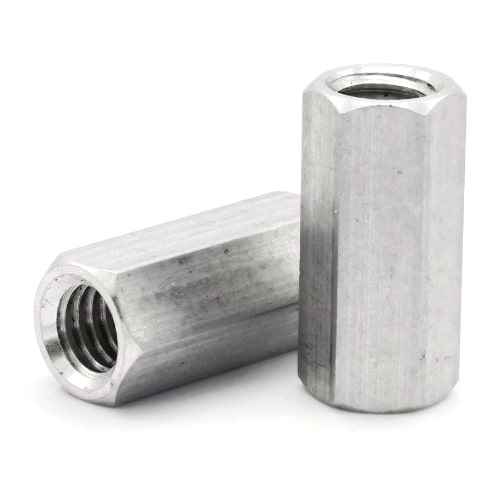

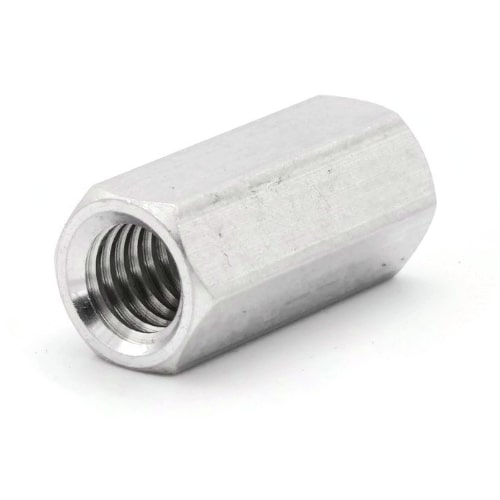

Coupling Nuts, Aluminum, 1/4"-20 x 7/8"

Rod Coupling Nuts in 6061-T Aluminum Alloy

Quantity	Unit price
To 99	$2.40*
To 999	$1.98*
From 1000	$1.80*

Diameter

1/4"

5/16"

5/8"

3/4"

Across Flats (Width): 3/8"
ANSI: B18.2.2
Color: Silver
Diameter: 1/4"
Drive Style: External Hex

Thread Direction: Right Hand
Fit: 2B
Grade: 6061-T6
Internal Thread: 1/4/2020
Length: 7/8"
Material: Aluminum
Product Type: Coupling Nut
Standards Met: ANSI B18.2.2
System of Measurement: Inch
Thread Direction: Right Hand
Thread Pitch: 20 Per Inch
Thread Size: 1/4"-20
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Toggle More

Join two male threads
Commonly used with threaded rod
Make longer rod assemblies from shorter lengths
Also known as Extension Nuts
Resistant to Atmospheric Corrosion
Significantly Lighter than Other Alloys
6061-T6 Aluminum Alloy
High Strength-To-Weight Ratio
UNC Coarse Thread Sizes

An Aluminum Coupling Nut, also known as an extension nut, is corrosion resistant, lightweight, and non magnetic. As a metal, aluminum is valued for its high strength-to-weight ratio making it a common fastener material in the automotive, aerospace, and general machinery industries.

Important: We recommend not mixing metals; aluminum fasteners should be used with aluminum fasteners. For more information, please read our article on the subject HERE.

_x000D_ _x000D_ _x000D_ _x000D_ Nut Sizes_x000D_ _x000D_ _x000D_ Flats_x000D_ _x000D_ _x000D_ Length_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 1/4"_x000D_ _x000D_ _x000D_ 3/8"_x000D_ _x000D_ _x000D_ 7/8"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 5/16"_x000D_ _x000D_ _x000D_ 7/16"_x000D_ _x000D_ _x000D_ 1"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 5/8"_x000D_ _x000D_ _x000D_ 7/8"_x000D_ _x000D_ _x000D_ 1 3/4"_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 3/4"_x000D_ _x000D_ _x000D_ 1"_x000D_ _x000D_ _x000D_ 2"_x000D_ _x000D_ _x000D_ _x000D_

Product number: 1000-202-0002

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
1/4" 1000-202-0002	1 $2.40 (2.4/ea)	100 $198.00 (1.98/ea)	1000 $1,800.00 (1.8/ea)	Quantity for Coupling Nuts, Aluminum, 1/4"-20 x 7/8" $0.00
5/16" 1000-202-0012	1 $2.90 (2.9/ea)	100 $251.00 (2.51/ea)	1000 $2,280.00 (2.28/ea)	Quantity for Coupling Nuts, Aluminum, 5/16"-18 x 1" $0.00
5/8" 1000-202-0022	1 $8.20 (8.2/ea)	100 $677.00 (6.77/ea)	1000 $6,150.00 (6.15/ea)	Quantity for Coupling Nuts, Aluminum, 5/8"-11 x 1 3/4" $0.00
3/4" 1000-202-0052	1 $11.70 (11.7/ea)	100 $1,073.00 (10.73/ea)	1000 $8,780.00 (8.78/ea)	Quantity for Coupling Nuts, Aluminum, 3/4"-10 x 2" $0.00

Page Total: $0.00
