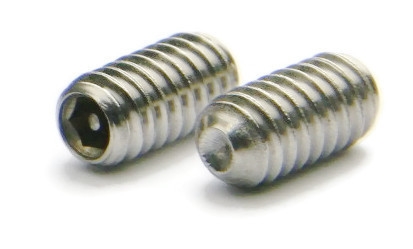

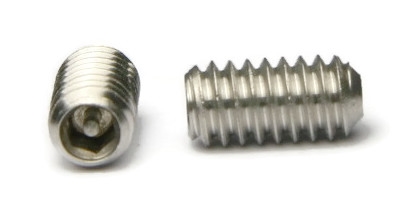

Socket Set Screws, Tamper Proof Pin In, Hex 3/32" Drive, Stainless Steel 18-8, #10-32 x 3/16"
Diameter - Thread Pitch: #10-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.25*
|
| To 999 |
$0.22*
|
| From 1000 |
$0.18*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Cup Point Diameter: Max 0.102 - Min 0.088
- Diameter: #10
- Drive Style: Internal Hex (with Pin)
- Head Type: No Head
- Tamper Proof: Yes
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 3A
- Grade: 18-8
- Head Style: No Head
- Hex Drive: 3/32" (With Pin)
- Length: 3/16"
- Material: Stainless Steel
- Part Number: 787392608723
- Point Degree: 118
- Product Type: Tamper Proof Socket Set Screws
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
#10-32 Stainless steel security socket set screws in 18-8 stainless steel

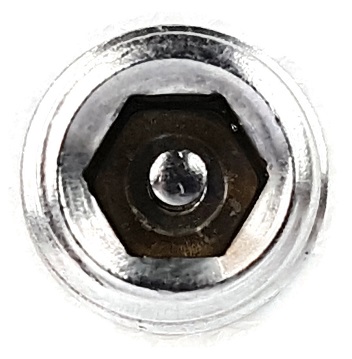

- Designed to be driven by a special security Allen wrench
- Drive has a pin in the center to deter tampering
- Used where a flush surface is key
- Headless fastener that can be driven entirely into a material
- Corrosion and rust resistant ensuring durability
- Commonly used for:
- Pulleys
- Tracks
- Surfboard Fins
- Hotels
Product number:
6204-046-0002
