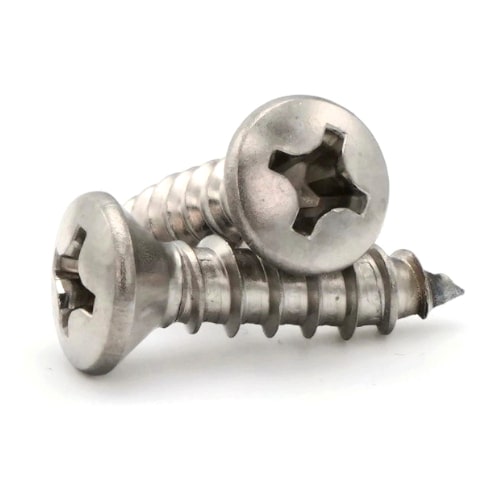

Sheet Metal Screws, Phillips Oval Head, Stainless Steel 18-8, #4 x 3/8"
Diameter - Thread Pitch: #4-24
| Quantity | Unit price |
|---|---|
| To 99 |
$0.07*
|
| To 999 |
$0.05*
|
| From 1000 |
$0.04*
|
- ANSI: ANSI B18.6.3
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #4
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Oval Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 18-8
- Hardness: 100 Rockwell B
- Head Height Max: 0.104
- Head Diameter: Max 0.225 - Min 0.195
- Head Style: Oval
- Length: 3/8"
- Material: Stainless Steel
- Overall Head Height: Max 0.104 - Min 0.084
- Part Number: 717029128225
- Phillips Drive: #1
- Point Type: A
- Product Type: Sheet Metal Screws
- Reduction: 0.4
- Size Type: Regular
- Standards Met: ANSI B18.6.3
- System of Measurement: Inch
- Tensile PSI: 100,000 - 125,000 PSI
- Thread Diameter Major: (#4) 0.114 - 0.110
- Thread Diameter Minor: (#4) 0.083 - 0.078
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: #4
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Yield PSI: 55,000 - 75,000 PSI
- #4-24
- Raised decorative head
- Notched at the tip to aid in chip removal
- Threads cut into material for a stronger hold
- 18-8 Stainless steel Phillips oval head sheet metal screws are rust resistant
- 18-8 stainless steel is the industry standard
- Sizes listed below as: Diameter - Thread Pitch
Type A Sheet Metal Screw Thread Specifications
Product number:
3400002
