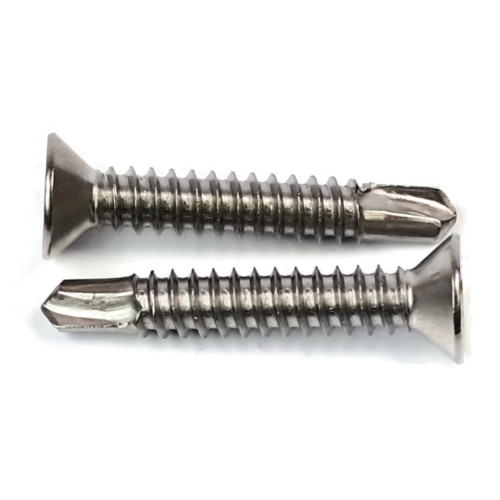

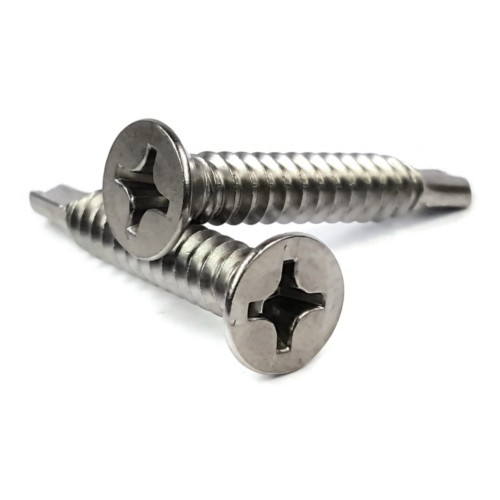

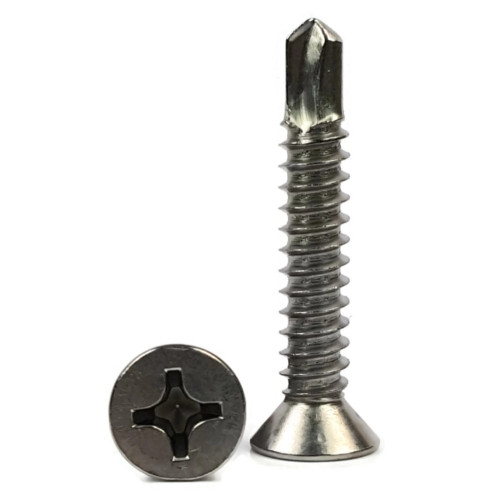

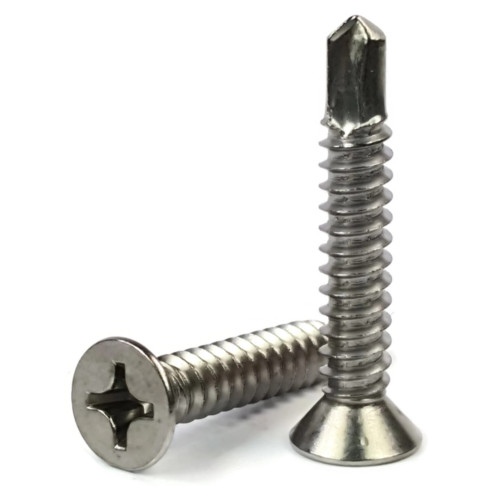

Sheet Metal Screws, Phillips Flat Head, Self Driller TEK 2, Stainless Steel 410, #10 x 3/4"
Diameter - Thread Pitch: #10-16
| Quantity | Unit price |
|---|---|
| To 99 |
$0.19*
|
| To 999 |
$0.10*
|
| From 1000 |
$0.08*
|
- ANSI: B18.6.4
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Phillips
- Head Type: Flat Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 410
- Hardness: 40 Rockwell C
- Head Height Max: 0.116
- Head Diameter: Max 0.385 - Min 0.340
- Head Style: Flat
- Length: 3/4"
- Material (Duplicate): 410 Stainless Steel
- Material: Stainless Steel
- Overall Head Height: Max 0.116 - Min 0.098
- Part Number: 710500848742
- Phillips Drive: #2
- Point Type: TEK
- Product Type: Self Drilling Screws
- Size Type: Regular
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 2
- Tensile PSI: 180,000 PSI Heat Treated
- Thread Diameter Major: (#10) 0.189"
- Thread Diameter Minor: (#10) 0.141"
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: #10-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Yield PSI: 150,000 PSI
Self Drilling Screws
- #10-16
- Fully threaded
- Hardened stainless steel to easily drill into materials
- Countersunk head that runs flush with the installation surface
- Self drilling (TEK) point
- 410 Stainless steel Phillips flat head self drilling screws are corrosion resistant and hardened to make drilling easier
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Also Known as TEK Screws, Drill Point, Self Drillers and Self Tapping
 |
| Self Drilling Roofing Screws |
No Matter what you may call them, a Self Drilling Screw is a time saver! Self Drilling screws feature a distinct flute or drill point at the end of each screw, as well as self tapping threads to turn a three-step installation into one quick job. The TEK drill point, as well as the self tapping threads of the screw eliminate the need for pilot hole drilling and hole tapping before screw installation. Self Drilling Screws are used primarily when fastening into steel or other metals, and are typically used to join materials like sheet metal.
Self Drilling Screws are primarily made of harder metals, or treated to make the material harder. Typical materials include hardened Zinc Plated Steel, and 410 Stainless Steel. This is to ensure that the drill point is a harder metal than that into which the screw is being installed. 410 Stainless Steel is ideal for Self Drilling Screws because it maintains the corrosion resistant properties of standard 18-8 Stainless, but can be heat-treated up to 40 Rockwell C. This is why self drilling screws are commonly used in roofing applications in combination with a watertight neoprene sealing washer, and for attaching metal roofing and siding panels to metal stud framing.
Not All TEK Screws are Created Equal
The distinguishing drill point of a Self Driller is what makes them unique, however these points come in different lengths for different applications. The Drill Point of one of these screws is given a TEK number, which can be determined by the length of the flute. TEK points are available in TEK 2, 3 and 4-5. The typical 25 to 16 gauge metal will require the use of a TEK 3, but 14 gauge and below will require TEK 4-5. This is why TEK 5 screws are used for fastening into structural steel. As a general rule of thumb, the higher the TEK number (the longer the drill point), the thicker the metal. It is fundamental that the point is high enough on the TEK scale to pierce the metal being drilled into.
 |
