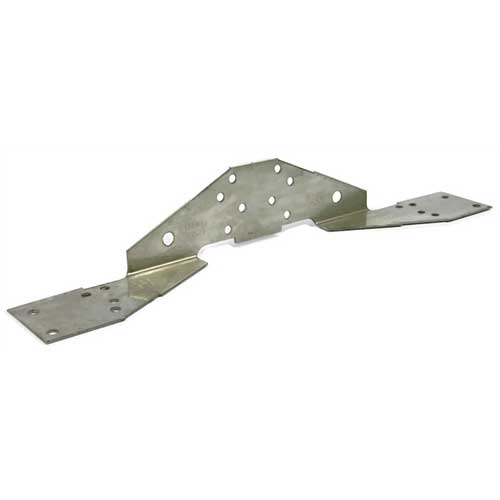

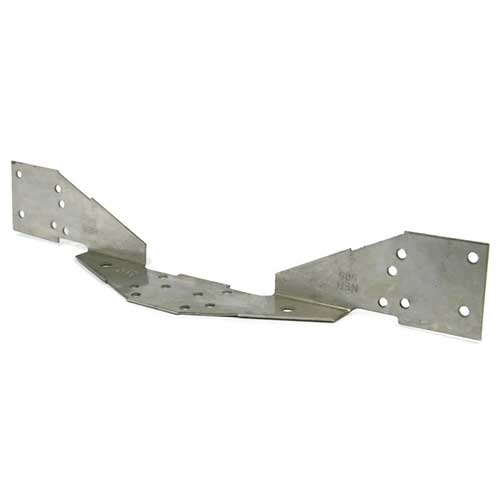

Hurricane Tie Framing Connectors, Stainless Steel 316, H2
316 Stainless Steel Framing Connectors for Rafters, Trusses, and Joists
| Quantity | Unit price |
|---|---|
| To 9 |
$9.37*
|
| From 10 |
$8.43*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Grade: 316
- Marine Grade: Yes
- Material: Stainless Steel
- Part Number: 787392606101
- Product Type: Framing Connectors
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

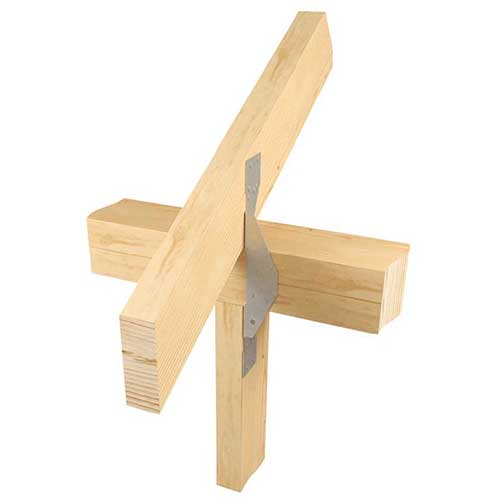

- H2 Hurricane Ties are installed on three different pieces of wood: a vertical post, the perpendicular top plate or wall plate, and a rafter
- H2 ties are installed across all three pieces of lumber, securing them together
- 316 Stainless Steel: ideal for applications in severe, harsh, or marine/saltwater environments
- Install 316 hurricane ties with only 316 stainless steel joist nails to maintain the manufacturer's warranty
An H2 Hurricane Tie, also known as a rafter or truss tie, is used for deck or roof framing to secure rafters, trusses, or joists to the wood framework. This is done to resist uplift and lateral forces, such as those that come from a hurricane or severe storm.
Please note: depending on pitch, birds-mouth notching may be required with some models to enable installers to fill all nail holes.

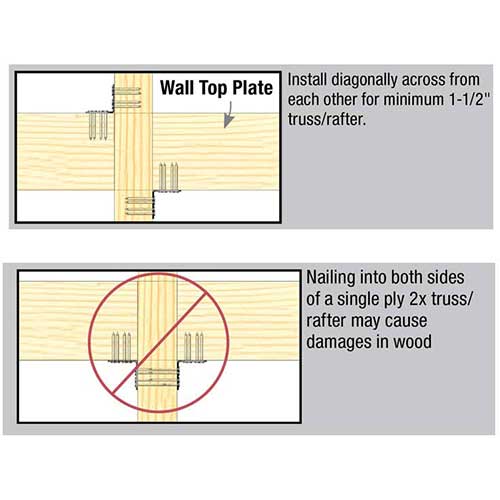

Caution: Do not install Hurricane ties into both sides of a given truss, rafter, or joist. Doing so may cause damages in the wood and risks collision of the nails. Instead, install them diagonally across from each other.
| Hurricane Tie: | H2 | ||
| Manufacturer Part Number: | RT10-SS | ||
| Simpson Part Number: | H2ASS | ||
| Uplift Load (Lbs.): | 495 | ||
| Lateral Load (Lbs.): | 160 | ||
| Steel Gauge: | 18 | ||
| Material: | 316 Stainless Steel | ||
Note: All allowable loads listed are for S-P-F (Spruce-Pine-Fir).
.JPG)
Product number:
6110-002-0002
