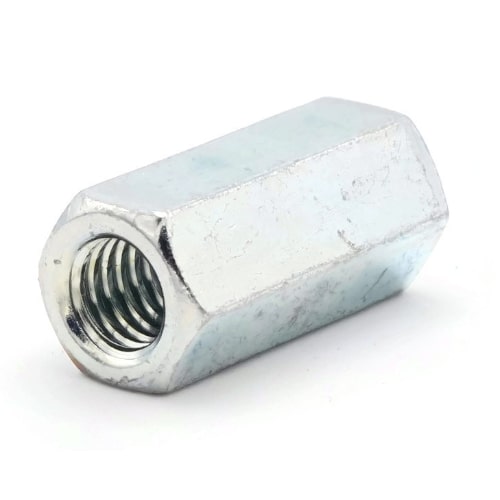

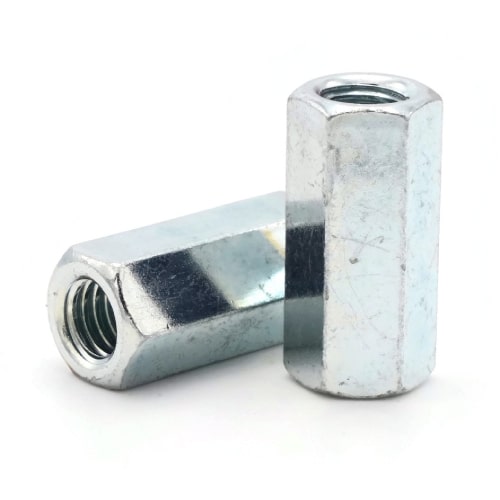

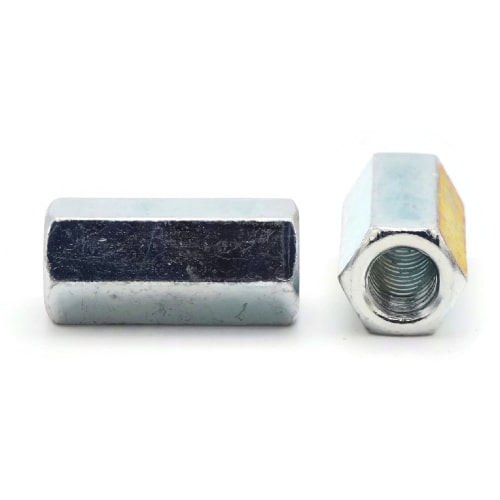

Coupling Nuts, Zinc Plated Steel, 1/4"-20 (3/8" F x 7/8" L)
Rod Coupling Nut, or Extension Nut, in CR+3 Zinc Plated A563 Grade A Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.29*
|
| To 999 |
$0.15*
|
| From 1000 |
$0.13*
|
- Across Flats (Width): 3/8"
- Color: Silver
- Condition: New
- Diameter: 1/4"
- Drive Style: External Hex
- Thread Direction: Right Hand
- Finish: Zinc Plated
- Fit: 2B
- Grade: A563 Grade A
- Internal Thread: 1/4/2020
- Length: 7/8"
- Material: Steel
- Part Number: 787392585666
- Product Type: Coupling Nut
- Size System: US
- Size Type: Regular
- Standards Met: REACH and RoHS
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Join two male threads
- Commonly used with threaded rod
- Also known as Extension Nuts
- Available in reducer versions to connect two different sizes
- Make longer rod assemblies from shorter lengths
- Fine or coarse thread
Nut Sizes
Flats
Length
1/4"-20
3/8"
7/8"
1/4"-20
7/16"
1-3/4"
5/16"-18
1/2"
1-3/4"
3/8"-16
9/16"
1-3/4"
7/16"-14
9/16"
1-3/4"
1/2"-13
11/16"
1-3/4"
5/8"-11
13/16"
2-1/8"
3/4"-10
1"
2-1/4"
3/4"-10
1-1/8"
2-1/4"
7/8"-9
1-1/4"
2-1/2"
1"-8
1-3/8"
2-3/4"
1-1/8"-7
1-1/2"
3"
1-1/4"-7
1-5/8"
3"
1-1/4"-7
1-7/8"
3-3/4"
1-1/2"-6
2"
4"
Product number:
1102-078-0002
